Dormer D753350.0X2.5 5985691 metal slitting saw with 350.00mm diameter and 2.5mm cutting width, 140-tooth coarse tooth profile. High Speed Steel (HSS) construction for cutting cast iron, non-ferrous metals, and steel. DORMER standard.
MODEL 5985691
$344.95 Each
Prices are subject to change
FREE SHIPPING ON ORDERS OVER $100
Select Quantity
Typically Ships in: 1 day
Returnable: Yes
Basic Standard
DORMER
Coating
Steam Tempered

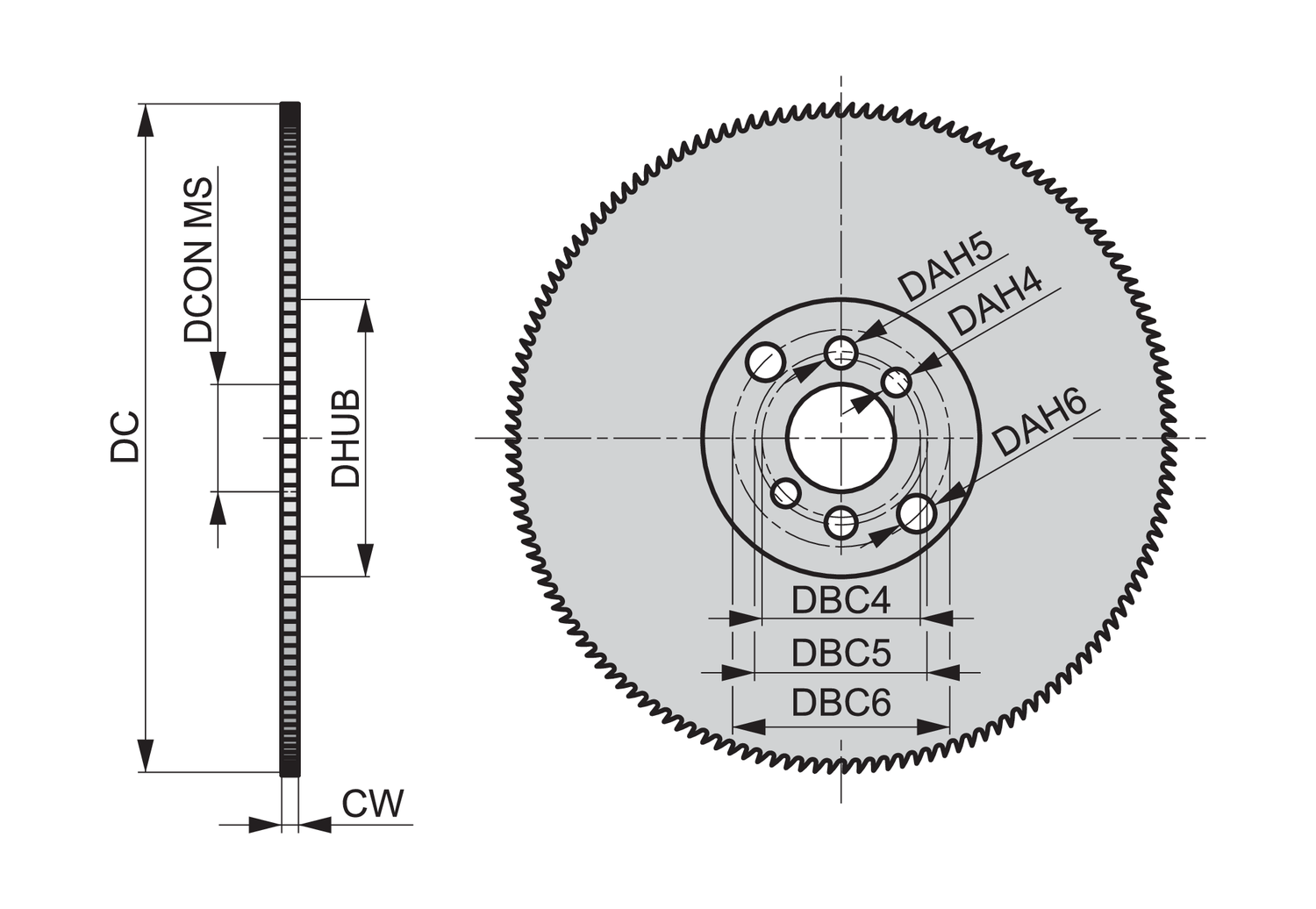

Connection diameter - inch (DCON MS)
1.2598
Connection diameter - millimeter (DCON MS)
32
Cutting diameter - inch (DC)
13.7795
Cutting diameter - millimeter (DC)
350
Cutting width - inch (CW)
0.0984
Cutting width - millimeter (CW)
2.5
Diameter access hole - millimeter (DAH)
8
EDP number
286005
Flute count (NOF)
140
Hub diameter - millimeter (DHUB)
120
Material
HSS
Material application
K - Cast iron, N - Non-ferrous metals, P - Steel and cast steel
MID number
5985691
Mill Profile
Coarse
Ordering code ANSI
D753350.0X2.5
Peripheral effective cutting edge count (ZEFP)
140
Radial rake angle (GAMF)
18
D753 coarse pitch slitting saws are ideal for thin section components and have a neutral tooth geometry to help control chips and prevent rubbing when slitting tubes and pipes.
They have a steam oxide finish, which ensures a clean and accurate finish every time by preventing workpiece material from sticking to the cutting edges of the saw.
Suitable for slitting and cutting in cast iron, steels, stainless steels and aluminium, you can be sure of great tool strength, wear resistance and performance, thanks to the premium High Speed steel used in manufacture
