Image for Illustration purposes only. Actual product may vary
Dormer D76380.0X3.0 5985771 Side and Face Milling Cutter 80.00 mm x 3.0 mm
MODEL 5985771
$377.33 Each
Prices are subject to change
FREE SHIPPING ON ORDERS OVER $100
Select Quantity
Typically Ships in: 1 day
Returnable: Yes
California Prop 65 warningBasic Standard
DIN 885 A
Coating
Bright

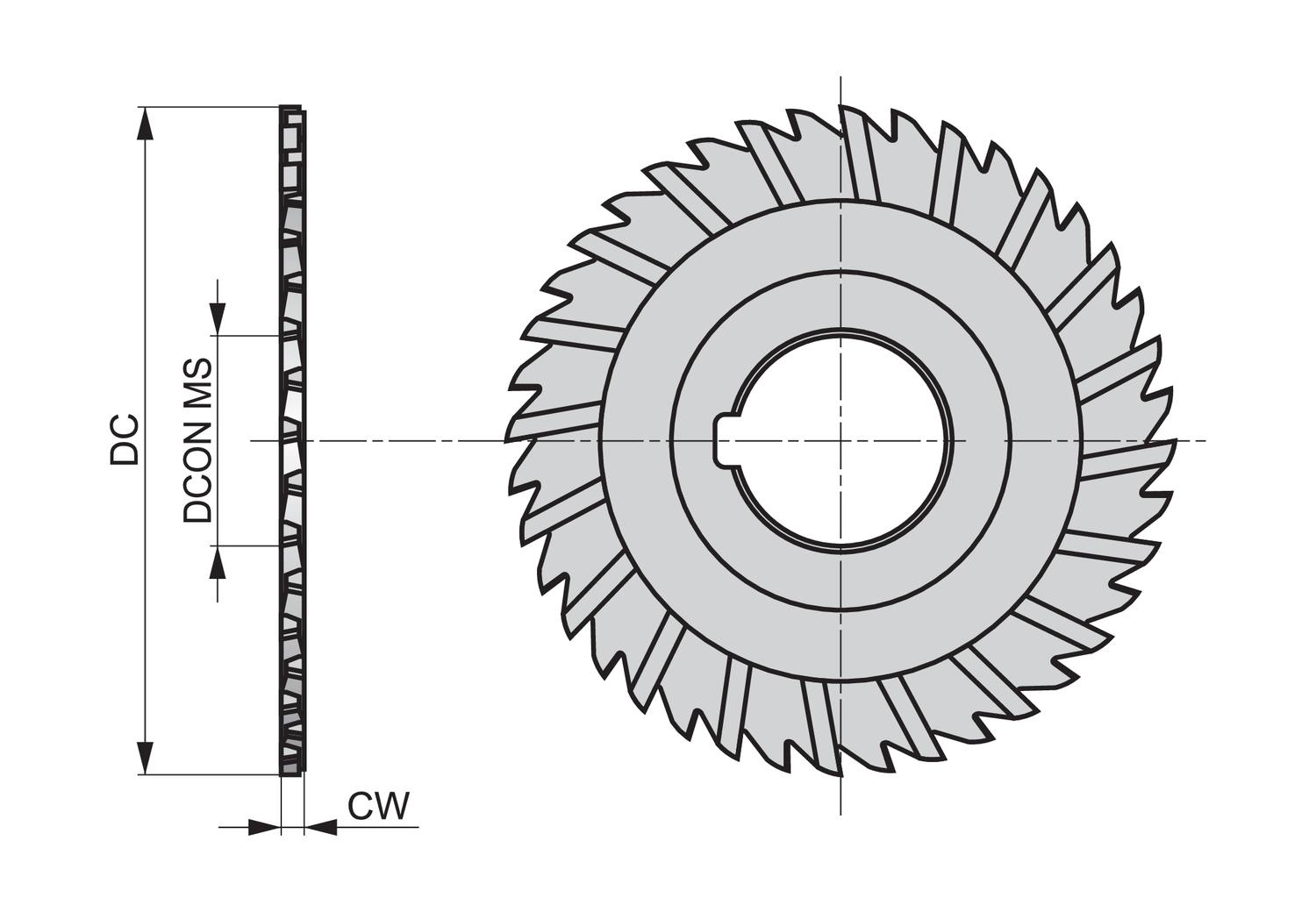

Connection diameter - inch (DCON MS)
1.063
Connection diameter - millimeter (DCON MS)
27
Cutting diameter - inch (DC)
3.1496
Cutting diameter - millimeter (DC)
80
Cutting diameter tolerance class (TCDC)
js16
Cutting width - inch (CW)
0.1181
Cutting width - millimeter (CW)
3
EDP number
78501
Flute count (NOF)
32
Flute helix angle (FHA)
15
Material
HSS-E
MID number
5985771
Mill Profile
Fine
Ordering code ANSI
D76380.0X3.0
Peripheral effective cutting edge count (ZEFP)
32
Primary use
Medium machining
Radial rake angle (GAMF)
10
Surface treatement
Original surface
D763 side and face bore cutter from Dormer have a fine pitch design, ideal for narrow, deep slots, where the staggered tooth geometry also helps control chips during milling.
They are manufactured from High Speed cobalt which gives excellent tool strength, performance and wear resistance and have a bright finish to stop workpiece material from sticking to the cutting edges of the tool, so you get a clean and accurate result.
D763 fine pitch side and face cutter are very versatile and can be used for horizontal milling slots in steels, stainless steels, aluminium and cast iron
