Dormer E5244-48NO3 5976071 UNF Machine Tap Straight Flute 3FL NO.4 X 48
MODEL 5976071
$24.46 Each
Prices are subject to change
FREE SHIPPING ON ORDERS OVER $100
Select Quantity
Typically Ships in: 1 day
Returnable: Yes
Basic Standard
ISO 529

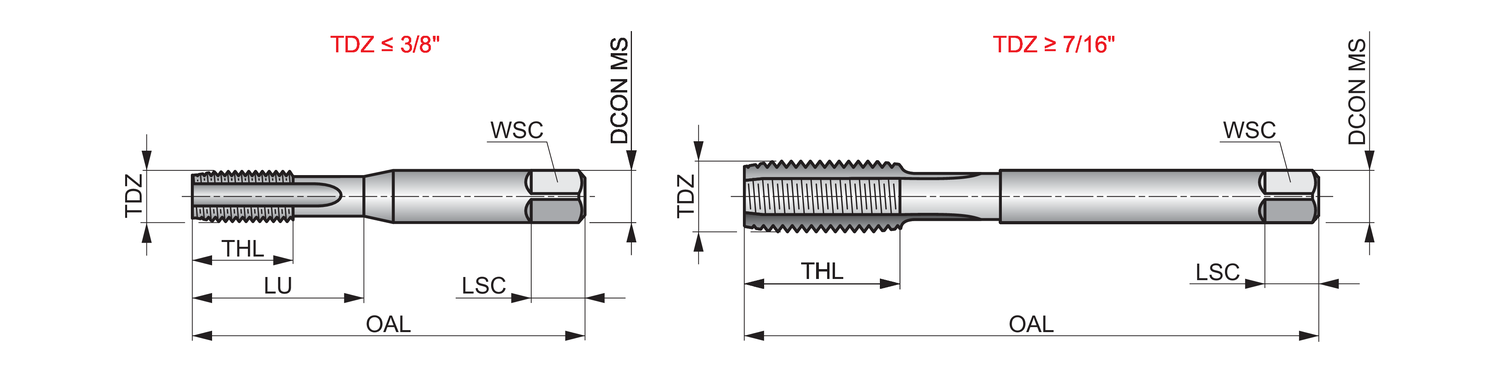

Clamping Length - millimeter (LSC)
5
Clamping width - fractional inch (WSC)
2.5
Clamping width - inch
0.0984
Coating
Bright
Connection diameter - inch (DCON MS)
0.124
Connection diameter - millimeter (DCON MS)
3.15
Coolant supply property (CSP)
2.845
EDP number
98028
Flute count (NOF)
3
Flute Geometry (FDC)
Straight Flute Geometry
Hand (Cutting direction)
Right
Material
HSS
Material application
N - Non-ferrous metals, P - Steel and cast steel
MID number
5976071
Ordering code ANSI
E5244-48NO3
Overall length - inch (OAL)
1.8898
Overall length - millimeter (OAL)
48
Premachined hole diameter - inch (PHD)
0.0945
Premachined hole diameter - millimeter (PHD)
2.4
Shank
Cylindrical shank with Square
Thread diameter - inch (TD)
0.112
Thread diameter - millimeter (TD)
2.845
Thread diameter size (TDZ)
4
Thread form (THFT)
UNF - Unified Fine
Threading length - inch (THL)
0.4921
Threading length - millimeter (THL)
12.5
Threads per inch (TPI)
48
Usable length (ULDR)
1.5
Usable Length - inch (LU)
0.4921
Usable Length - millimeter (LU)
12.5
Straight flute hand tap NO3 with a 2-3xP semi-bottoming lead, for Unified National Fine thread UNF 4 with 48 TPI and 2B class of fit, dimensions according to ISO 529 standard with 3.15mm shank and 2.5mm square drive, HSS with bright finish for 1.5xD through or blind hole threading in free machining and plain carbon steel and copper or copper alloys.
