Dormer E0413/4 5973932 G(BSP) Machine Tap Spiral Point 4FL 3/4 inch x 14
MODEL 5973932
$160.00 Each
Prices are subject to change
FREE SHIPPING ON ORDERS OVER $100
Select Quantity
Typically Ships in: 1 day
Returnable: Yes
California Prop 65 warningBasic Standard
DORMER-ISO

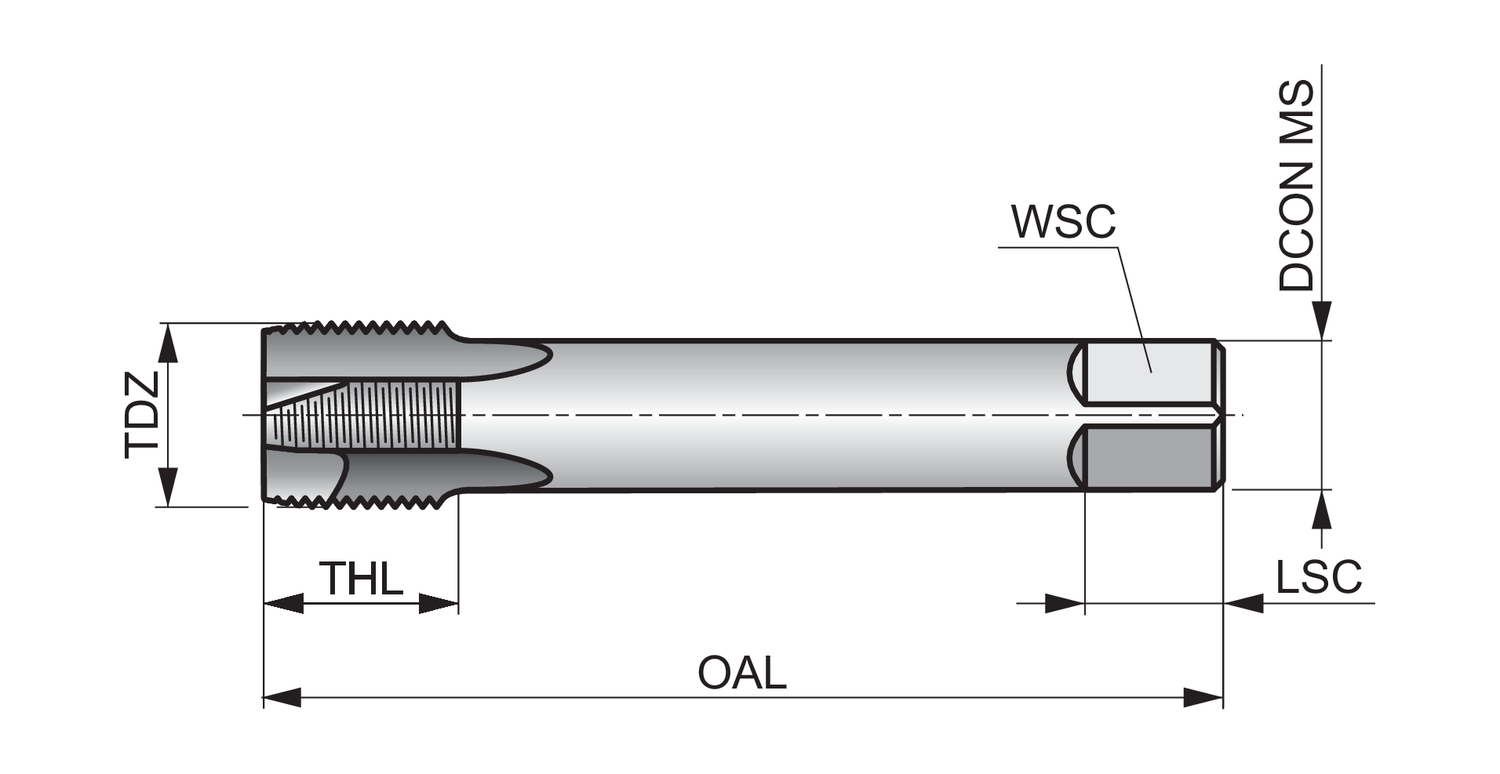

Clamping Length - millimeter (LSC)
20
Clamping width - fractional inch (WSC)
16
Clamping width - inch
0.6299
Coating
Steam Tempered
Connection diameter - inch (DCON MS)
20
Coolant supply property (CSP)
26.441
EDP number
569856
Flute count (NOF)
4
Flute Geometry (FDC)
Spiral Point Geometry
Hand (Cutting direction)
Right
Material
HSS-E-PM
Material application
P - Steel and cast steel
MID number
5973932
Ordering code ANSI
E0413/4
Overall length - inch (OAL)
5.5118
Overall length - millimeter (OAL)
140
Premachined hole diameter - inch (PHD)
0.9646
Premachined hole diameter - millimeter (PHD)
24.5
Shank
Cylindrical shank with Square
Tap chamfer style (TCS)
B 3.5 - 5
Thread diameter - inch (TD)
1.041
Thread diameter - millimeter (TD)
26.441
Thread diameter size (TDZ)
3/4
Thread form (THFT)
G - British standard pipe fastening - G series
Threading length - inch (THL)
1.1024
Threading length - millimeter (THL)
28
Threads per inch (TPI)
14
Usable length (ULDR)
2.5
Spiral point tap with chamfer form B with a 3.5-5xP plug lead, for British Standard Pipe thread G 3/4" with 14 TPI and Normal class of fit, dimensions according to DORMER-ISO standard with 20.0mm shank and 16.0mm square drive, powder metallurgical HSS-E with steam tempered surface finish for 2.5xD through hole threading in general purpose applications.
