Dormer E02810-24 5974023 UNC Machine Tap Spiral Flute 45° No.10 x 24
MODEL 5974023
$21.43 Each
Prices are subject to change
FREE SHIPPING ON ORDERS OVER $100
Select Quantity
Typically Ships in: 1 day
Returnable: Yes
California Prop 65 warningBasic Standard
ANSI
Clamping width - inch
0.152
Coating
Steam Tempered
Connection diameter - inch (DCON MS)
0.194
Connection diameter - millimeter (DCON MS)
4.93
Coolant supply property (CSP)
N25
EDP number
581681
Flute count (NOF)
3
Flute Geometry (FDC)
Spiral Flute Geometry
Flute helix angle (FHA)
45
Hand (Cutting direction)
Right
Material
HSS-E-PM
Material application
P - Steel and cast steel
MID number
5974023
Ordering code ANSI
E02810-24

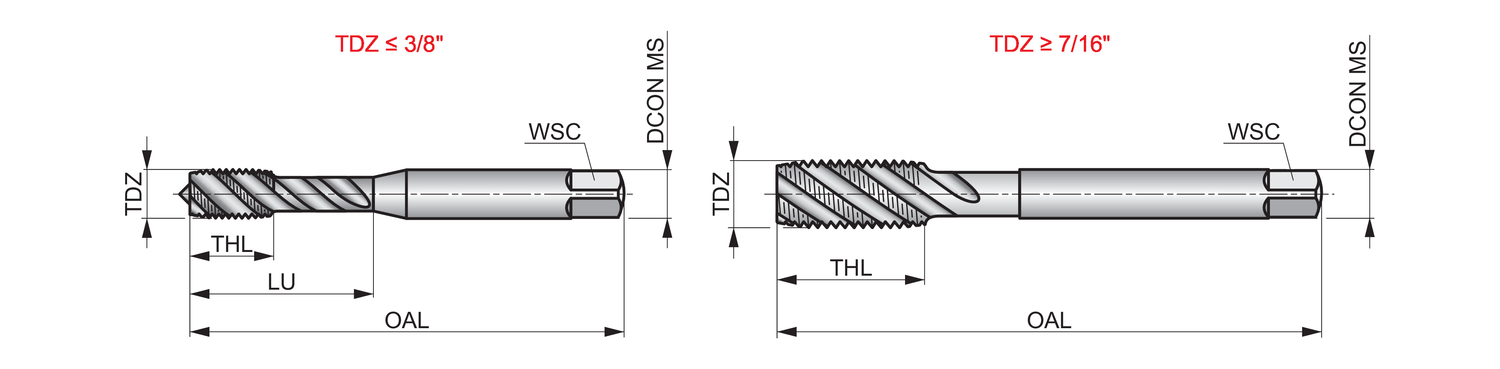

Overall length - fractional inch (OAL)
2.3/8
Overall length - inch (OAL)
2.375
Overall length - millimeter (OAL)
0.194
Premachined hole diameter - imperial (PHD)
N25
Premachined hole diameter - inch (PHD)
0.1535
Premachined hole diameter - millimeter (PHD)
45
Shank
Cylindrical shank with Square
Tap chamfer style (TCS)
C 2 - 3
Thread diameter - millimeter (TD)
3.9
Thread diameter size (TDZ)
10
Thread form (THFT)
UNC - Unified Coarse
Threading length - inch (THL)
0.265
Threads per inch (TPI)
24
Tolerance limit
H3
Usable length (ULDR)
2.5
Usable Length - inch (LU)
0.8434
Spiral flute tap with chamfer form C with a 2-3xP semi-bottoming lead, for Unified National Coarse thread UNC 10 with 24 TPI and 3B class of fit with H3 pitch diameter limits, dimensions according to ANSI standard with 0.1940" shank and 0.1520" square drive, powder metallurgical HSS-E with steam tempered surface finish and 45° helix angle for 2.5xD blind hole threading in general purpose applications.
