Image for Illustration purposes only. Actual product may vary
Dormer E2298-36 5976165 UNF Machine Tap Straight Flute DIN 371 3FL No.8 x 36
MODEL 5976165
$27.68 Each
Prices are subject to change
FREE SHIPPING ON ORDERS OVER $100
Select Quantity
Typically Ships in: 1 day
Returnable: Yes
California Prop 65 warningBasic Standard
DIN 371

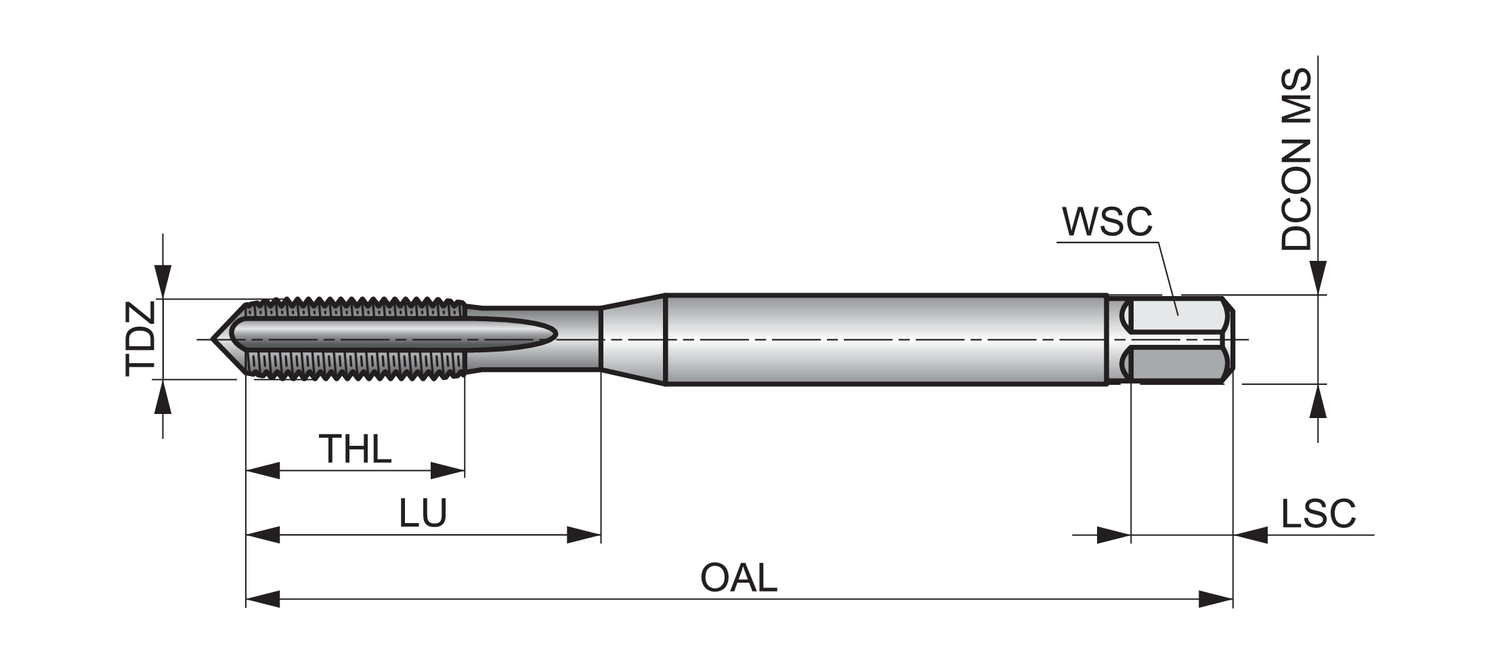

Clamping Length - millimeter (LSC)
6
Clamping width - fractional inch (WSC)
3.4
Clamping width - inch
0.1339
Coating
Bright
Connection diameter - inch (DCON MS)
0.1772
Connection diameter - millimeter (DCON MS)
4.5
Coolant supply property (CSP)
4.166
EDP number
86391
Flute count (NOF)
3
Flute Geometry (FDC)
Straight Flute Geometry
Hand (Cutting direction)
Right
Material
HSS-E-PM
Material application
N - Non-ferrous metals, P - Steel and cast steel
MID number
5976165
Ordering code ANSI
E2298-36
Overall length - inch (OAL)
2.4803
Overall length - millimeter (OAL)
63
Premachined hole diameter - inch (PHD)
0.1378
Premachined hole diameter - millimeter (PHD)
3.5
Shank
Cylindrical shank with Square
Tap chamfer style (TCS)
C 2 - 3
Thread diameter - inch (TD)
0.164
Thread diameter - millimeter (TD)
4.166
Thread diameter size (TDZ)
8
Thread form (THFT)
UNF - Unified Fine
Threading length - inch (THL)
0.4724
Threading length - millimeter (THL)
12
Threads per inch (TPI)
36
Usable length (ULDR)
1.5
Usable Length - inch (LU)
0.8268
Usable Length - millimeter (LU)
21
Straight flute tap with chamfer form C with a 2-3xP semi-bottoming lead, for Unified National Fine thread UNF 8 with 36 TPI and 2B class of fit, dimensions according to DIN 371 standard with 4.5mm shank and 3.4mm square drive, powder metallurgical HSS-E with bright finish for 1.5xD through or blind hole threading in free machining and plain carbon steel.
