Dormer E268M48X2.0 5975184 MF Machine Tap Straight Flute DIN 374 6FL M48 x 2.00 mm
MODEL 5975184
$529.93 Each
Prices are subject to change
FREE SHIPPING ON ORDERS OVER $100
Select Quantity
Typically Ships in: 1 day
Returnable: Yes
California Prop 65 warningBasic Standard
DIN 374

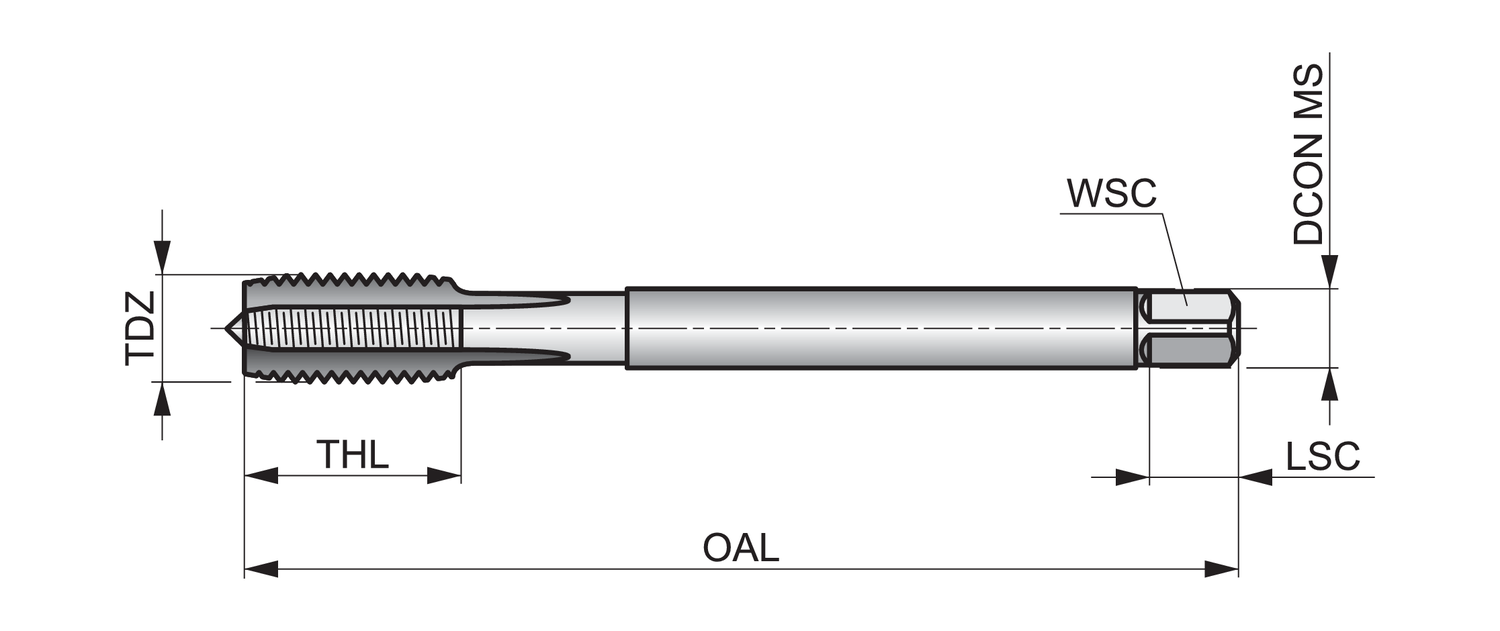

Clamping Length - millimeter (LSC)
32
Clamping width - fractional inch (WSC)
29
Clamping width - inch
1.1417
Coating
Bright
Connection diameter - inch (DCON MS)
1.4173
Connection diameter - millimeter (DCON MS)
36
EDP number
88913
Flute count (NOF)
6
Flute Geometry (FDC)
Straight Flute Geometry
Hand (Cutting direction)
Right
Material
HSS-E-PM
Material application
N - Non-ferrous metals, P - Steel and cast steel
MID number
5975184
Ordering code ANSI
E268M48X2.0
Overall length - inch (OAL)
7.4803
Overall length - millimeter (OAL)
190
Premachined hole diameter - inch (PHD)
1.811
Premachined hole diameter - millimeter (PHD)
46
Shank
Cylindrical shank with Square
Tap chamfer style (TCS)
C 2 - 3
Thread diameter size (TDZ)
48
Thread form (THFT)
MF - Metric fine
Thread pitch - inch (TP)
0.0787
Thread pitch - millimeter (TP)
2
Threading length - inch (THL)
1.2598
Threading length - millimeter (THL)
32
Usable length (ULDR)
1.5
Straight flute tap with chamfer form C with a 2-3xP semi-bottoming lead, for ISO-Metric Fine thread M48 with 2.00 mm pitch and 6H class of fit, dimensions according to DIN 374 standard with 36.0mm shank and 29.0mm square drive, powder metallurgical HSS-E with bright finish for 1.5xD through or blind hole threading in free machining and plain carbon steel.
