Dormer E299M4X.5 6290606 Machine Tap Spiral Point Yellow Shark 3FL M4 x 0.50 mm
MODEL 6290606
$31.46 Each
Prices are subject to change
FREE SHIPPING ON ORDERS OVER $100
Select Quantity
Typically Ships in: 1 day
Returnable: Yes
California Prop 65 warningBasic Standard
DIN 374

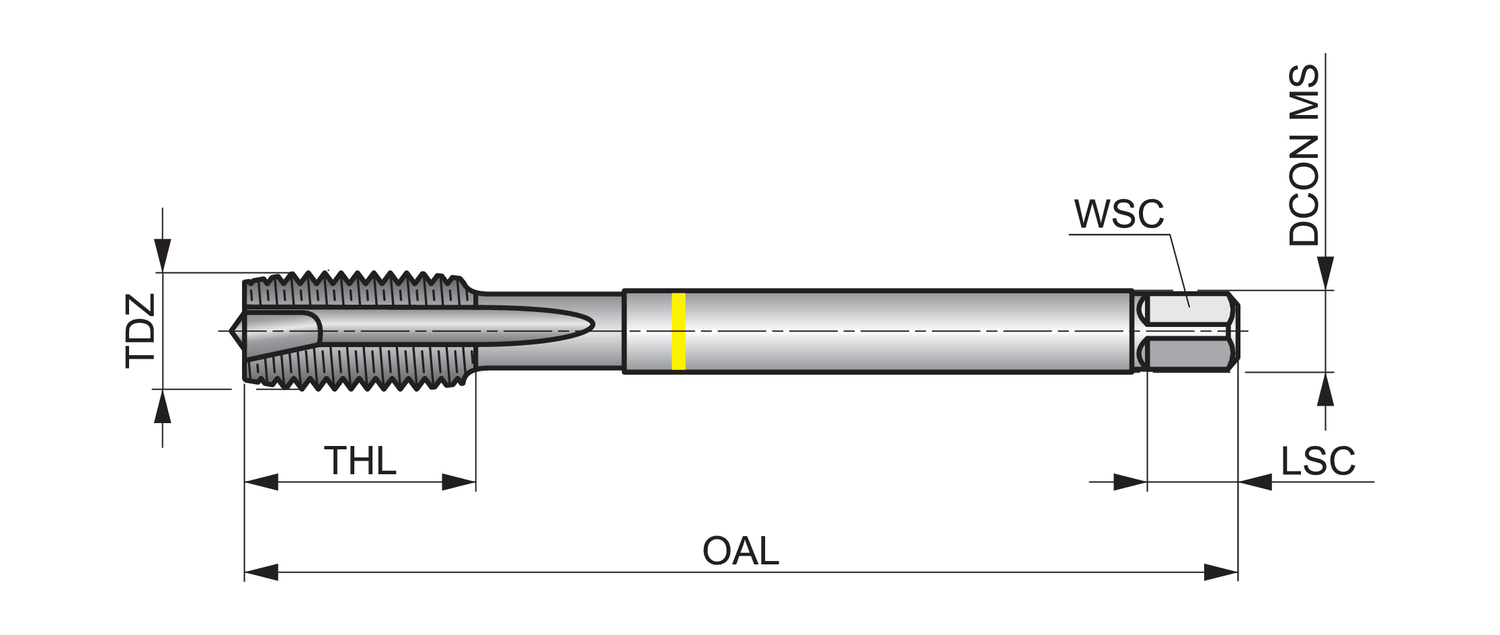

Clamping Length - millimeter (LSC)
5
Clamping width - fractional inch (WSC)
2.1
Clamping width - inch
0.0827
Coating
Flash Crome
Connection diameter - inch (DCON MS)
2.8
EDP number
46290606
Flute count (NOF)
3
Flute Geometry (FDC)
Spiral Point Geometry
Hand (Cutting direction)
Right
Material
HSS-E-PM
Material application
N - Non-ferrous metals, P - Steel and cast steel
MID number
6290606
Ordering code ANSI
E299M4X.5
Overall length - inch (OAL)
2.4803
Overall length - millimeter (OAL)
63
Premachined hole diameter - inch (PHD)
0.1378
Premachined hole diameter - millimeter (PHD)
3.5
Shank
Cylindrical shank with Square
Tap chamfer style (TCS)
B 3.5 - 5
Thread diameter size (TDZ)
4
Thread form (THFT)
MF - Metric fine
Thread pitch - inch (TP)
0.0197
Thread pitch - millimeter (TP)
0.5
Threading length - inch (THL)
0.4724
Threading length - millimeter (THL)
12
Usable length (ULDR)
2.5
Spiral point tap Yellow Shark with chamfer form B with a 3.5-5xP plug lead, for ISO-Metric Fine thread M4 with 0.50 mm pitch and 6H class of fit, dimensions according to DIN 374 standard with 2.8mm shank and 2.1mm square drive, powder metallurgical HSS-E with flash chorme surface finish for 2.5xD through hole threading in free machining and plain carbon steel and copper or copper alloys.
