Image for Illustration purposes only. Actual product may vary
Dormer EX2110-24 5974238 UNC Machine Tap Spiral Flute 45° 3FL No.10 x 24
MODEL 5974238
$37.40 Each
Prices are subject to change
FREE SHIPPING ON ORDERS OVER $100
Select Quantity
Typically Ships in: 1 day
Returnable: Yes
California Prop 65 warningBasic Standard
DIN 2184-1

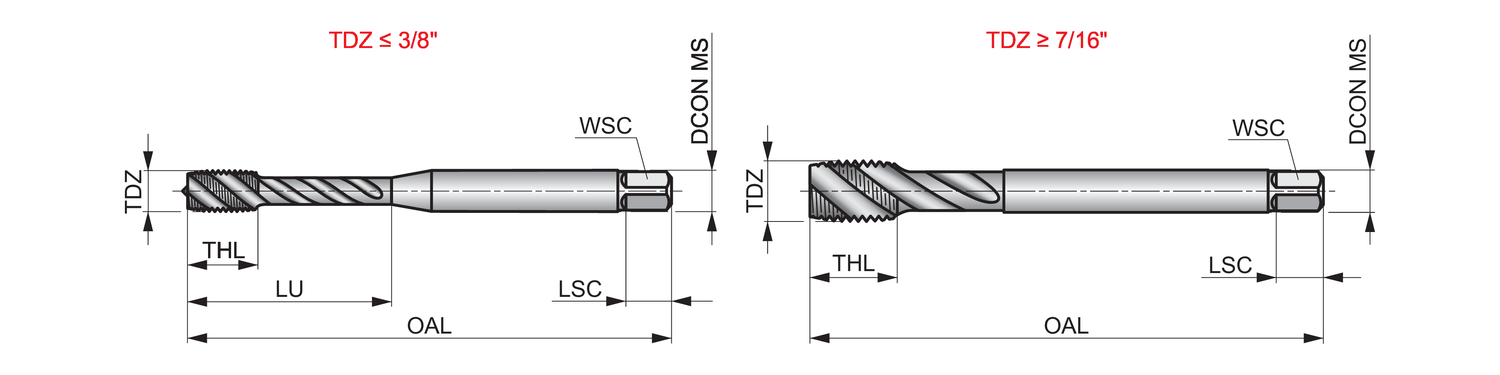

Clamping Length - millimeter (LSC)
8
Clamping width - inch
0.1929
Clamping width - millimeter (WSC)
4.826
Coating
Steam Tempered
Connection diameter - inch (DCON MS)
6
Connection diameter - millimeter (DCON MS)
4.9
EDP number
150450
Flute count (NOF)
3
Flute Geometry (FDC)
Spiral Flute Geometry
Flute helix angle (FHA)
45
Hand (Cutting direction)
Right
Material
HSS-E-PM
Material application
P - Steel and cast steel
MID number
5974238
Ordering code ANSI
EX2110-24
Overall length - inch (OAL)
2.7559
Overall length - millimeter (OAL)
70
Premachined hole diameter - inch (PHD)
0.1535
Premachined hole diameter - millimeter (PHD)
45
Shank
Cylindrical shank with Square
Tap chamfer style (TCS)
C 2 - 3
Thread diameter - inch (TD)
0.19
Thread diameter - millimeter (TD)
3.9
Thread diameter size (TDZ)
10
Thread form (THFT)
UNC - Unified Coarse
Threading length - inch (THL)
0.315
Threading length - millimeter (THL)
8
Threads per inch (TPI)
24
Tolerance limit
H3
Usable length (ULDR)
2.5
Usable Length - inch (LU)
0.9843
Usable Length - millimeter (LU)
25
Spiral flute tap with chamfer form C with a 2-3xP semi-bottoming lead, for Unified National Coarse thread UNC 10 with 24 TPI and 2B class of fit, dimensions according to DIN 2184-1 standard with 6.0mm shank and 4.9mm square drive, powder metallurgical HSS-E with steam tempered surface finish and 45° helix angle for 2.5xD blind hole threading in general purpose applications.
