Dormer EX403/4 5974222 G(BSP) Machine Tap Spiral Flute 45° 4FL 3/4 inch x 14

Name: Dormer EX403/4 5974222 G(BSP) Machine Tap Spiral Flute 45° 4FL 3/4 inch x 14
Brand: Dormer Pramet
Price: 185.26 USD
Availability: InStock
Rating: 5.0 (3 reviews)

MODEL 5974222

BRAND

Dormer Pramet

SKU

6082837

WEIGHT

0.695 lb

UOM

each

$185.26 Each

Prices are subject to change

FREE SHIPPING ON ORDERS OVER $100

Select Quantity

GET A QUOTE

Typically Ships in: 1 day

Returnable: Yes

Basic Standard

DIN 5156

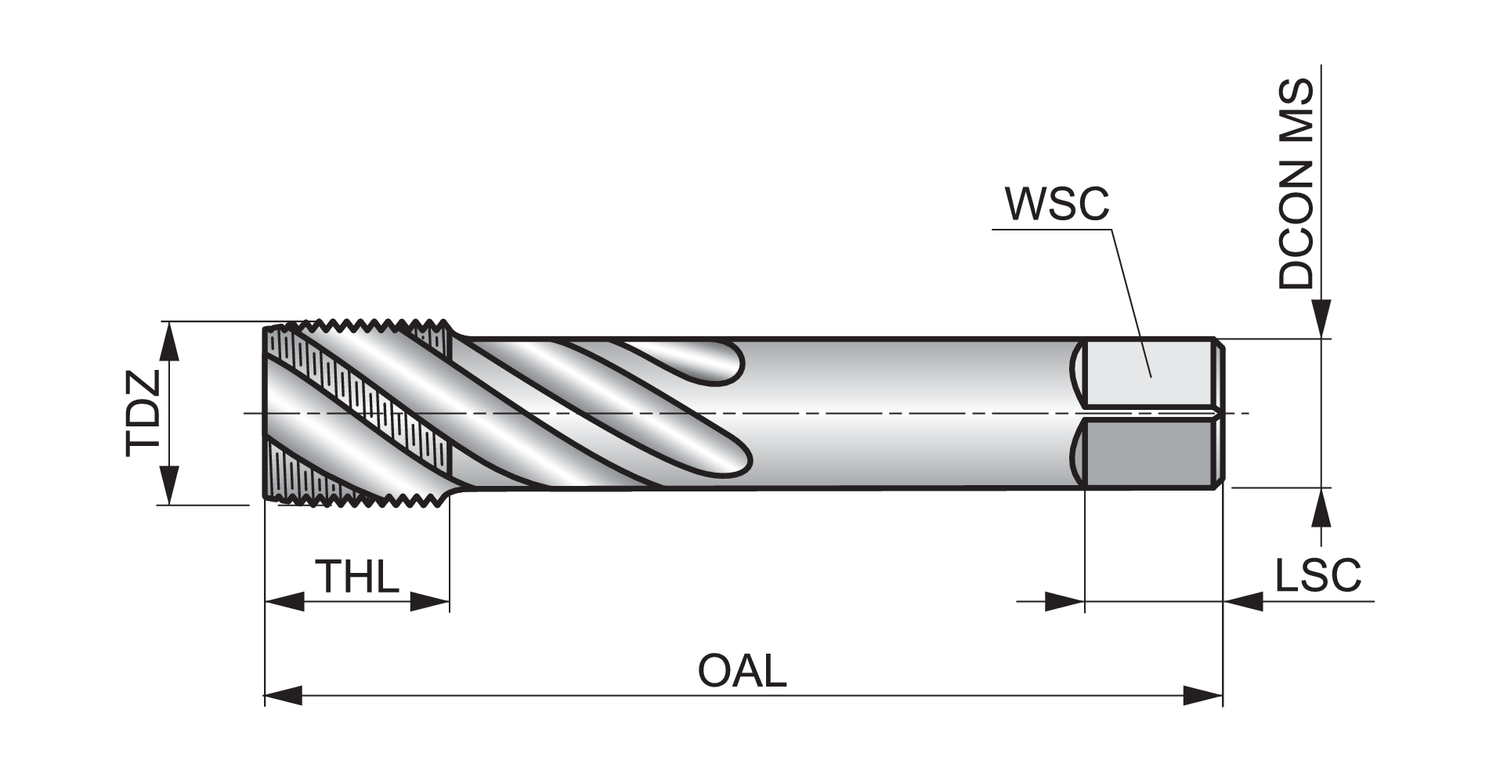

Clamping Length - millimeter (LSC)

Clamping width - inch

0.6299

Clamping width - millimeter (WSC)

26.441

Coating

Bright

Connection diameter - inch (DCON MS)

Connection diameter - millimeter (DCON MS)

EDP number

168592

Flute count (NOF)

Flute Geometry (FDC)

Spiral Flute Geometry

Flute helix angle (FHA)

Hand (Cutting direction)

Right

Material

HSS-E-PM

Material application

N - Non-ferrous metals, P - Steel and cast steel

MID number

5974222

Ordering code ANSI

EX403/4

Overall length - inch (OAL)

5.5118

Overall length - millimeter (OAL)

140

Premachined hole diameter - inch (PHD)

0.9646

Premachined hole diameter - millimeter (PHD)

Shank

Cylindrical shank with Square

Tap chamfer style (TCS)

C 2 - 3

Thread diameter - inch (TD)

1.041

Thread diameter - millimeter (TD)

24.5

Thread diameter size (TDZ)

3/4

Thread form (THFT)

G - British standard pipe fastening - G series

Threading length - inch (THL)

0.7874

Threading length - millimeter (THL)

Threads per inch (TPI)

Usable length (ULDR)

2.5

Spiral flute tap with chamfer form C with a 2-3xP semi-bottoming lead, for British Standard Pipe thread G 3/4" with 14 TPI and Normal class of fit, dimensions according to DIN 5156 standard with 20.0mm shank and 16.0mm square drive, powder metallurgical HSS-E with bright finish and 45° helix angle for 2.5xD blind hole threading in free machining and plain carbon steel and wrought or cast aluminium.
