Image for Illustration purposes only. Actual product may vary
Dormer F108M14 5978535 M Gun Nosed Die ISO 2568 M14 x 2.00 mm
MODEL 5978535
$90.98 Each
Prices are subject to change
FREE SHIPPING ON ORDERS OVER $100
Select Quantity
Typically Ships in: 1 day
Returnable: Yes
California Prop 65 warningBasic Standard
ISO 2568

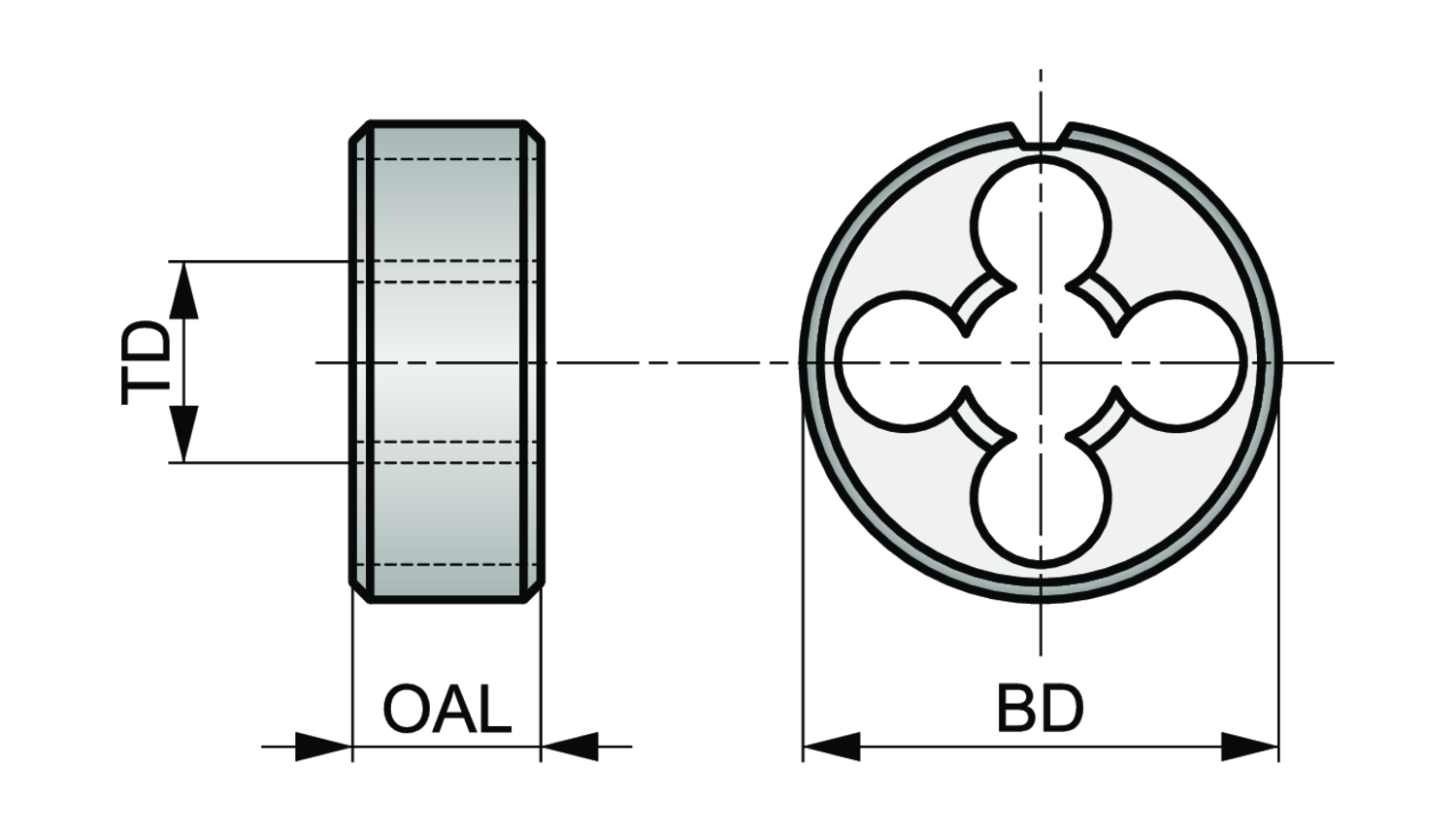

Body diameter - inch (BD)
1.4961
Body diameter - millimeter (BD)
38
Coating
Bright
Die chamfer to pitch ratio (DCPR)
2.25
EDP number
381373
Hand (Cutting direction)
Right
Material
HSS-E
Material application
K - Cast iron, M - Stainless steel, N - Non-ferrous metals, P - Steel and cast steel
MID number
5978535
Ordering code ANSI
F108M14
Overall length - inch (OAL)
0.5512
Overall length - millimeter (OAL)
14
Thread diameter - millimeter (TD)
14
Thread diameter size (TDZ)
14
Thread form (THFT)
M - Metric coarse
Thread pitch - millimeter (TP)
2
Solid round die with a gun nose, for ISO-Metric thread M14 with 2.00 mm pitch and 6g class of fit, dimensions according to ISO 2568 standard with 38mm outside diameter and 14mm thickness, cobalt based HSS-E with lapped surface finish for threading in alloy and tool steel, martensitic and austenitic stainless steel and austenitic or austempered ductile cast-iron.
