Image for Illustration purposes only. Actual product may vary
Dormer F110M5X.5 5977778 MF Gun Nosed Die ISO 2568 M5 x 0.50 mm
MODEL 5977778
$55.32 Each
Prices are subject to change
FREE SHIPPING ON ORDERS OVER $100
Select Quantity
Typically Ships in: 1 day
Returnable: Yes
Basic Standard
ISO 2568

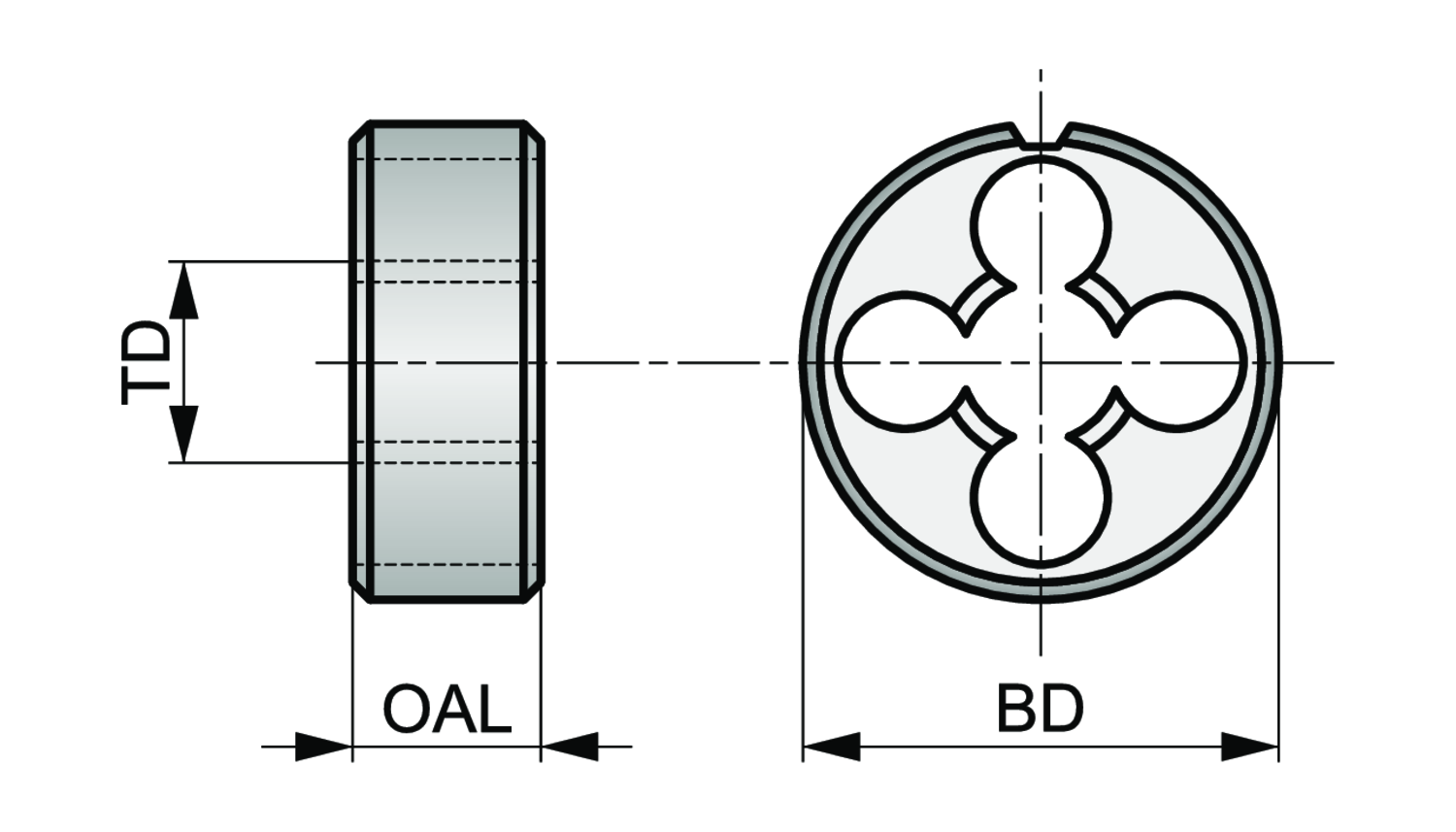

Body diameter - inch (BD)
0.7874
Body diameter - millimeter (BD)
20
Coating
Bright
Die chamfer to pitch ratio (DCPR)
1.75
EDP number
104293
Hand (Cutting direction)
Right
Material
HSS
Material application
K - Cast iron, M - Stainless steel, N - Non-ferrous metals, P - Steel and cast steel
MID number
5977778
Ordering code ANSI
F110M5X.5
Overall length - inch (OAL)
0.1969
Overall length - millimeter (OAL)
5
Thread diameter - millimeter (TD)
5
Thread diameter size (TDZ)
5
Thread form (THFT)
MF - Metric fine
Thread pitch - millimeter (TP)
0.5
Solid round die with a gun nose, for ISO-Metric Fine thread M5 with 0.50 mm pitch and 6g class of fit, dimensions according to ISO 2568 standard with 20mm outside diameter and 5mm thickness, HSS with lapped surface finish for threading in free machining and plain carbon steel, ferritic stainless steel and gray, malleable, ductile and compacted graphite cast-iron.
