Dormer F1201/2 5977813 UNC Gun Nosed Die ISO 2568 1/2 inch x 13
MODEL 5977813
$77.59 Each
Prices are subject to change
FREE SHIPPING ON ORDERS OVER $100
Select Quantity
Typically Ships in: 1 day
Returnable: Yes
Basic Standard
ISO 2568

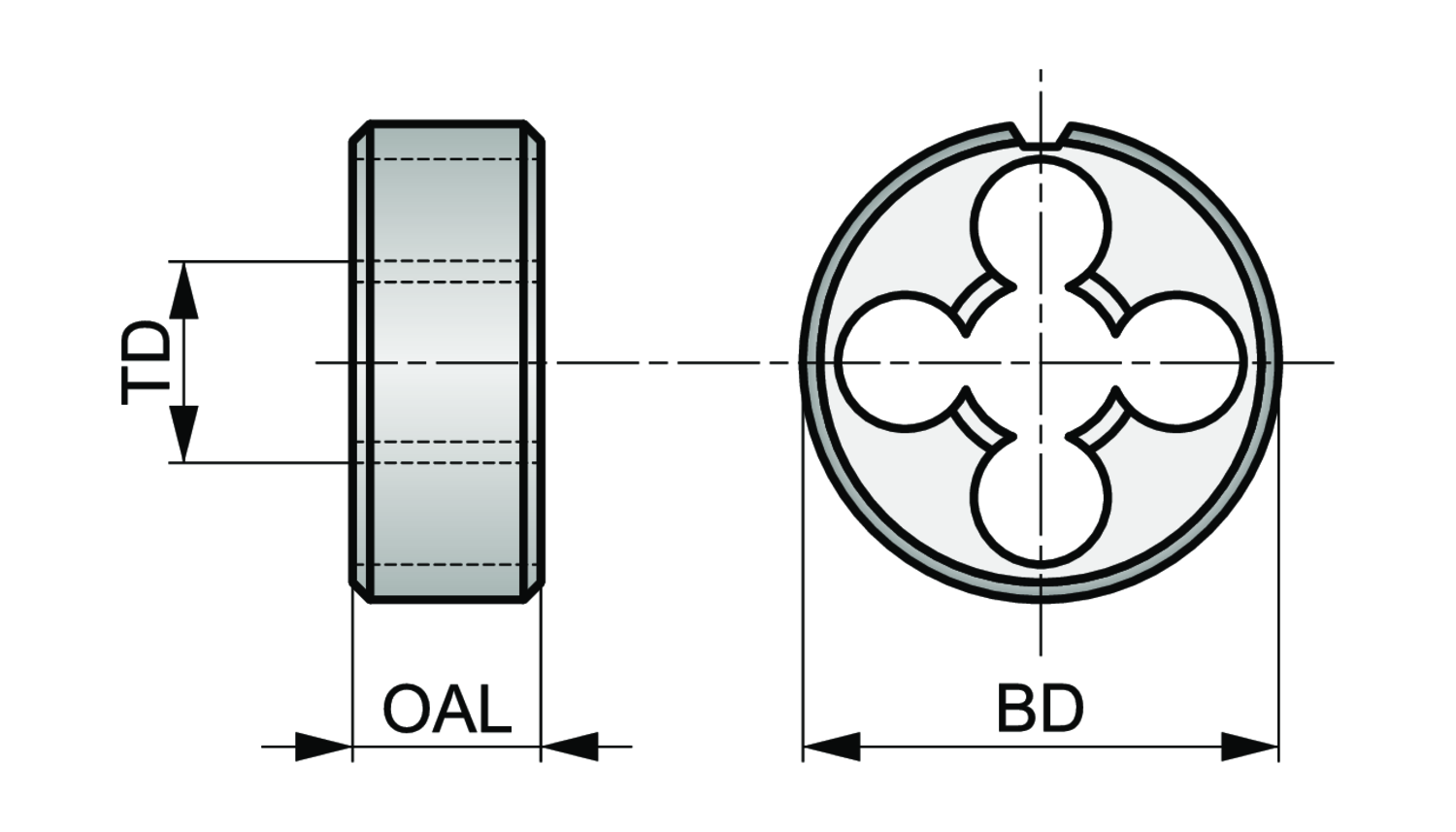

Body diameter - inch (BD)
1.4961
Body diameter - millimeter (BD)
38
Coating
Bright
Die chamfer to pitch ratio (DCPR)
1.75
EDP number
104361
Hand (Cutting direction)
Right
Material application
K - Cast iron, M - Stainless steel, N - Non-ferrous metals, P - Steel and cast steel
Material code (BMC)
HSS
MID number
5977813
Ordering code ANSI
F1201/2
Overall length - inch (OAL)
0.5512
Overall length - millimeter (OAL)
14
Thread diameter - millimeter (TD)
12.7
Thread diameter size (TDZ)
1/2
Thread form (THFT)
UNC - Unified Coarse
Threads per inch (TPI)
13
Solid round die with a gun nose, for Unified National Coarse thread UNC 1/2" with 13 TPI and 2A class of fit, dimensions according to ISO 2568 standard with 38mm outside diameter and 14mm thickness, HSS with lapped surface finish for threading in free machining and plain carbon steel, ferritic stainless steel and gray, malleable, ductile and compacted graphite cast-iron.
