Dormer F310M10X1.0X1 5978538 MF Adjustable Dies M10 x 1.00 mm
MODEL 5978538
$111.54 Each
Prices are subject to change
FREE SHIPPING ON ORDERS OVER $100
Select Quantity
Typically Ships in: 1 day
Returnable: Yes
Basic Standard
BS 1127:1950

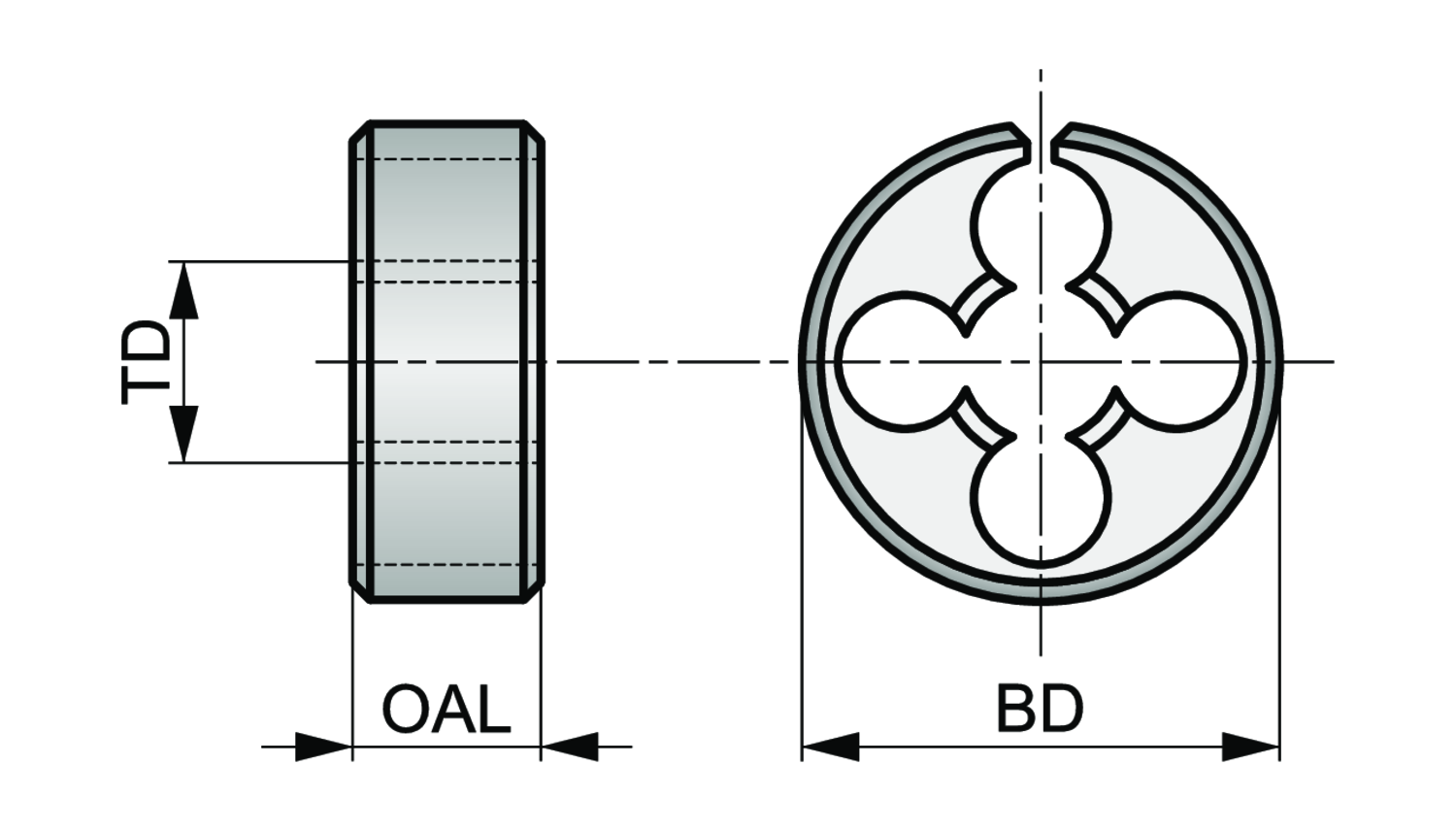

Body diameter - fractional inch (BD)
1"
Body diameter - inch (BD)
1
Body diameter - millimeter (BD)
25.4
Coating
Bright
Die chamfer to pitch ratio (DCPR)
1.75
EDP number
206003
Hand (Cutting direction)
Right
Material application
K - Cast iron, M - Stainless steel, N - Non-ferrous metals, P - Steel and cast steel
Material code (BMC)
HSS
MID number
5978538
Ordering code ANSI
F310M10X1.0X1
Overall length - fractional inch (OAL)
3/8
Overall length - inch (OAL)
0.375
Overall length - millimeter (OAL)
9.53
Thread diameter - millimeter (TD)
10
Thread diameter size (TDZ)
10
Thread form (THFT)
MF - Metric fine
Thread pitch - millimeter (TP)
1
Adjustable circular split die, for ISO-Metric Fine thread M10 with 1.00 mm pitch, to reduce the torque when cutting by hand split dies can be adjusted in small increments up to a maximum of approximately 0.15mm, dimensions according to BS 1127:1950 standard with 1" outside diameter and 3/8" thickness, HSS with bright finish for threading in free machining and plain carbon steel, ferritic stainless steel and gray, malleable, ductile and compacted graphite cast-iron.
