Dormer F312M8X1.0 5977964 MF Dienuts BS 1127:1950 M8 x 1.00 mm
MODEL 5977964
$60.06 Each
Prices are subject to change
FREE SHIPPING ON ORDERS OVER $100
Select Quantity
Typically Ships in: 1 day
Returnable: Yes
Basic Standard
BS 1127:1950
Coating
Bright
Die chamfer to pitch ratio (DCPR)
1.75

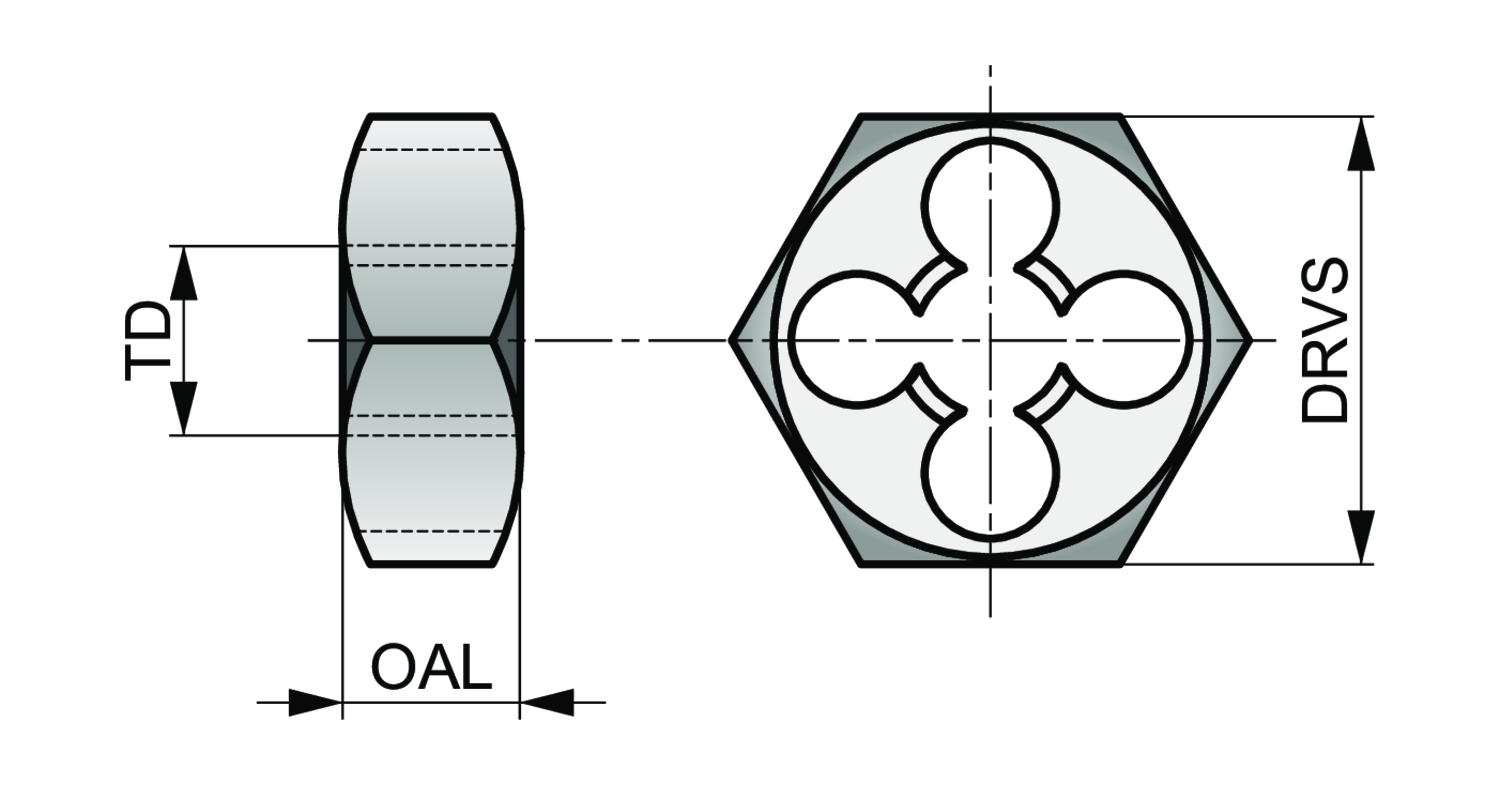

Drive size - inch (DRVS)
0.82
Drive size - millimeter (DRVS)
20.83
EDP number
206348
Hand (Cutting direction)
Right
Material
HSS
Material application
K - Cast iron, M - Stainless steel, N - Non-ferrous metals, P - Steel and cast steel
MID number
5977964
Ordering code ANSI
F312M8X1.0
Overall length - fractional inch (OAL)
5/16
Overall length - millimeter (OAL)
7.94
Thread diameter - millimeter (TD)
8
Thread diameter size (TDZ)
8
Thread form (THFT)
MF - Metric fine
Thread pitch - millimeter (TP)
1
Hexagon die nut, for ISO-Metric Fine thread M8 with 1.00 mm pitch and 6g class of fit, dimensions according to BS 1127:1950 standard with 0.8200" width across flat and 5/16" thickness, HSS with bright finish for repairing damaged thread in free machining and plain carbon steel, ferritic stainless steel and gray, malleable, ductile and compacted graphite cast-iron.
