Dormer F3301.1/4X3 5978881 UNF Adjustable Dies 1.1/4 inch x 12
MODEL 5978881
$380.38 Each
Prices are subject to change
FREE SHIPPING ON ORDERS OVER $100
Select Quantity
Typically Ships in: 1 day
Returnable: Yes
Basic Standard
BS 1127:1950

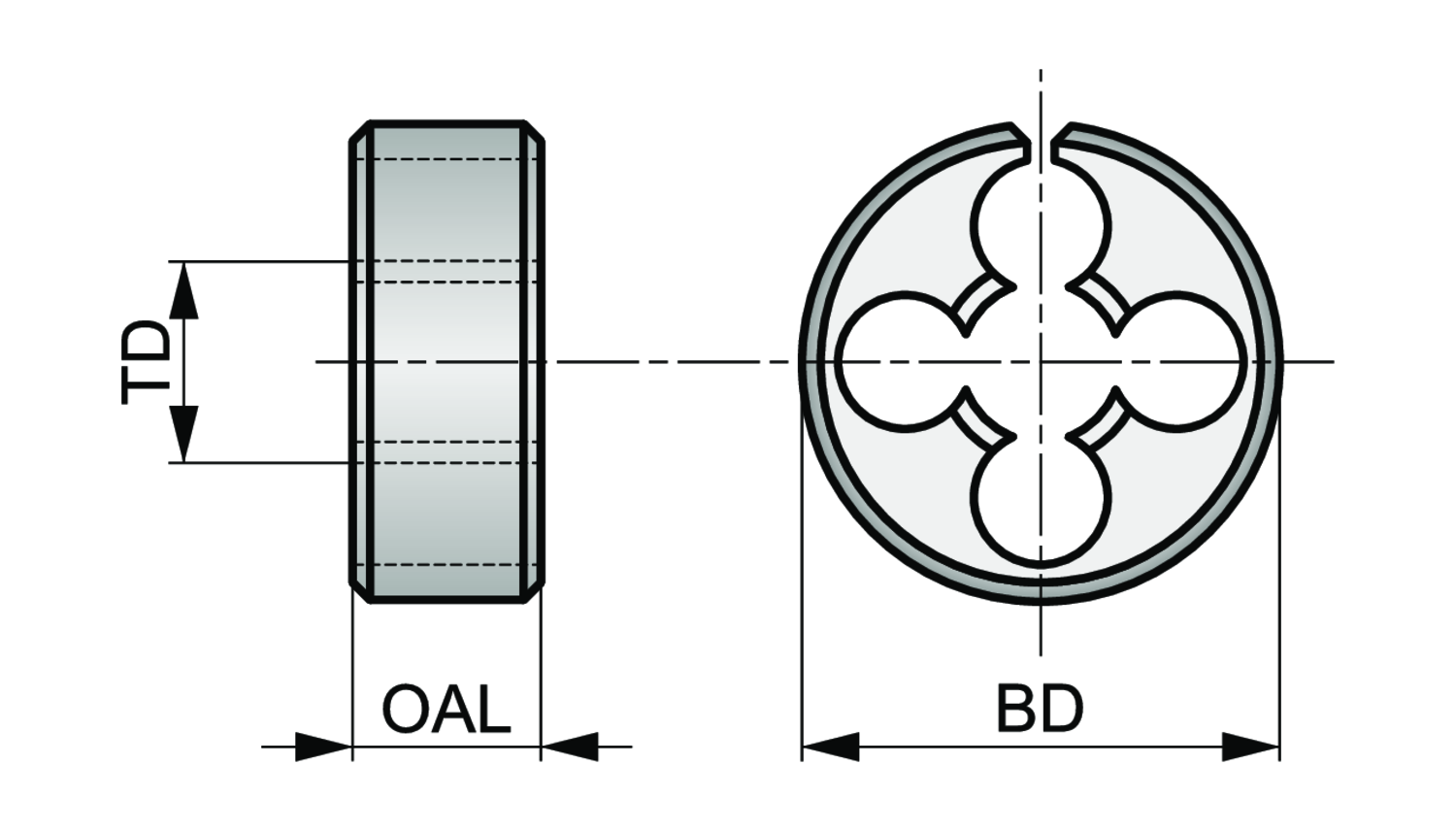

Body diameter - fractional inch (BD)
3"
Body diameter - millimeter (BD)
76.2
Coating
Bright
Die chamfer to pitch ratio (DCPR)
1.75
EDP number
207680
Hand (Cutting direction)
Right
Material
HSS
Material application
K - Cast iron, M - Stainless steel, N - Non-ferrous metals, P - Steel and cast steel
MID number
5978881
Ordering code ANSI
F3301.1/4X3
Overall length - fractional inch (OAL)
7/8
Overall length - millimeter (OAL)
22.23
Thread diameter - millimeter (TD)
38.1
Thread diameter size (TDZ)
1.1/2
Thread form (THFT)
UNF - Unified Fine
Threads per inch (TPI)
12
Adjustable circular split die, for Unified National Fine thread UNF 1.1/4" with 12 TPI, to reduce the torque when cutting by hand split dies can be adjusted in small increments up to a maximum of approximately 0.006", dimensions according to BS 1127:1950 standard with 3" outside diameter and 7/8" thickness, HSS with bright finish for threading in free machining and plain carbon steel, ferritic stainless steel and gray, malleable, ductile and compacted graphite cast-iron.
