Dormer F3703/8X1.1/2 5978464 G(BSP) Adjustable Dies 3/8 inch x 19
MODEL 5978464
$80.08 Each
Prices are subject to change
FREE SHIPPING ON ORDERS OVER $100
Select Quantity
Typically Ships in: 1 day
Returnable: Yes
Basic Standard
BS 1127:1950

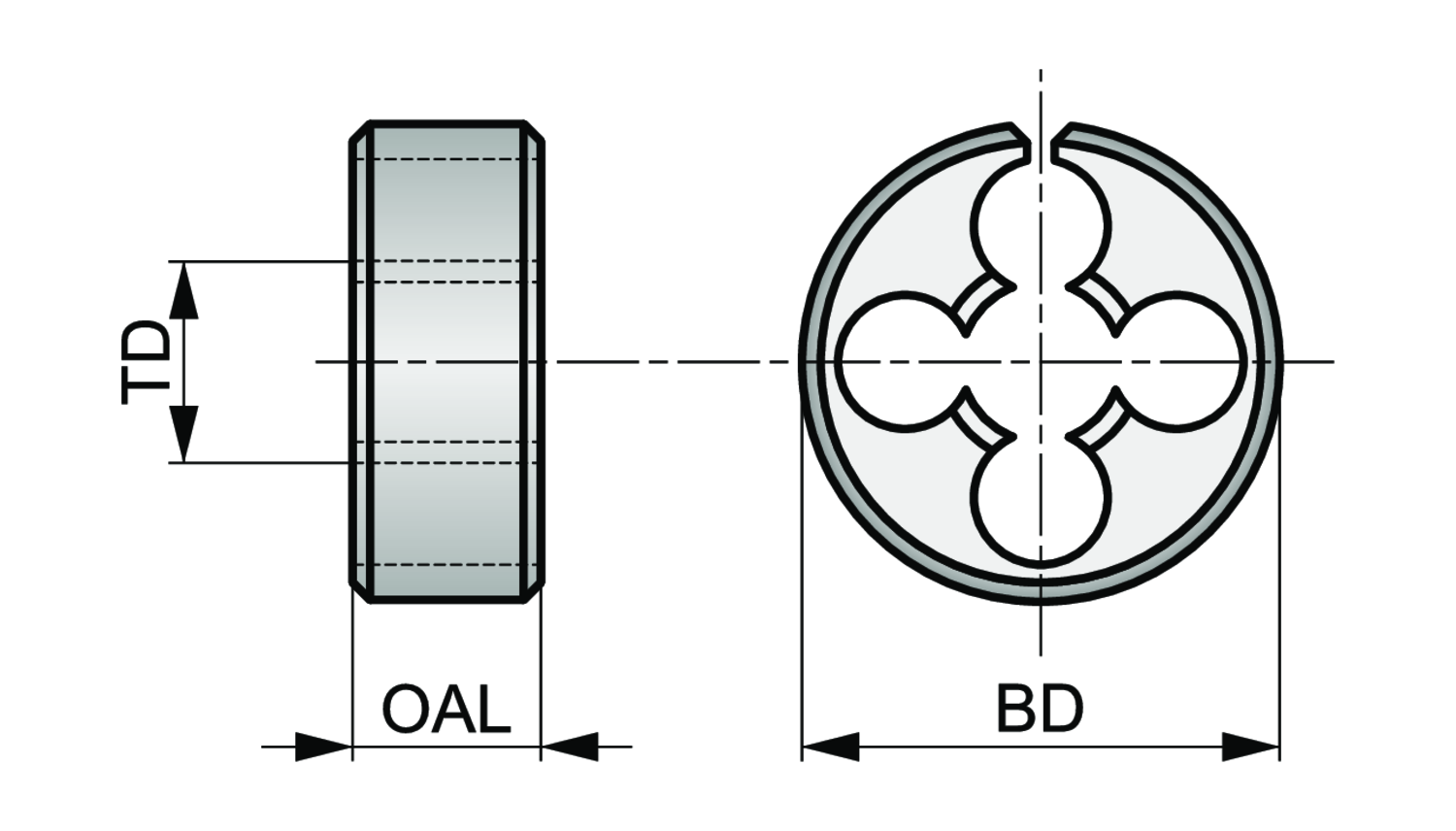

Body diameter - fractional inch (BD)
1.1/2
Body diameter - inch (BD)
1.5
Body diameter - millimeter (BD)
38.1
Coating
Bright
Die chamfer to pitch ratio (DCPR)
1.75
EDP number
209349
Hand (Cutting direction)
Right
Material application
K - Cast iron, M - Stainless steel, N - Non-ferrous metals, P - Steel and cast steel
Material code (BMC)
HSS
MID number
5978464
Ordering code ANSI
F3703/8X1.1/2
Overall length - fractional inch (OAL)
1/2
Overall length - inch (OAL)
0.5
Overall length - millimeter (OAL)
12.7
Thread diameter - millimeter (TD)
16.66
Thread diameter size (TDZ)
3/8
Thread form (THFT)
G - British standard pipe fastening - G series
Threads per inch (TPI)
19
Adjustable circular split die, for British Standard Pipe thread G 3/8" with 19 TPI, to reduce the torque when cutting by hand split dies can be adjusted in small increments up to a maximum of approximately 0.006", dimensions according to BS 1127:1950 standard with 1.1/2" outside diameter and 1/2" thickness, HSS with bright finish for threading in free machining and plain carbon steel, ferritic stainless steel and gray, malleable, ductile and compacted graphite cast-iron.
