Dormer J2056.5X1.25 6821297 Thread Mill Spiral Flute 10° Oil Feed M8 X 1.25 MM
MODEL 6821297
$241.63 Each
Prices are subject to change
FREE SHIPPING ON ORDERS OVER $100
Select Quantity
Typically Ships in: 1 day
Returnable: Yes
California Prop 65 warningBasic Standard
DORMER
Coating
Alcrona Pro
Coating property (CTP)
1

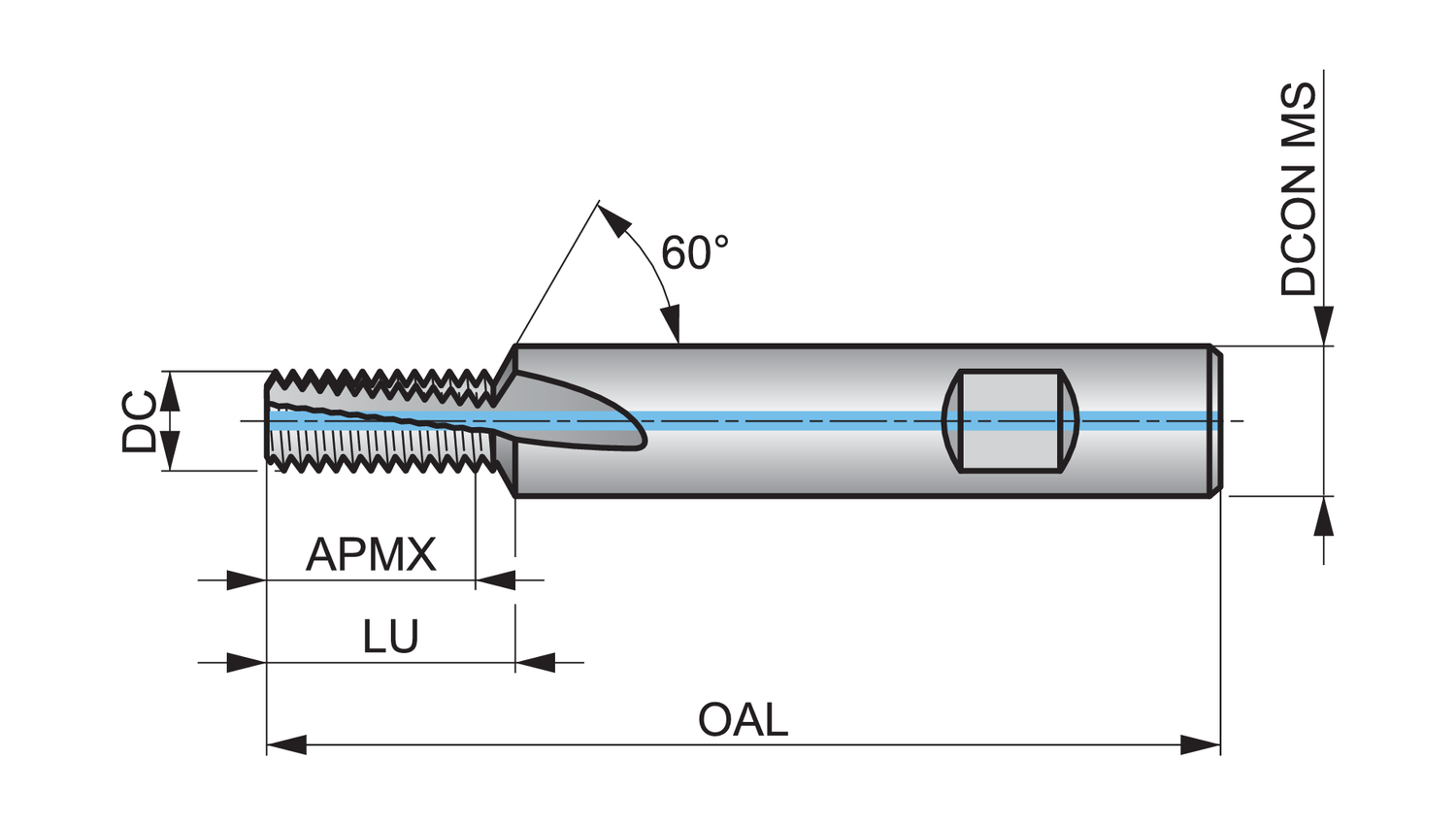

Connection diameter - inch (DCON MS)
0.3937
Connection diameter - millimeter (DCON MS)
10
Coolant exit style (CXSC)
axial concentric exit
Coolant supply property (CSP)
1
Cutting diameter - inch (DC)
0.2559
Cutting diameter - millimeter (DC)
6.5
Depth of cut maximum - millimeter (APMX)
17.5
EDP number
46821297
Flute count (NOF)
3
Flute Geometry (FDC)
Spiral Flute Geometry
Flute helix angle (FHA)
10
Hand (Cutting direction)
Right
Material
HM
MID number
6821297
Ordering code ANSI
J2056.5X1.25
Overall length - inch (OAL)
2.8346
Overall length - millimeter (OAL)
72
Shank
Cylindrical shank DIN 6535 HB
Thread diameter size (TDZ)
M8
Thread form (THFT)
M - Metric coarse
Thread pitch - millimeter (TP)
1.25
Usable length (ULDR)
2
Usable Length - millimeter (LU)
19.1
Thread and chamfer milling cutter, for ISO-Metric thread ≥ M8 with 1.25 mm pitch, dimensions according to DORMER standard with 3 flutes, 6.5mm cutting diameter and 10mm Weldon shank according to DIN 6535 HB, solid carbide with Alcrona Pro coating, through coolant holes and 10° helix angle for milling a maximum of 17.5mm long right or left hand internal thread in steel and cast steel, ferritic, martensitic and austenitic stainless steel, cast-iron, non-ferrous metals and titanium or titanium alloys.
