Dormer J21510.0X2.0 6821306 Thread Mill Spiral Flute 27° Oil Feed M14 x 2.00 mm
MODEL 6821306
$439.05 Each
Prices are subject to change
FREE SHIPPING ON ORDERS OVER $100
Select Quantity
Typically Ships in: 1 day
Returnable: Yes
California Prop 65 warningBasic Standard
DORMER
Coating
Alcrona Pro
Coating property (CTP)
1

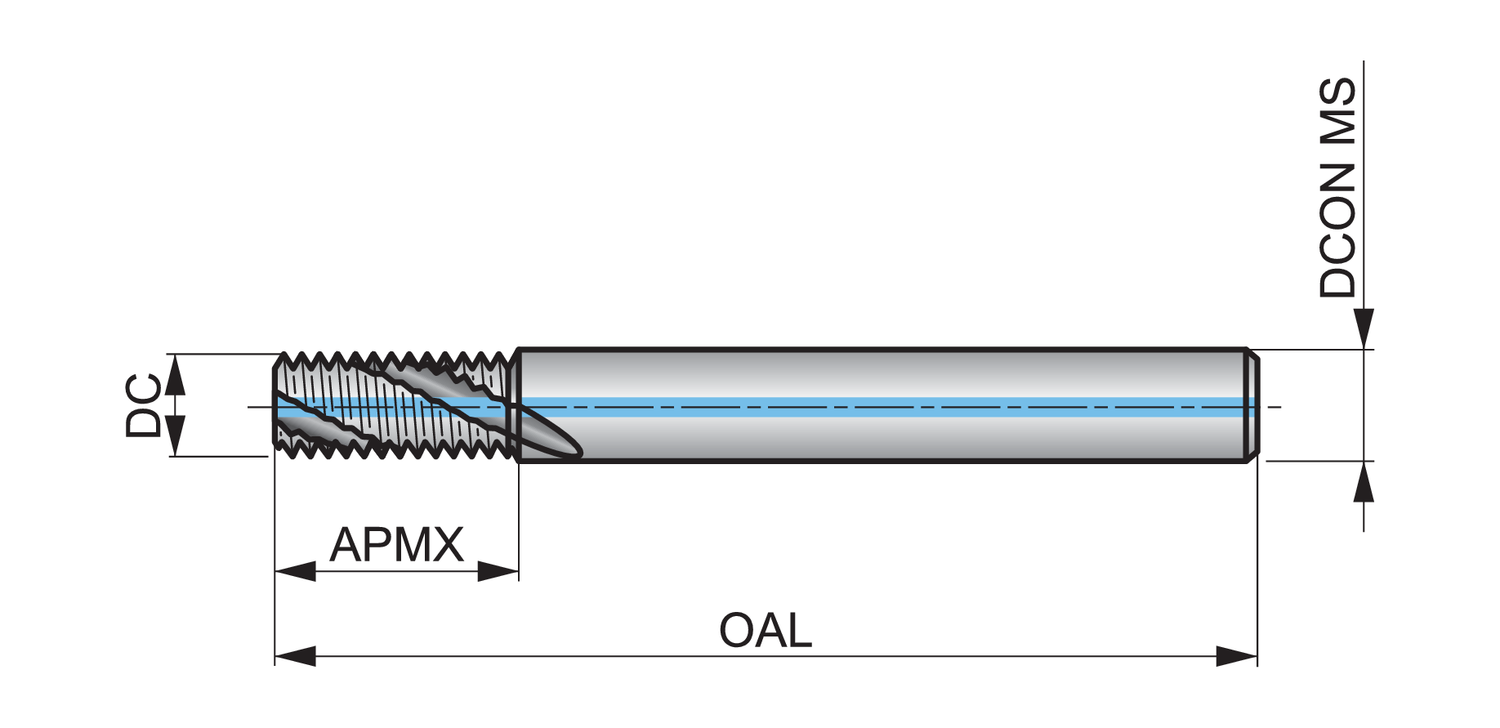

Connection diameter - inch (DCON MS)
0.3937
Connection diameter - millimeter (DCON MS)
10
Coolant exit style (CXSC)
axial concentric exit
Coolant supply property (CSP)
1
Cutting diameter - inch (DC)
0.3937
Cutting diameter - millimeter (DC)
10
Depth of cut maximum - millimeter (APMX)
30
EDP number
46821306
Flute count (NOF)
4
Flute Geometry (FDC)
Spiral Flute Geometry
Flute helix angle (FHA)
27
Hand (Cutting direction)
Right
Material
HM
MID number
6821306
Ordering code ANSI
J21510.0X2.0
Overall length - inch (OAL)
3.2677
Overall length - millimeter (OAL)
83
Shank
Cylindrical shank DIN 6535 HA
Thread diameter size (TDZ)
M14
Thread form (THFT)
M - Metric coarse
Thread pitch - millimeter (TP)
2
Usable length (ULDR)
2
Thread milling cutter, for ISO-Metric thread ≥ M14 with 2.00 mm pitch, dimensions according to DORMER standard with 4 flutes, 10mm cutting diameter and 10mm parallel shank according to DIN 6535 HA, solid carbide with Alcrona Pro coating, through coolant holes and 27° helix angle for milling a maximum of 30mm long right or left hand internal thread in steel and cast steel, stainless steel, cast-iron, non-ferrous metals, titanium or titanium alloys, chilled cast-iron.
