Dormer J22512.0X1.0 6821332 MF Thread Mill Spiral Flute 10° Oil Feed M14 x 1.00 mm
MODEL 6821332
$439.05 Each
Prices are subject to change
FREE SHIPPING ON ORDERS OVER $100
Select Quantity
Typically Ships in: 1 day
Returnable: Yes
California Prop 65 warningBasic Standard
DORMER
Coating
Alcrona Pro
Coating property (CTP)
1

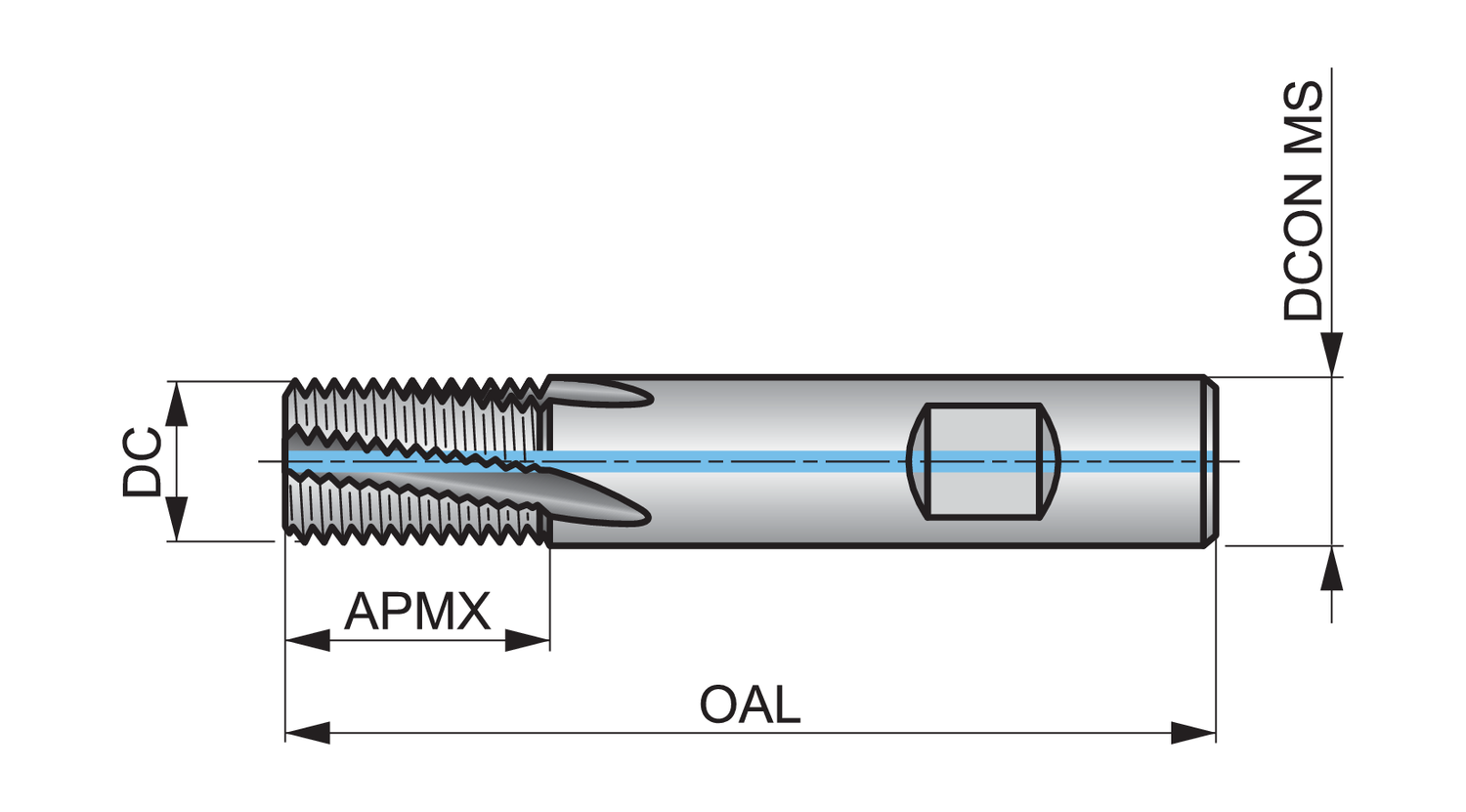

Connection diameter - inch (DCON MS)
0.4724
Connection diameter - millimeter (DCON MS)
12
Coolant exit style (CXSC)
axial concentric exit
Coolant supply property (CSP)
1
Cutting diameter - inch (DC)
0.4724
Cutting diameter - millimeter (DC)
12
Depth of cut maximum - millimeter (APMX)
22
EDP number
46821332
Flute count (NOF)
4
Flute Geometry (FDC)
Spiral Flute Geometry
Flute helix angle (FHA)
10
Hand (Cutting direction)
Right
Material
HM
MID number
6821332
Ordering code ANSI
J22512.0X1.0
Overall length - inch (OAL)
3.2677
Overall length - millimeter (OAL)
83
Shank
Cylindrical shank DIN 6535 HB
Thread diameter size (TDZ)
M14
Thread form (THFT)
MF - Metric fine
Thread pitch - millimeter (TP)
1
Usable length (ULDR)
1.5
Thread milling cutter, for ISO-Metric Fine thread ≥ M14 with 1.00 mm pitch, dimensions according to DORMER standard with 4 flutes, 12mm cutting diameter and 12mm Weldon shank according to DIN 6535 HB, solid carbide with Alcrona Pro coating, through coolant holes and 10° helix angle for milling a maximum of 22mm long right or left hand internal thread in steel and cast steel, ferritic, martensitic and austenitic stainless steel, cast-iron, non-ferrous metals, titanium or titanium alloys and Co-based high-temperature alloys, chilled cast-iron.
