Dormer J24510.0-18 6821342 UNF thread mill with 5/8" cutting diameter, 18 TPI, solid carbide (HM), 4 flutes, 10° helix angle, and oil feed coolant. 10 mm shank, 72 mm overall length, 22 mm max depth of cut. For hardened materials, cast iron, stainless steel, non-ferrous metals, steel, and high-temperature alloys.
MODEL 6821342
$318.75 Each
Prices are subject to change
FREE SHIPPING ON ORDERS OVER $100
Select Quantity
Typically Ships in: 1 day
Returnable: Yes
California Prop 65 warningBasic Standard
DORMER
Coating
Alcrona Pro
Coating property (CTP)
1
Connection diameter - inch (DCON MS)
0.3937
Connection diameter - millimeter (DCON MS)
10
Coolant exit style (CXSC)
axial concentric exit
Coolant supply property (CSP)
1

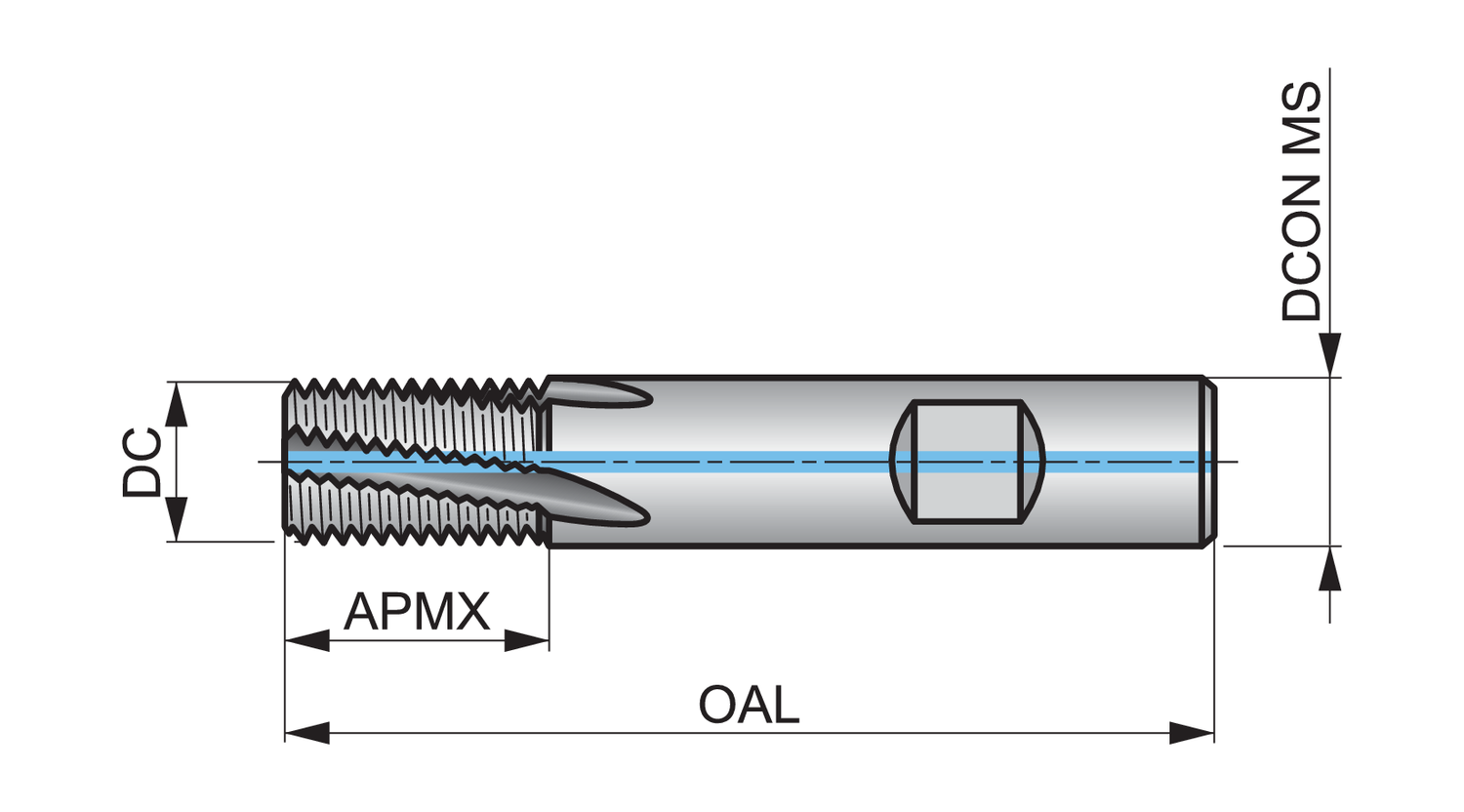

Cutting diameter - inch (DC)
0.3937
Cutting diameter - millimeter (DC)
10
Depth of cut maximum - inch (APMX)
0.8661
Depth of cut maximum - millimeter (APMX)
22
EDP number
46821342
Flute count (NOF)
4
Flute Geometry (FDC)
Spiral Flute Geometry
Flute helix angle (FHA)
10
Hand (Cutting direction)
Right
Material
HM
MID number
6821342
Ordering code ANSI
J24510.0-18
Overall length - inch (OAL)
2.8346
Overall length - millimeter (OAL)
72
Shank
Cylindrical shank DIN 6535 HB
Thread diameter size (TDZ)
9/16, 5/8
Thread form (THFT)
UNF - Unified Fine
Threads per inch (TPI)
18
Usable length (ULDR)
2
Thread milling cutter, for Unified National Fine thread ≥ UNF 9/16" with 18 TPI, dimensions according to DORMER standard with 4 flutes, 10mm cutting diameter and 10mm Weldon shank according to DIN 6535 HB, solid carbide with Alcrona Pro coating, through coolant holes and 10° helix angle for milling a maximum of 22mm long right or left hand internal thread in steel and cast steel, stainless steel, cast-iron, non-ferrous metals, titanium or titanium alloys, chilled cast-iron.
