Dormer J28010.0-19 6821351 G(BSP) Thread Mill Spiral Flute 10° 1/4 INCH X 19
MODEL 6821351
$301.27 Each
Prices are subject to change
FREE SHIPPING ON ORDERS OVER $100
Select Quantity
Typically Ships in: 1 day
Returnable: Yes
California Prop 65 warningBasic Standard
DORMER
Coating
Alcrona Pro
Coating property (CTP)
1

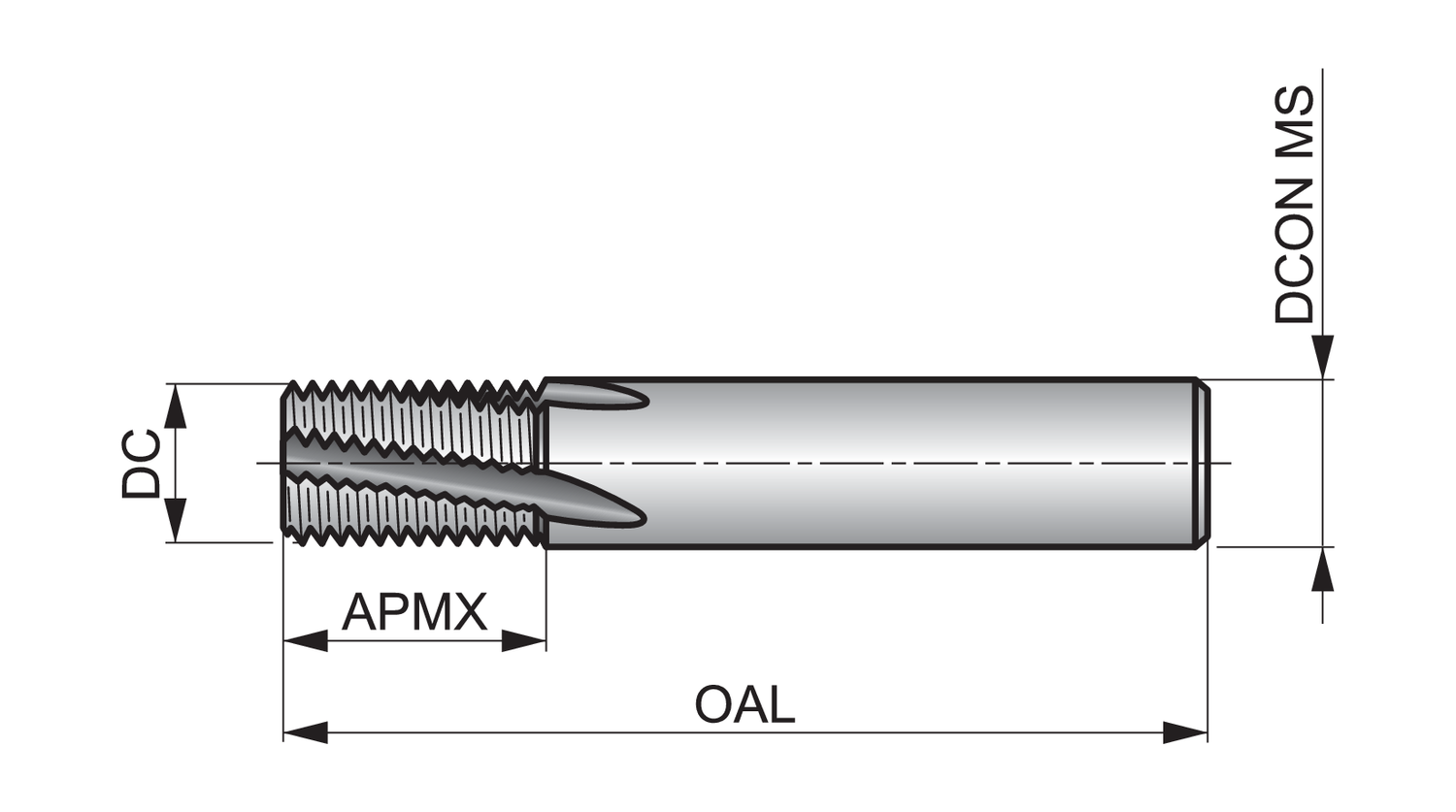

Connection diameter - inch (DCON MS)
0.3937
Connection diameter - millimeter (DCON MS)
10
Cutting diameter - inch (DC)
0.3937
Cutting diameter - millimeter (DC)
10
Depth of cut maximum - inch (APMX)
0.7874
Depth of cut maximum - millimeter (APMX)
20
EDP number
46821351
Flute count (NOF)
4
Flute Geometry (FDC)
Spiral Flute Geometry
Flute helix angle (FHA)
10
Hand (Cutting direction)
Right
Material
HM
MID number
6821351
Ordering code ANSI
J28010.0-19
Overall length - inch (OAL)
2.8346
Overall length - millimeter (OAL)
72
Shank
Cylindrical shank DIN 6535 HA
Thread diameter size (TDZ)
1/4
Thread form (THFT)
G - British standard pipe fastening - G series
Threads per inch (TPI)
19
Usable length (ULDR)
1.5
Thread milling cutter, for British Standard Pipe thread ≥ G 1/4" with 19 TPI, dimensions according to DORMER standard with 4 flutes, 10mm cutting diameter and 10mm parallel shank according to DIN 6535 HA, solid carbide with Alcrona Pro coating and 10° helix angle for milling a maximum of 20mm long right or left hand internal and external thread in steel and cast steel, stainless steel, cast-iron, non-ferrous metals, titanium or titanium alloys, chilled cast-iron.
