Dormer Pramet P5013.0X3.0 7806100 solid carbide cylinder rotary burr without endcut, 3mm shank diameter with h6 tolerance. Designed for high-temperature alloys (S group). DORMER standard.
MODEL 7806100
$9.91 Each
Prices are subject to change
FREE SHIPPING ON ORDERS OVER $100
Select Quantity
Typically Ships in: 1 day
Returnable: Yes
California Prop 65 warningBasic Standard
DORMER
Burr Shape
A - Cylinder Shape without endcut
Burr Type Code (BTC)
Superalloy Cut Geometry
Coating
Bright

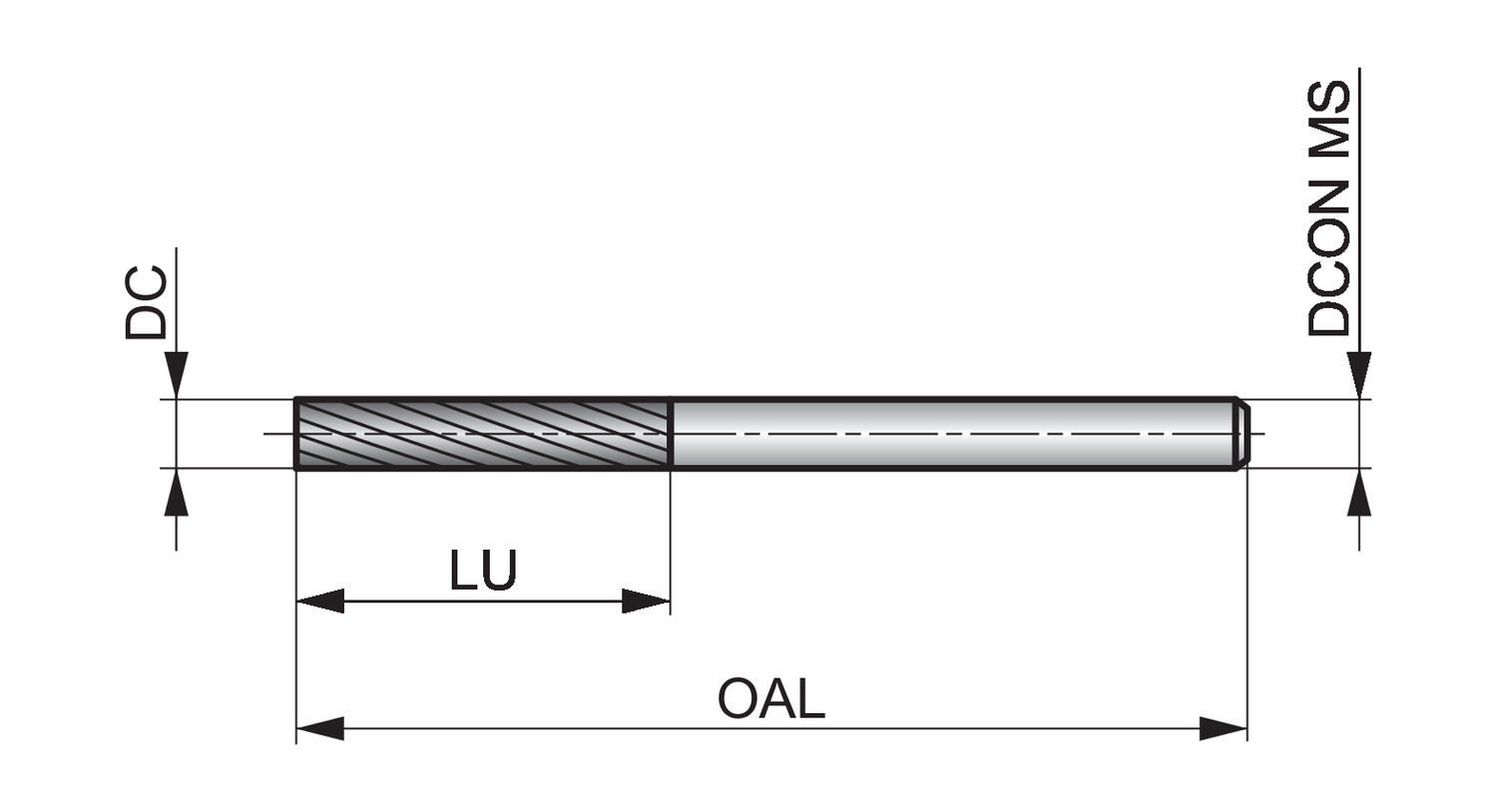

Connection diameter - inch (DCON MS)
0.1181
Connection diameter - millimeter (DCON MS)
3
Connection diameter tolerance machine side (TCDCONMS)
h6
Cutting diameter - inch (DC)
0.1181
Cutting diameter - millimeter (DC)
3
EDP number
7806100
Material
HM
Material application
S - High-temperature alloys
MID number
7806100
Ordering code ANSI
P5013.0X3.0
Overall length - inch (OAL)
1.4961
Overall length - millimeter (OAL)
38
Shank
Cylindrical shank
Usable Length - millimeter (LU)
12
Cylinder burr without end cut (A shape), diameter 3mm with 12mm length of cut, 38mm overall length and 3mm shank, solid carbide with bright finish, AS single cut flute style with light left-hand cross cut for machining surfaces in high-temperature alloys
