Dormer P5093.0X3.0 7806103 Rotary Burr - Oval
MODEL 7806103
$9.91 Each
Prices are subject to change
FREE SHIPPING ON ORDERS OVER $100
Select Quantity
Typically Ships in: 1 day
Returnable: Yes
California Prop 65 warningBasic Standard
DORMER
Burr Shape
E - Oval Shape
Burr Type Code (BTC)
Superalloy Cut Geometry
Coating
Bright

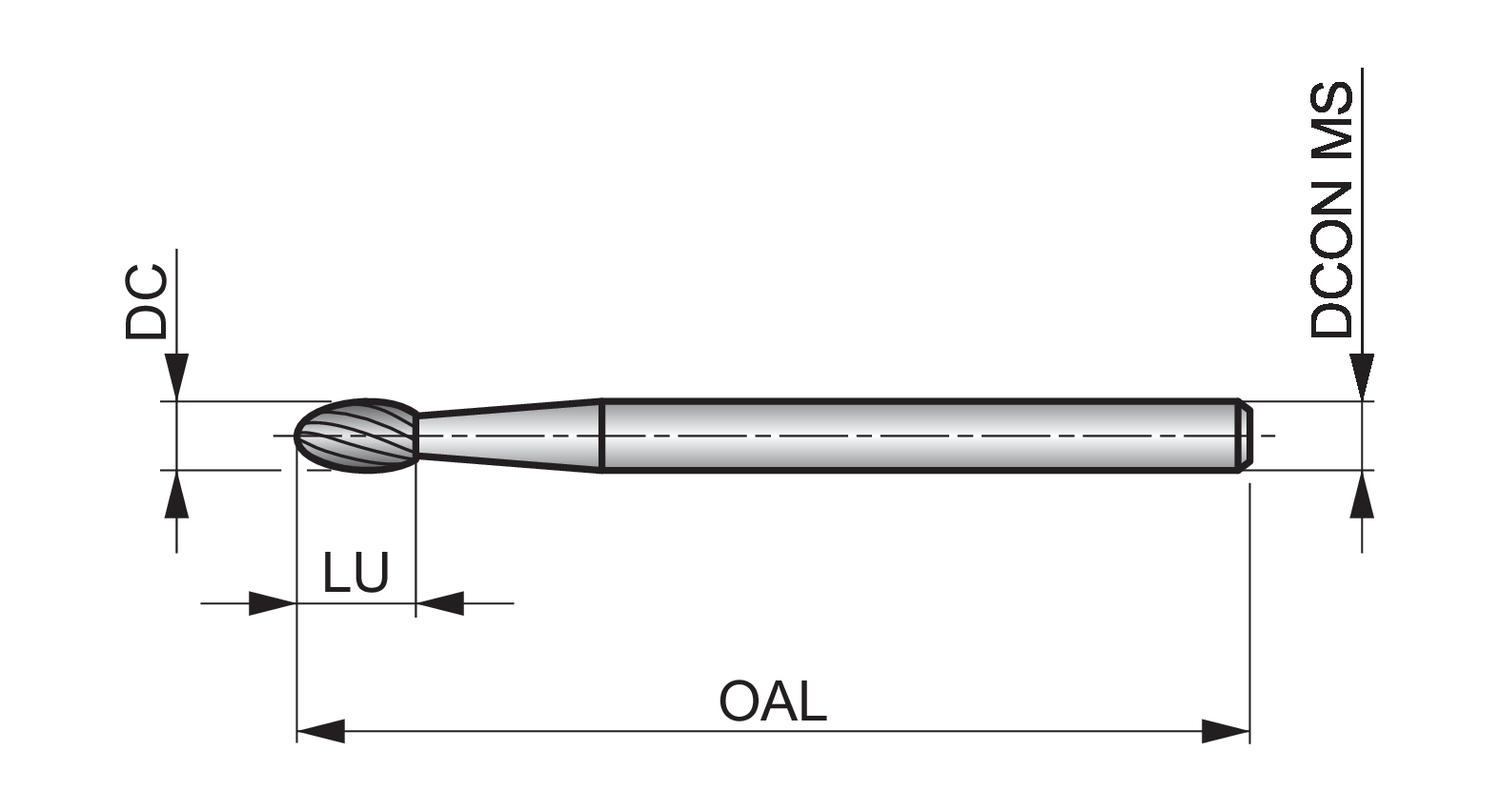

Connection diameter - inch (DCON MS)
0.1181
Connection diameter - millimeter (DCON MS)
3
Connection diameter tolerance machine side (TCDCONMS)
h6
Cutting diameter - inch (DC)
0.1181
Cutting diameter - millimeter (DC)
3
EDP number
7806103
Material
HM
Material application
S - High-temperature alloys
MID number
7806103
Ordering code ANSI
P5093.0X3.0
Overall length - inch (OAL)
1.4961
Overall length - millimeter (OAL)
38
Shank
Cylindrical shank
Usable Length - millimeter (LU)
6
Oval burr (E shape), diameter 3mm with 6mm length of cut, 38mm overall length and 3mm shank, solid carbide with bright finish, AS single cut flute style with light left-hand cross cut for round edge contouring in high-temperature alloys
