Dormer Pramet P5133.0X3.0X8.0 7806105 pointed tree rotary burr, solid carbide (HM) construction for high-temperature alloy applications. 3mm connection diameter with h6 shank tolerance. DORMER basic standard. Suitable for deburring and finishing operations on S-group workpiece materials.
MODEL 7806105
$9.91 Each
Prices are subject to change
FREE SHIPPING ON ORDERS OVER $100
Select Quantity
Typically Ships in: 1 day
Returnable: Yes
California Prop 65 warningBasic Standard
DORMER
Burr Shape
G - Pointed Tree Shape
Burr Type Code (BTC)
Superalloy Cut Geometry
Coating
Bright
Connection diameter - inch (DCON MS)
0.1181
Connection diameter - millimeter (DCON MS)
3
Connection diameter tolerance machine side (TCDCONMS)
h6
Cutting diameter - inch (DC)
0.1181
Cutting diameter - millimeter (DC)
3
EDP number
7806105
Material
HM
Material application
S - High-temperature alloys
MID number
7806105
Ordering code ANSI
P5133.0X3.0X8.0

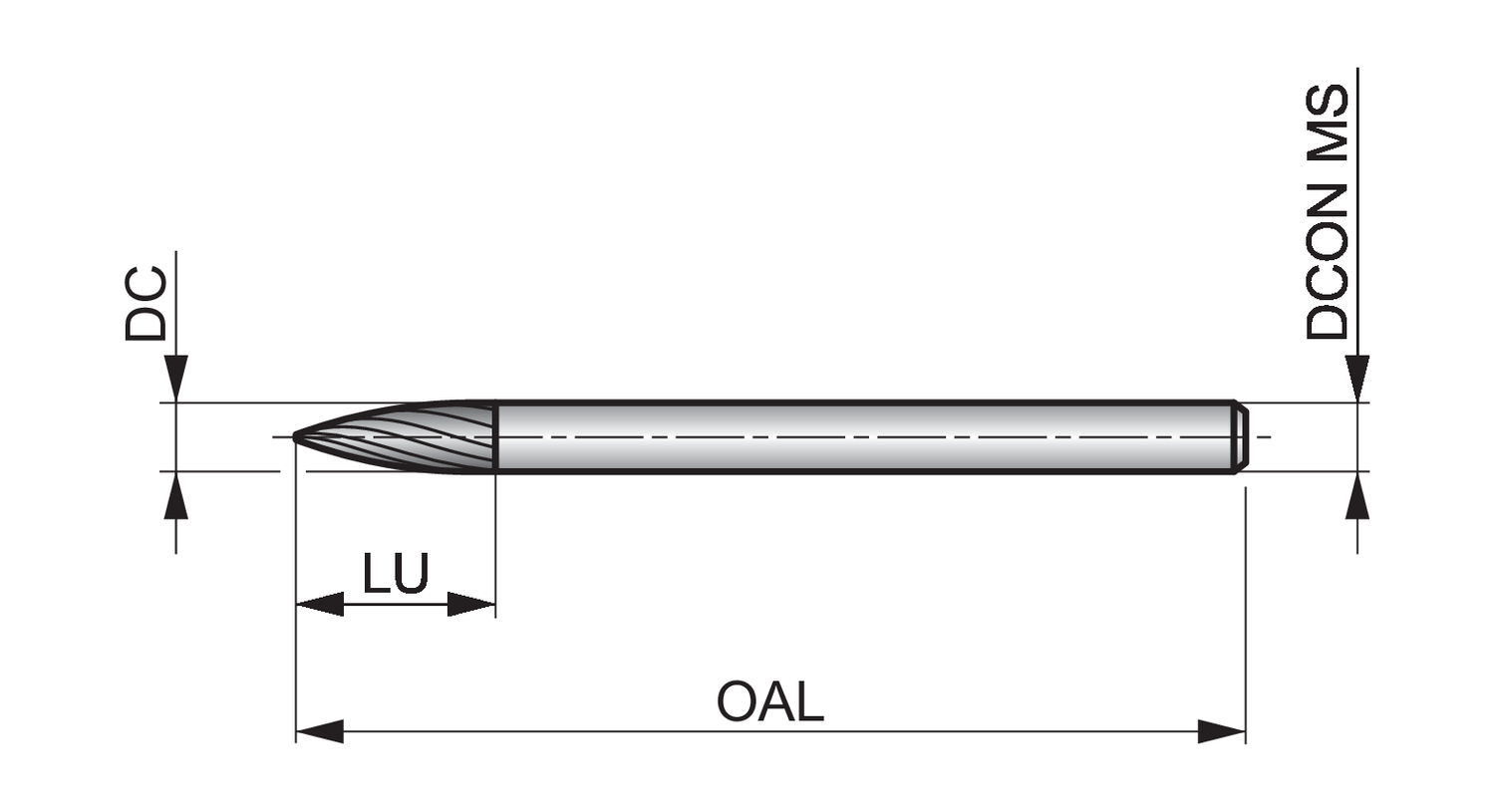

Overall length - inch (OAL)
1.4961
Overall length - millimeter (OAL)
38
Shank
Cylindrical shank
Usable Length - millimeter (LU)
8
Pointed tree burr (G shape), diameter 3mm with 8mm length of cut, 38mm overall length and 3mm shank, solid carbide with bright finish, AS single cut flute style with light left-hand cross cut for multi-angle contouring and cutting narrow angles in hard to reach areas in high-temperature alloys
