Image for Illustration purposes only. Actual product may vary
Dormer P7016.0X6.0 7059539 Rotary Burr - Cylinder without endcut 6.00 mm x 6.0
MODEL 7059539
$14.35 Each
Prices are subject to change
FREE SHIPPING ON ORDERS OVER $100
Select Quantity
Typically Ships in: 1 day
Returnable: Yes
California Prop 65 warningBasic Standard
DORMER

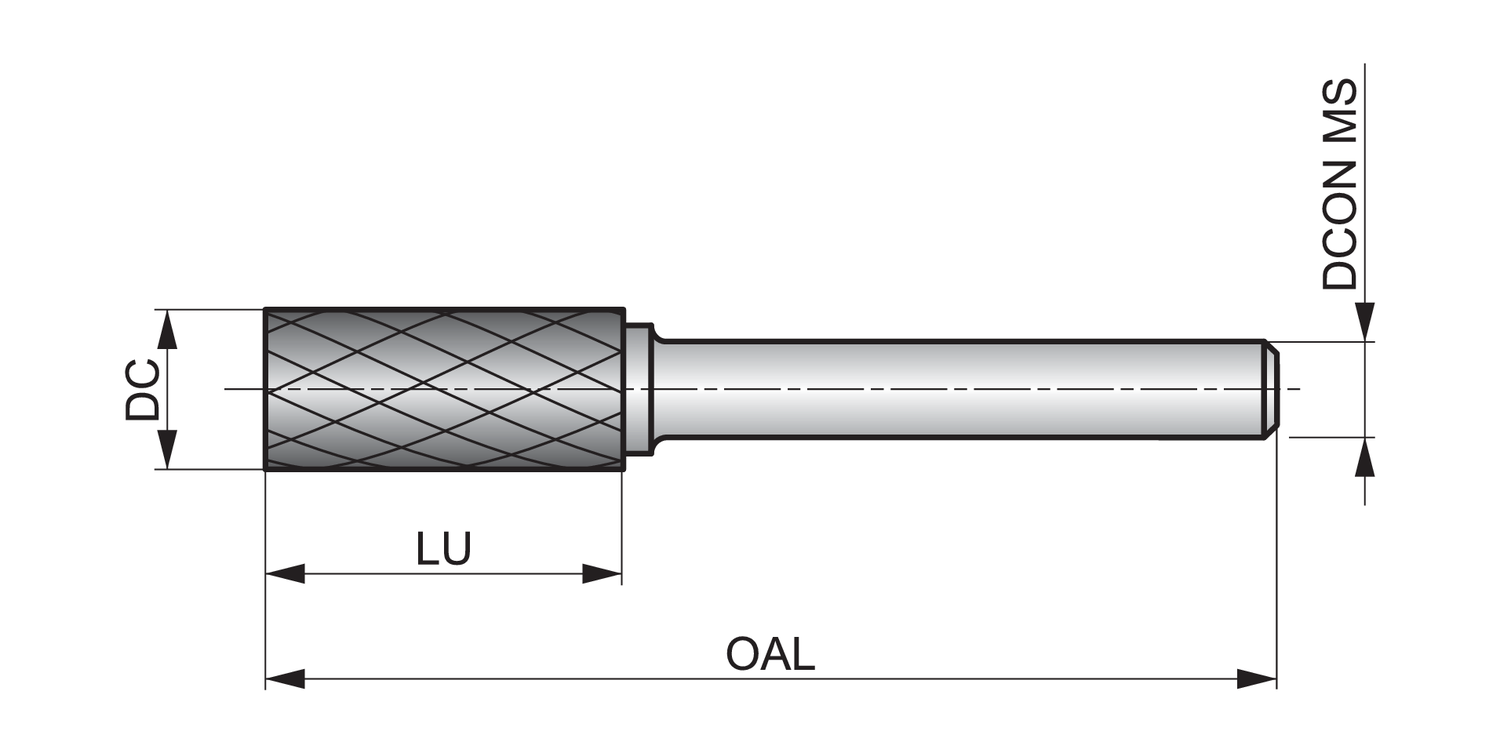

Burr Shape
A - Cylinder Shape without endcut
Burr Type Code (BTC)
Steel Cut Geometry
Coating
Bright
Connection diameter - inch (DCON MS)
0.2362
Connection diameter - millimeter (DCON MS)
6
Connection diameter tolerance machine side (TCDCONMS)
h6
Cutting diameter - inch (DC)
0.2362
Cutting diameter - millimeter (DC)
6
EDP number
47059539
Material
HM
Material application
P - Steel and cast steel
MID number
7059539
Ordering code ANSI
P7016.0X6.0
Overall length - inch (OAL)
1.9685
Overall length - millimeter (OAL)
50
Shank
Cylindrical shank
Usable Length - millimeter (LU)
18
Another member of Dormer’s range of rotary carbide burrs is the P701, with ST geometry for maximum material removal when de-burring steels.
The burrs are designed for general plain surface de-burring as they are Shape A – cylinder without end cut.
They are manufactured from premium carbide material and will give great performance and longer tool life at high speeds, whilst the toughened, hardened steel shank gives better strength and rigidity, making sure vibration is kept to a minimum and so further extending tool life.
P701 carbide burrs will give clean de-burring results thanks to the bright finish which prevents workpiece material from sticking to the cutting edges of the tool
