Dormer P801C3.0X3.0 6814093 Rotary Burr - Cylinder without endcut 3.00 mm x 3.0
MODEL 6814093
$11.78 Each
Prices are subject to change
FREE SHIPPING ON ORDERS OVER $100
Select Quantity
Typically Ships in: 1 day
Returnable: Yes
California Prop 65 warningBasic Standard
DORMER
Burr Shape
A - Cylinder Shape without endcut
Burr Type Code (BTC)
Double Cut Geometry
Coating
TiAlN
Coating property (CTP)
1

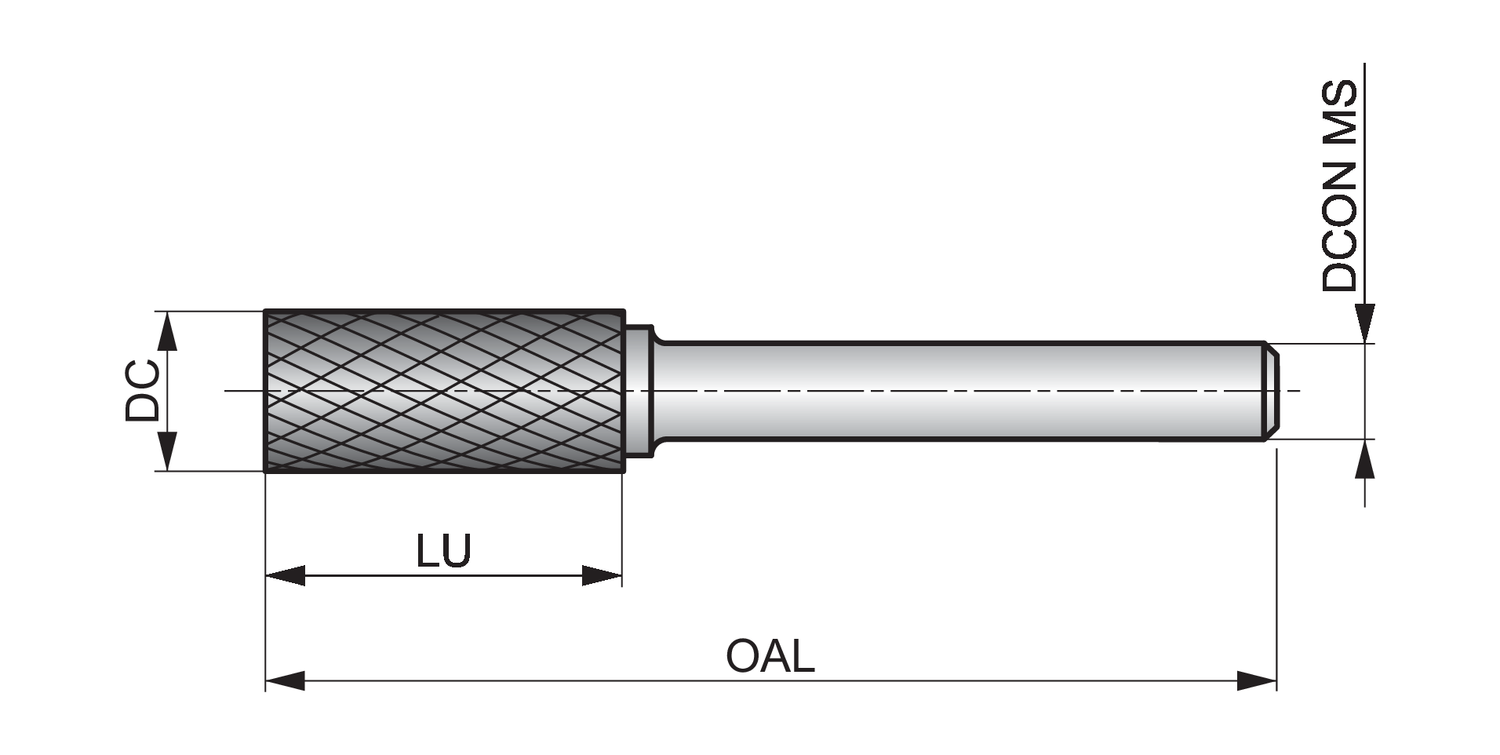

Connection diameter - inch (DCON MS)
0.1181
Connection diameter - millimeter (DCON MS)
3
Connection diameter tolerance machine side (TCDCONMS)
h6
Cutting diameter - inch (DC)
0.1181
Cutting diameter - millimeter (DC)
3
EDP number
46814093
Material
HM
MID number
6814093
Ordering code ANSI
P801C3.0X3.0
Overall length - inch (OAL)
1.4961
Overall length - millimeter (OAL)
38
Shank
Cylindrical shank
Usable Length - millimeter (LU)
14
P801C rotary carbide burrs are manufactured from premium carbide material, which extends tool life and improves performance at high speeds.
The titanium aluminium nitride coating further improves tool life and also gives better performance when used for extended periods at high speed.
The DC geometry is very effective at breaking chips for improved control when used by hand, whilst vibration is also reduced because of the toughened and hardened steel shank which improves rigidity and strength.
P801C rotary burrs are Shape A – cylinder without end cut - designed for general plain surface de-burring
