Image for Illustration purposes only. Actual product may vary
Dormer P8193.0X3.0 6814177 Rotary Burr - 90° Countersink 3.00 mm x 3.0
MODEL 6814177
$7.62 Each
Prices are subject to change
FREE SHIPPING ON ORDERS OVER $100
Select Quantity
Typically Ships in: 1 day
Returnable: Yes
California Prop 65 warningApplicationAngleIcon_DICT_SEL
Countersinking 90°
Basic Standard
DORMER
Burr Shape
K - 90° Countersink Shape
Burr Type Code (BTC)
Double Cut Geometry
Coating
Bright

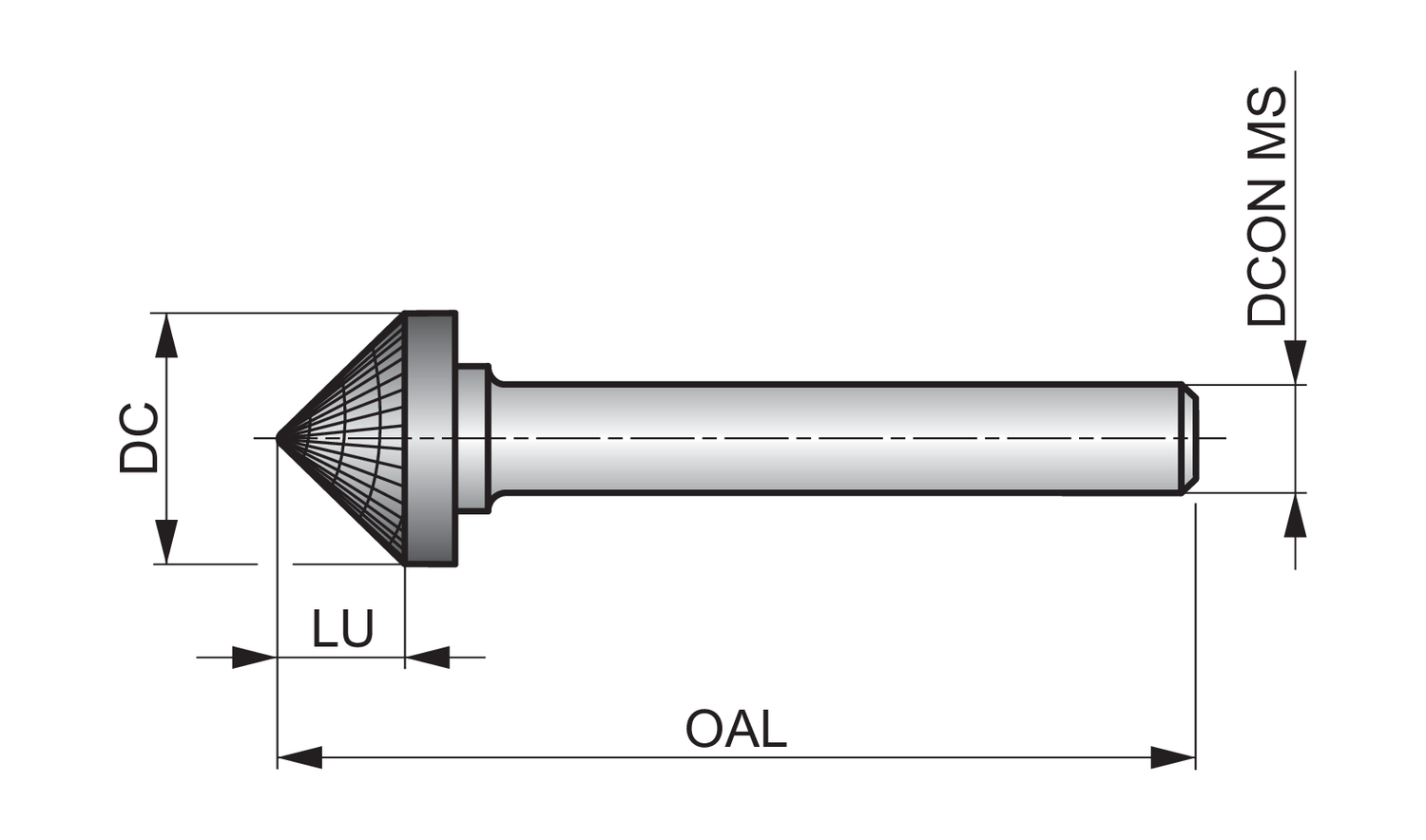

Connection diameter - inch (DCON MS)
0.1181
Connection diameter - millimeter (DCON MS)
3
Connection diameter tolerance machine side (TCDCONMS)
h6
Cutting diameter - inch (DC)
0.1181
Cutting diameter - millimeter (DC)
3
EDP number
46814177
Material
HM
MID number
6814177
Ordering code ANSI
P8193.0X3.0
Overall length - inch (OAL)
1.4961
Overall length - millimeter (OAL)
38
Point Angle (SIG)
90
Shank
Cylindrical shank
Usable Length - millimeter (LU)
1.5
P819 rotary carbide burrs will give you improved control when de-burring by hand, thanks to the DC geometry which breaks chips more efficiently.
The hardened and toughened steel shank means the tools are stronger and more rigid, which reduces vibration and extends tool life.
The bright finish stops workpiece material from sticking to the cutting edges of the tool for a cleaner result.
Manufactured from premium carbide material for great performance and longer tool life at high speeds.
P819 rotary burrs have a 90 degree countersink (Shape K), designed for de-burring weld preparations and chamfers
