Dormer Pramet P821C12.7X6.0 6814189 ball nosed cone rotary burr, 12.70mm cutting diameter, 6mm shank, Solid Carbide. Suitable for deburring and finishing on hardened materials, cast iron, stainless steel, non-ferrous metals, steel, and high-temperature alloys. DORMER standard profile with 14° angle.
MODEL 6814189
$40.69 Each
Prices are subject to change
FREE SHIPPING ON ORDERS OVER $100
Select Quantity
Typically Ships in: 1 day
Returnable: Yes
California Prop 65 warningBasic Standard
DORMER
Burr Shape
L - Ball Nosed Cone Shape
Burr Type Code (BTC)
Double Cut Geometry
Coating
TiAlN
Coating property (CTP)
1

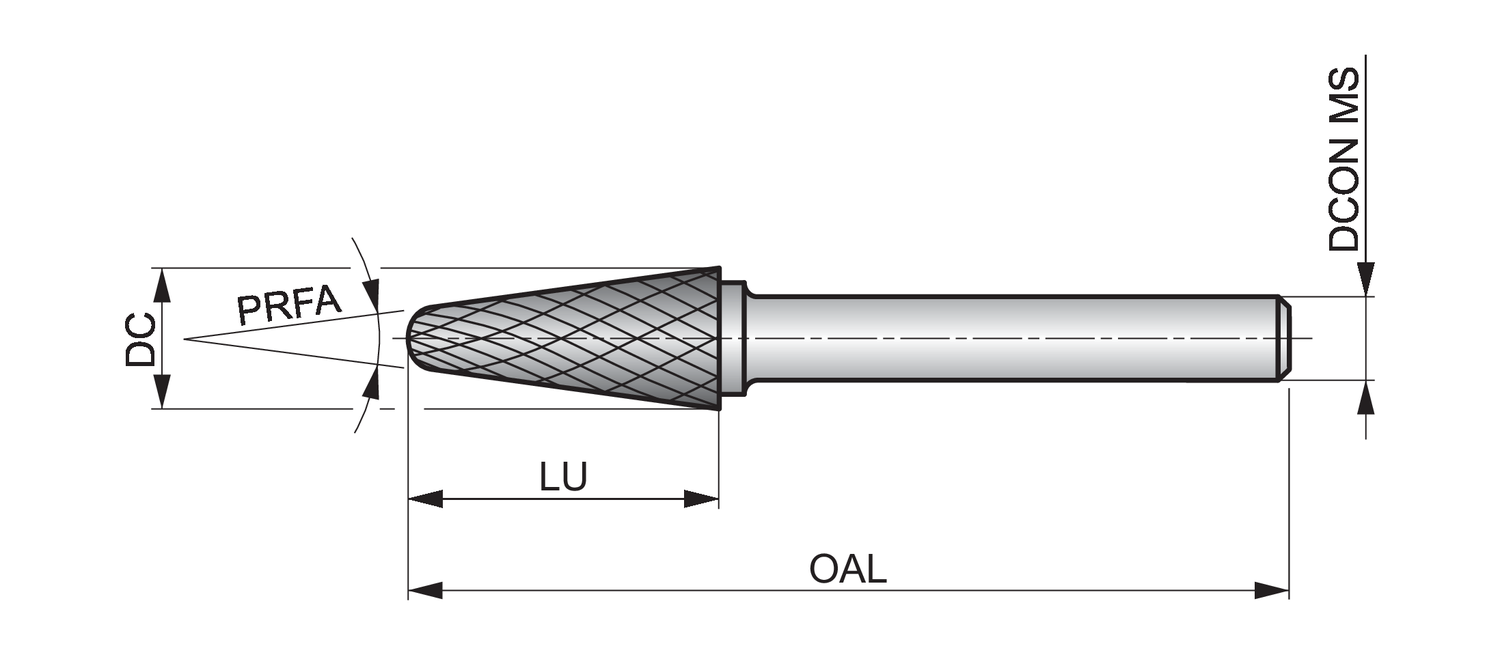

Connection diameter - inch (DCON MS)
0.2362
Connection diameter - millimeter (DCON MS)
6
Connection diameter tolerance machine side (TCDCONMS)
h7
Cutting diameter - inch (DC)
0.5
Cutting diameter - millimeter (DC)
12.7
EDP number
46814189
Material
HM
MID number
6814189
Ordering code ANSI
P821C12.7X6.0
Overall length - inch (OAL)
3.0315
Overall length - millimeter (OAL)
77
Profile angle (PRFA)
14
Shank
Cylindrical shank
Usable Length - millimeter (LU)
32
P821C rotary carbide burrs from Dormer are made from premium carbide material for superior performance and extended tool life at high speeds.
Tool life is further enhanced thanks to the titanium aluminium nitride coating, which also aids performance at high speeds for longer periods.
With a ball nosed cone shape (Shape L) and skip flute geometry, the burrs are designed for de-burring in tight corners.
DC geometry breaks chips more easily for better control when de-burring by hand.
Completing the main features is the hardened and toughened steel shank, which provides extra strength and rigidity to reduce vibration and make the burrs last longer
