Dormer H8551/2 5988109 Coolant Body 5 x D Jobber 1/2 inch
MODEL 5988109
$432.44 Each
Prices are subject to change
FREE SHIPPING ON ORDERS OVER $100
Select Quantity
Typically Ships in: 1 day
Returnable: Yes
Basic Standard
DORMER
Coating
Nickel Plated

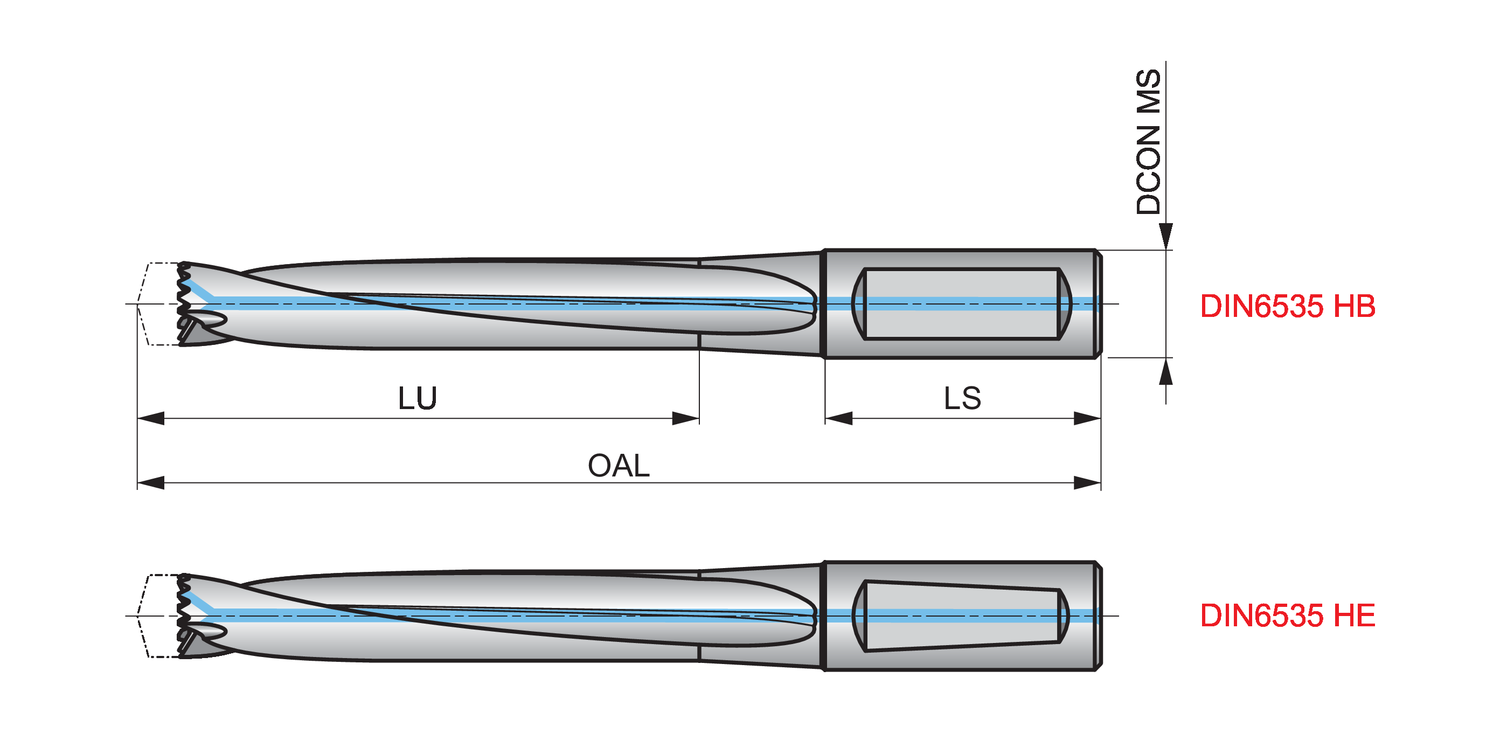

Connection diameter - inch (DCON MS)
0.625
Connection diameter tolerance machine side (TCDCONMS)
h6
Coolant supply property (CSP)
1
Drill Diameter - fractional inch
5/8
Drill Diameter - mm
15.88
Drill Length
Jobber
EDP number
34095
Hand (Cutting direction)
Right
Length to Depth Ratio
5
Material
HSS
MID number
5988109
Ordering code ANSI
H8551/2
Overall length - inch (OAL)
5.1181
Overall length - mm
130
Shank
Cylindrical shank DIN 6535 HE / HB
Shank length - inch (LS)
1.8898
Shank length - millimeter (LS)
48
Surface color
Bright Silver
Usable length (ULDR)
5
Usable Length - inch (LU)
2.7165
Usable Length - mm
69
H855 Hydra drill bodies are designed to hold the interchangeable R950, R960 and R970 Hydra drill heads.
They have an internal coolant system with coolant holes aligning perfectly with the interchangeable heads for efficient tooling.
Several head diameters will fit exactly onto one size body, offering you a potential reduction in tooling needs, whilst common shank sizes allow for versatile tool holding.
Changing a drill head is quick and easy, and can even be done without removing the body from the machine.
H855 intermediate length Hydra drill bodies will give consistently high performance even after many head changes
