Precision Twist Drill 321MD7/32, part number 6480980, 7/32" (0.2188") HSS mechanics length drill with steam tempered/bronze finish and 135° point. Cylindrical shank with 3-flats, 2" flute length, 3-1/4" overall length, ANSI standard, right-hand cut. Suitable for steel, cast iron, stainless steel, and non-ferrous materials.
MODEL 6480980
This product has a minimum order quantity of (12 minimum) This is the minimum order quantity available when purchasing this product.
$3.92 Each
Prices are subject to change
FREE SHIPPING ON ORDERS OVER $100
Select Quantity(12 minimum)
Typically Ships in: 1 day
Returnable: Yes
ApplicationAngleIcon_DICT_SEL
Drill point 135°
Basic Standard
ANSI
Coating
ST/Bronze

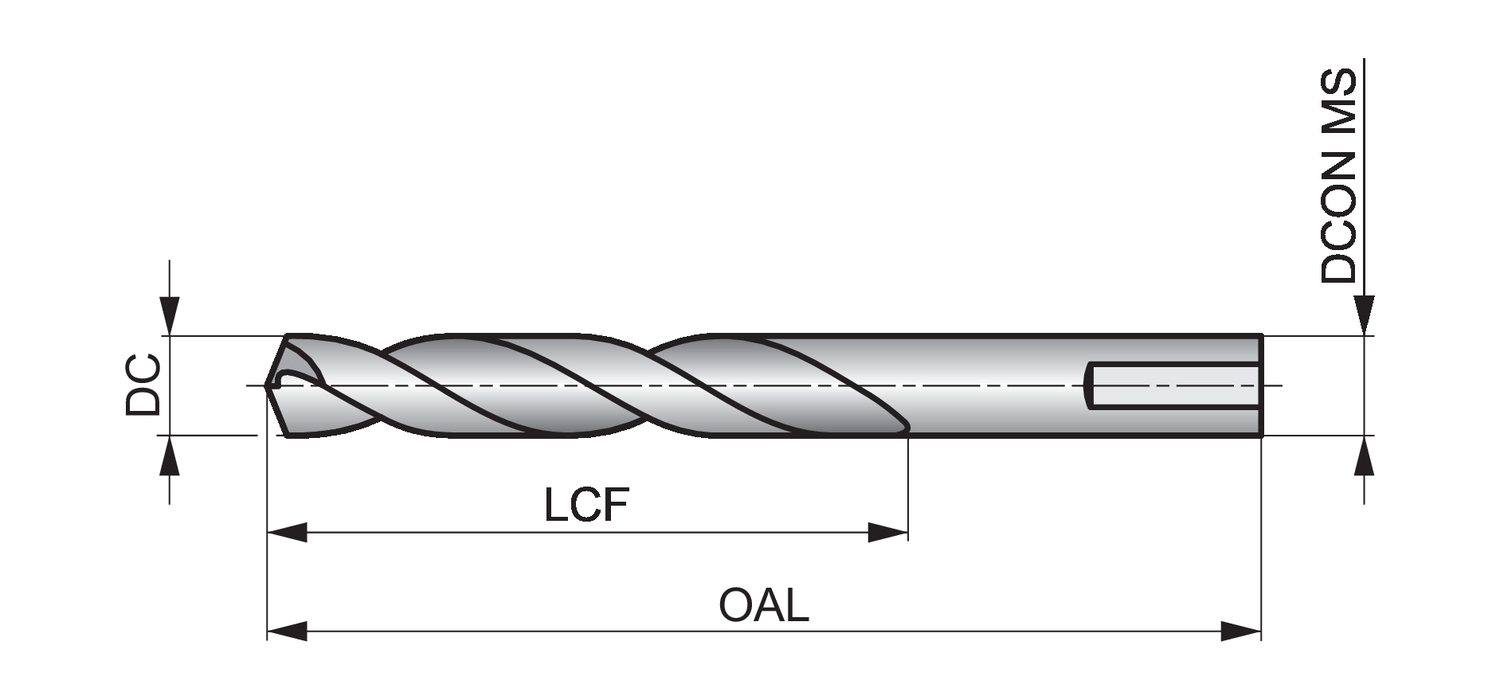

Cutting diameter - fractional inch (DC)
7/32"
Cutting diameter - inch (DC)
0.2188
Cutting diameter - millimeter (DC)
5.56
Hand (Cutting direction)
Right
Length chip flute - fractional inch (LCF)
2
Material
HSS
Overall length - fractional inch (OAL)
3.1/4
Overall length - millimeter (OAL)
82.55
Point Angle (SIG)
135
Shank
Cylindrical shank with 3-Flats
Spiral form
Standard Spiral
Usable length (ULDR)
4
Designed with a shorter flute and overall length than the MRO 332HD drills for superior rigidity when used in portable drills.
Additionally, features 3 flats on the shank for tighter chucking particularly in keyless chucks.
The Self-Centering 135° Split Point for reduced thrust requirements.
Steam & Bronze tempered surface treatment provides both abrasion resistance & improved lubricity.
