Image for Illustration purposes only. Actual product may vary
R18N18 5998315 Oxide 118° Jobber Drill N18
MODEL 5998315
This product has a minimum order quantity of (12 minimum) This is the minimum order quantity available when purchasing this product.
$2.29 Each
Prices are subject to change
FREE SHIPPING ON ORDERS OVER $100
Select Quantity(12 minimum)
Typically Ships in: 1 day
Returnable: Yes
ApplicationAngleIcon_DICT_SEL
Drill point 118°
Basic Standard
ANSI
Coating
Steam Tempered
Connection (shank) description
Cylindrical shank

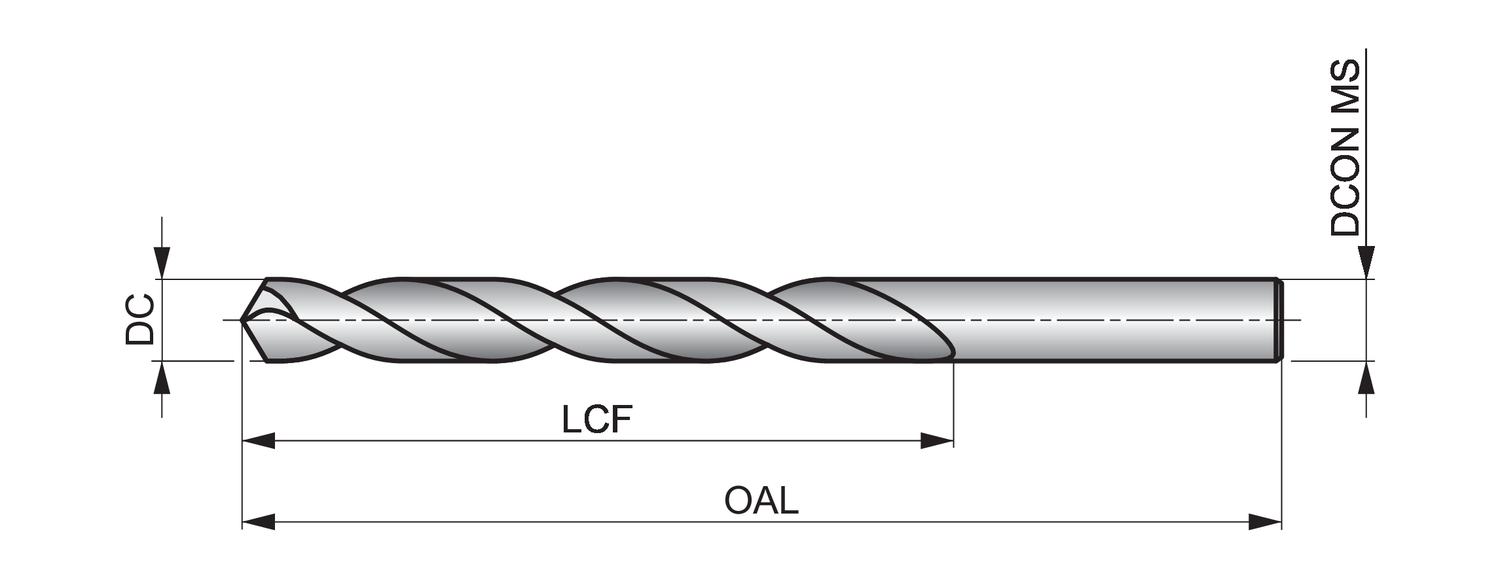

Cutting diameter (wire gauge size) (DC)
N18
Cutting diameter - inch (DC)
0.1695
Cutting diameter - millimeter (DC)
4.31
Drill Length
Jobber
Hand (Cutting direction)
Right
Length chip flute - fractional inch (LCF)
2.1/8
Length chip flute - inch (LCF)
2.125
Material
HSS
Overall length - fractional inch (OAL)
3.1/4
Overall length - millimeter (OAL)
82.55
Point Angle (SIG)
118
Spiral form
Standard Spiral
Surface treatement
Steam Tempered
Usable length (ULDR)
4
R18 jobber drills have a strong 118 degree conventional point which is easy to re-grind giving great economy The drills are manufactured from premium High Speed steel (HSS) for drilling a wide range of materials including steel, stainless steel and aluminum, and a steam oxide finish to prevent workpiece material from sticking to the cutting edges of the drill for clean and accurate holes.
R18 jobber drills can be used in many different hand held and machine applications, and come in wire gauge sizes from 80 to 1.
