R10A9/32 5997593 Oxide 118° Jobber Drill 9/32 inch
MODEL 5997593
This product has a minimum order quantity of (12 minimum) This is the minimum order quantity available when purchasing this product.
$4.91 Each
Prices are subject to change
FREE SHIPPING ON ORDERS OVER $100
Select Quantity(12 minimum)
Typically Ships in: 1 day
Returnable: Yes
ApplicationAngleIcon_DICT_SEL
Drill point 118°
Basic Standard
NAS907
Coating
Steam Tempered
Connection (shank) description
Cylindrical shank

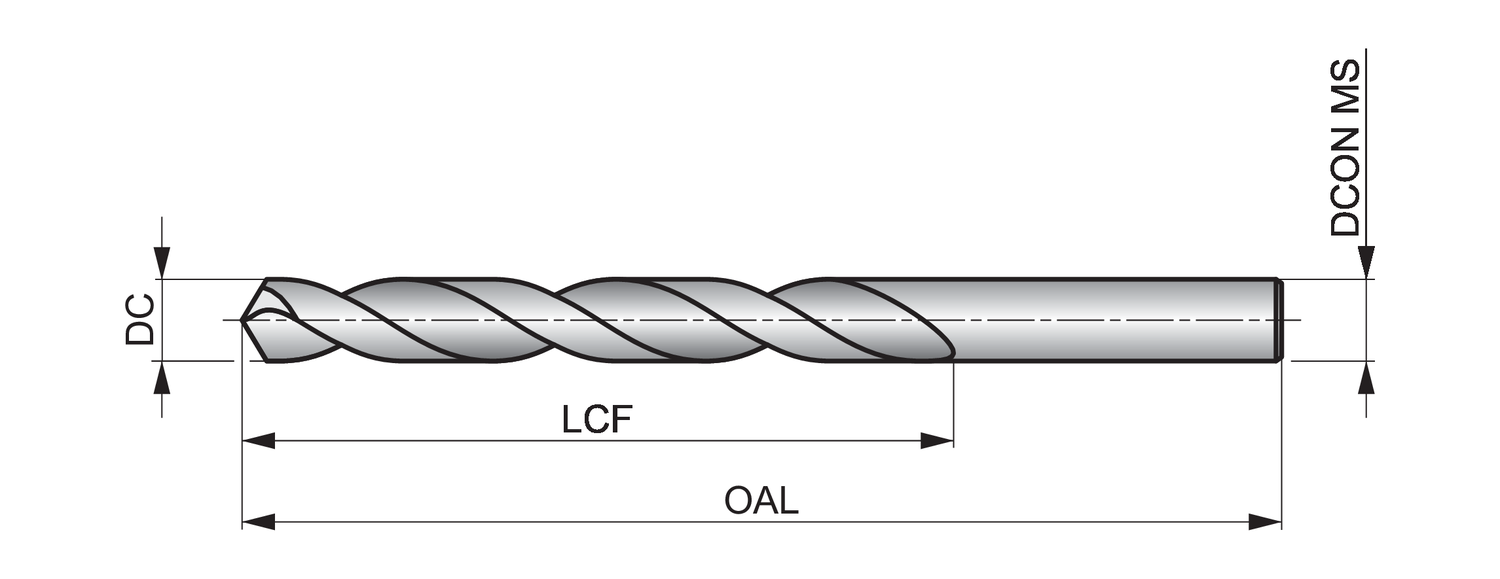

Cutting diameter - fractional inch (DC)
9/32
Cutting diameter - inch (DC)
0.2813
Cutting diameter - millimeter (DC)
7.15
Drill Length
Jobber
Hand (Cutting direction)
Right
Length chip flute - fractional inch (LCF)
2.15/16
Length chip flute - inch (LCF)
2.9375
Material
HSS
Overall length - fractional inch (OAL)
4.1/4
Overall length - millimeter (OAL)
107.95
Point Angle (SIG)
118
Spiral form
Standard Spiral
Surface treatement
Steam Tempered
Usable length (ULDR)
4
R10A jobber drills have a 118 degree split point which helps with self-centering and reduces the force needed to drill into the workpiece.
Manufactured from premium High Speed steel, the tools are suitable for drilling a wide range of materials including aluminum, steel and stainless steel, and have a steam oxide finish to prevent workpiece material from sticking to the cutting surface so you get a clean and accurate hole.
R10A split point jobber drills can be used in many different machine and hand held applications and are available in fractional sizes from 1/16 inch to 1/2 inch.
