Precision Twist Drill 5ATL1.5, part number 6000496, 1.5 mm (0.0591") HSS taper length drill with bright finish and 118° point. DIN 340 standard, right-hand cut, cylindrical shank. 45 mm flute length, 70 mm overall length. Suitable for steel, cast iron, non-ferrous metals, and high-temperature alloys.
MODEL 6000496
This product has a minimum order quantity of (12 minimum) This is the minimum order quantity available when purchasing this product.
$5.53 Each
Prices are subject to change
FREE SHIPPING ON ORDERS OVER $100
Select Quantity(12 minimum)
Typically Ships in: 1 day
Returnable: Yes
ApplicationAngleIcon_DICT_SEL
Drill point 118°
Basic Standard
DIN 340
Coating
Bright

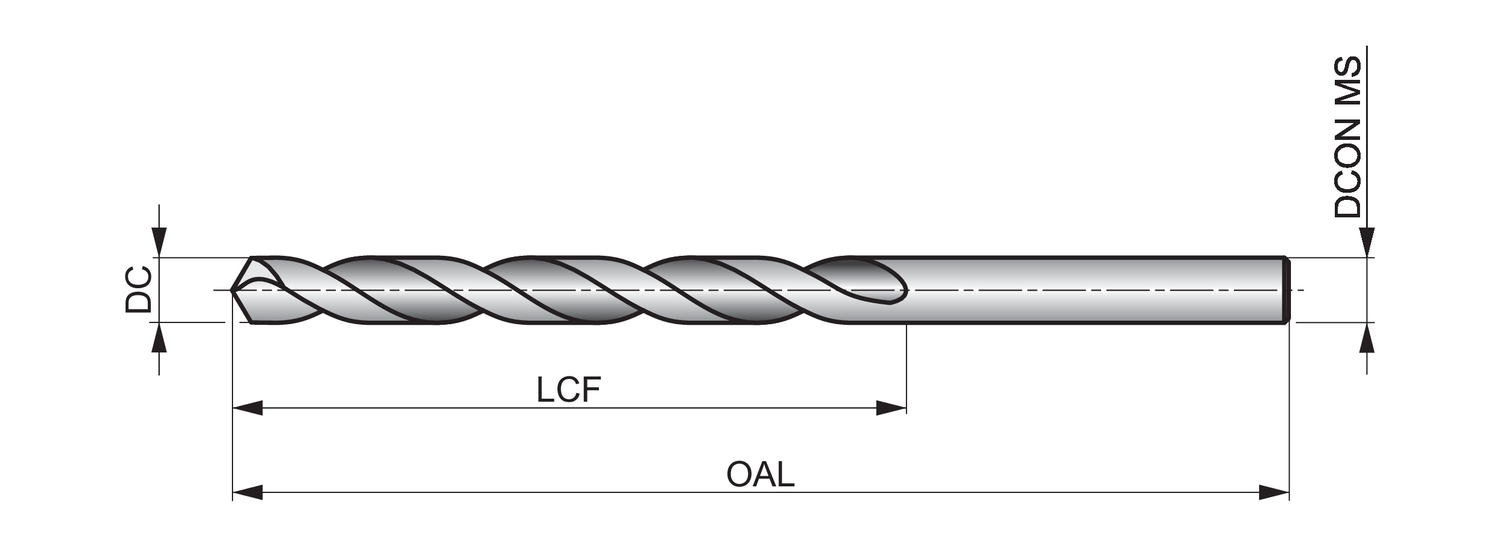

Connection diameter - inch (DCON MS)
0.0591
Connection diameter - millimeter (DCON MS)
1.5
Cutting diameter - inch (DC)
0.0591
Cutting diameter - millimeter (DC)
1.5
Hand (Cutting direction)
Right
Length chip flute - inch (LCF)
1.7717
Length chip flute - millimeter (LCF)
45
Material code (BMC)
HSS
Overall length - inch (OAL)
2.7559
Overall length - millimeter (OAL)
70
Point Angle (SIG)
118
Shank
Cylindrical shank
Spiral form
Standard Spiral
Usable length (ULDR)
6
5ATL taper length series drill bits are recommended for drilling deep holes and for applications where increased reach is required. They are manufactured from premium High Speed Steel and can be used for drilling many materials including steels, stainless steel and aluminum.
The 118 degree conventional point means the tools are easy to re-grind for economy, whilst the bright finish means you will get a clean and accurate hole as workpiece material is prevented from sticking to the cutting surfaces.
5ATL drill bits are available in many sizes from 1 mm to 31 mm.
