5ATL20.0 6000830 Taper Length Drill Long DIN 340 20.00 mm
MODEL 6000830
$111.80 Each
Prices are subject to change
FREE SHIPPING ON ORDERS OVER $100
Select Quantity
Typically Ships in: 1 day
Returnable: Yes
ApplicationAngleIcon_DICT_SEL
Drill point 118°
Basic Standard
DIN 340
Coating
Bright

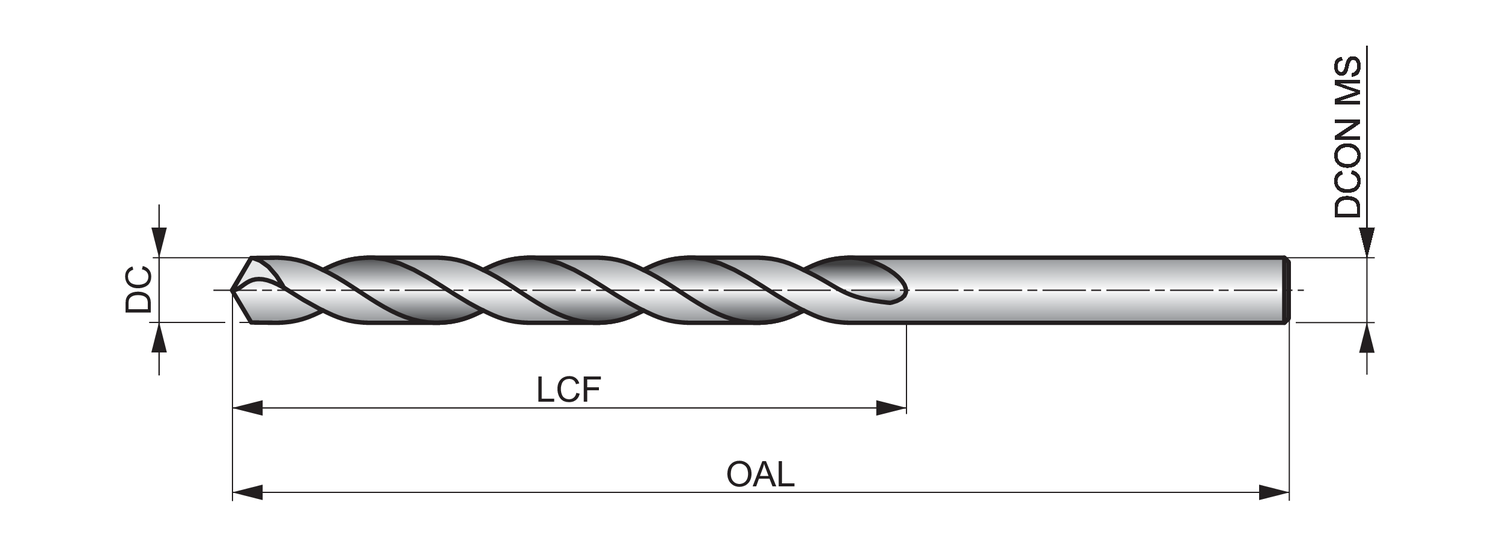

Connection diameter - inch (DCON MS)
0.7874
Connection diameter - millimeter (DCON MS)
20
Cutting diameter - inch (DC)
0.7874
Cutting diameter - millimeter (DC)
20
Hand (Cutting direction)
Right
Length chip flute - inch (LCF)
6.5354
Length chip flute - millimeter (LCF)
166
Material code (BMC)
HSS
Overall length - inch (OAL)
10
Overall length - millimeter (OAL)
254
Point Angle (SIG)
118
Shank
Cylindrical shank
Spiral form
Standard Spiral
Usable length (ULDR)
6
5ATL taper length series drill bits are recommended for drilling deep holes and for applications where increased reach is required. They are manufactured from premium High Speed Steel and can be used for drilling many materials including steels, stainless steel and aluminum.
The 118 degree conventional point means the tools are easy to re-grind for economy, whilst the bright finish means you will get a clean and accurate hole as workpiece material is prevented from sticking to the cutting surfaces.
5ATL drill bits are available in many sizes from 1 mm to 31 mm.
