R51FS7/16 5998920 Taper Length Drill Long ANSI 7/16 inch
MODEL 5998920
This product has a minimum order quantity of (6 minimum) This is the minimum order quantity available when purchasing this product.
$29.12 Each
Prices are subject to change
FREE SHIPPING ON ORDERS OVER $100
Select Quantity(6 minimum)
Typically Ships in: 1 day
Returnable: Yes
ApplicationAngleIcon_DICT_SEL
Drill point 118°
Basic Standard
ANSI
Coating
Bright
Connection (shank) description
Cylindrical shank

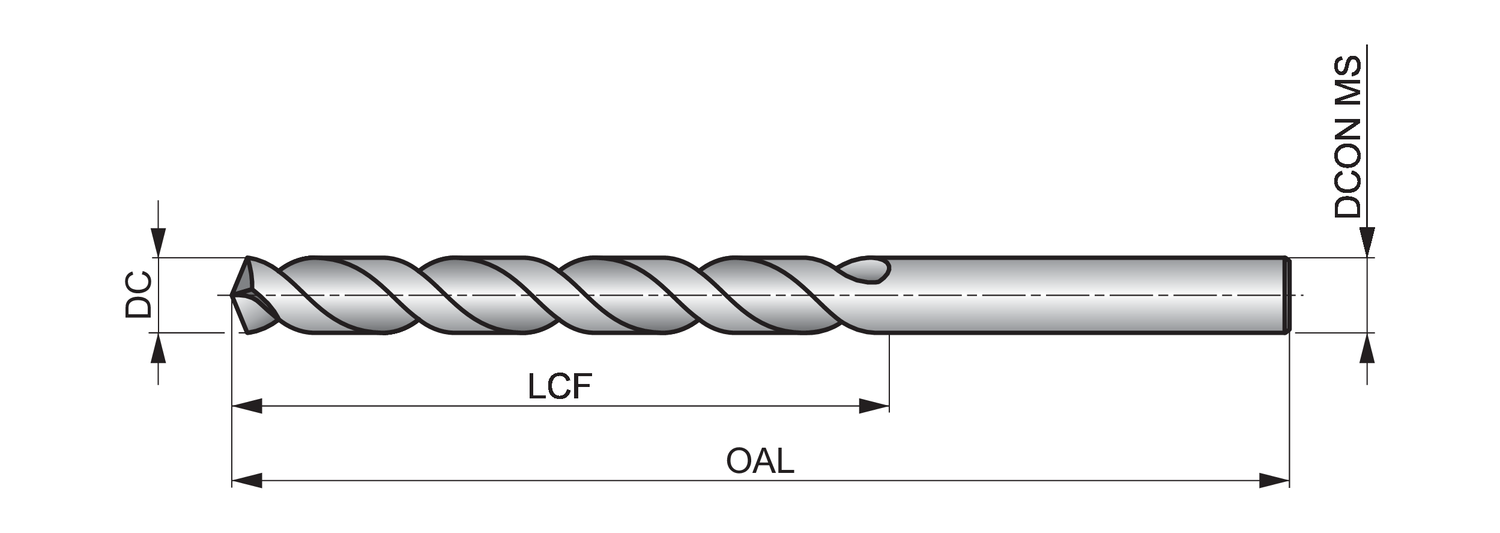

Cutting diameter - fractional inch (DC)
7/16
Cutting diameter - inch (DC)
0.4375
Cutting diameter - millimeter (DC)
11.11
Drill Length
Long
Hand (Cutting direction)
Right
Length chip flute - fractional inch (LCF)
4.5/8
Length chip flute - inch (LCF)
4.625
Material
HSS
Overall length - fractional inch (OAL)
7.1/4
Overall length - inch (OAL)
7.25
Overall length - millimeter (OAL)
184.15
Point Angle (SIG)
118
Spiral form
Quick Spiral
Surface treatement
Original surface
Usable length (ULDR)
6
R51FS taper length drill bits are manufactured to ANSI standard.
The special high helix taper length series drills are recommended for applications where a longer reach is required, and for drilling deeper holes, and come in a great range of fractional sizes starting at 1/64 inch, all the way up to 1/2 inch. They have a 118 degree strong, conventional point which is easy to re-grind, and a bright finish to stop workpiece material from sticking to the cutting surfaces of the drill so you get clean, accurate holes.
Made from High Speed steel, R51FS taper length drills can be used to drill many materials including steel, aluminum and stainless steel.
