20927/32 6001115 Oxide 118° Taper Shank Jobber Drill 27/32 inch
MODEL 6001115
$109.72 Each
Prices are subject to change
FREE SHIPPING ON ORDERS OVER $100
Select Quantity
Typically Ships in: 1 day
Returnable: Yes
ApplicationAngleIcon_DICT_SEL
Drill point 118°
Basic Standard
ANSI
Coating
Steam Tempered
Connection (shank) description
Morse Taper Shank

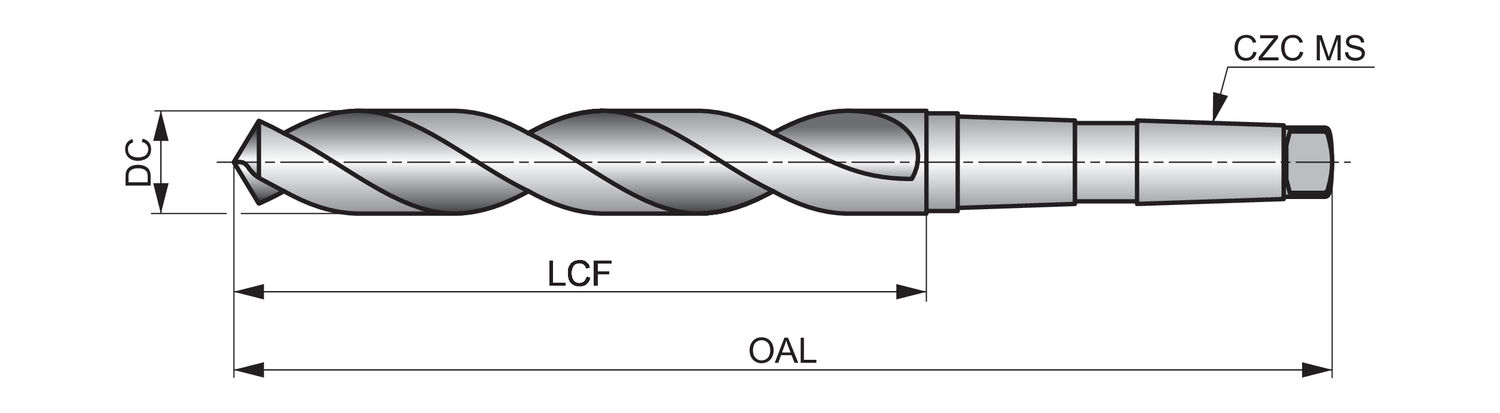

Connection size code machine side (CZC MS)
3
Cutting diameter - fractional inch (DC)
27/32
Cutting diameter - inch (DC)
0.8438
Cutting diameter - millimeter (DC)
21.43
Drill Length
Jobber
Hand (Cutting direction)
Right
Length chip flute - fractional inch (LCF)
6.1/8
Length chip flute - inch (LCF)
6.125
Material
HSS
Overall length - fractional inch (OAL)
10.3/4
Overall length - millimeter (OAL)
273.05
Point Angle (SIG)
118
Spiral form
Standard Spiral
Surface treatement
Steam Tempered
Usable length (ULDR)
4
The strong, conventional 118 degree point on 209 drill bits makes them easy to regrind. They are manufactured from premium High Speed Steel so can be used to drill a number of different materials including stainless steel, aluminum and steels. They are available in many fractional sizes from 1/8” to 2 inches, and can be used in machine applications where the drill is held directly in the spindle, making them a very versatile choice.
209 taper shank drill bits also have a steam oxide finish to prevent workpiece material from sticking to the cutting edges of the drill, so you get a clean and accurate result.
