5ATS5.5 6001267 Taper Shank Drill 5.50 mm
MODEL 6001267
$26.71 Each
Prices are subject to change
FREE SHIPPING ON ORDERS OVER $100
Select Quantity
Typically Ships in: 1 day
Returnable: Yes
ApplicationAngleIcon_DICT_SEL
Drill point 118°
Basic Standard
DIN 345
Coating
Steam Tempered
Connection (shank) description
Morse Taper Shank
Connection size code machine side (CZC MS)
1

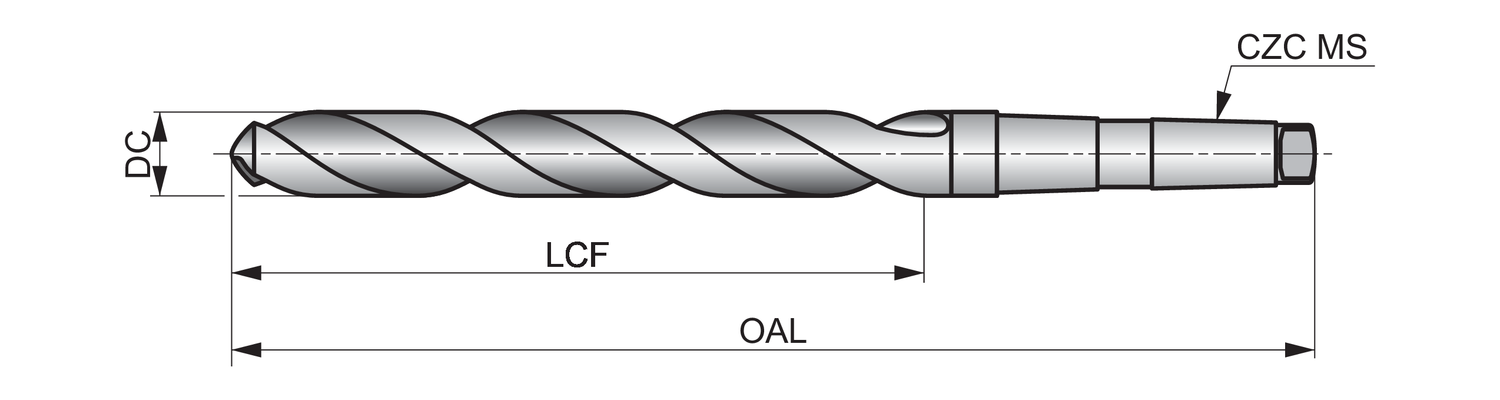

Cutting diameter - inch (DC)
0.2165
Cutting diameter - millimeter (DC)
5.5
Drill Length
Jobber
Hand (Cutting direction)
Right
Length chip flute - millimeter (LCF)
57
Length chip flute - inch (LCF)
2.2441
Material
HSS
Overall length - millimeter (OAL)
138
Overall length - inch (OAL)
5.4331
Point Angle (SIG)
118
Spiral form
Standard Spiral
Surface treatement
Steam Tempered
Usable length (ULDR)
4
5ATS taper shank drill bits are very versatile and can be used in machine applications where the drill is held in the spindle and are available in many sizes from 5 mm to 50 mm. They have a strong 118 degree conventional point so can easily be re-ground for using again and again.
Manufactured from premium High Speed steel, they can be used for drilling many materials including steels, aluminum and stainless steel, whilst the steam oxide finish ensures a clean and accurate hole by preventing the workpiece material from sticking to the cutting surfaces.
