181317/32 5999920 118° Extra Length Drill ANSI 17/32 inch
MODEL 5999920
$141.53 Each
Prices are subject to change
FREE SHIPPING ON ORDERS OVER $100
Select Quantity
Typically Ships in: 1 day
Returnable: Yes
Application Material
K - Cast iron, N - Non-ferrous metals, P - Steel and cast steel
ApplicationAngleIcon_DICT_SEL
Drill point 118°
Basic Standard
ANSI
Coating
Bright
Connection (shank) description
Cylindrical shank

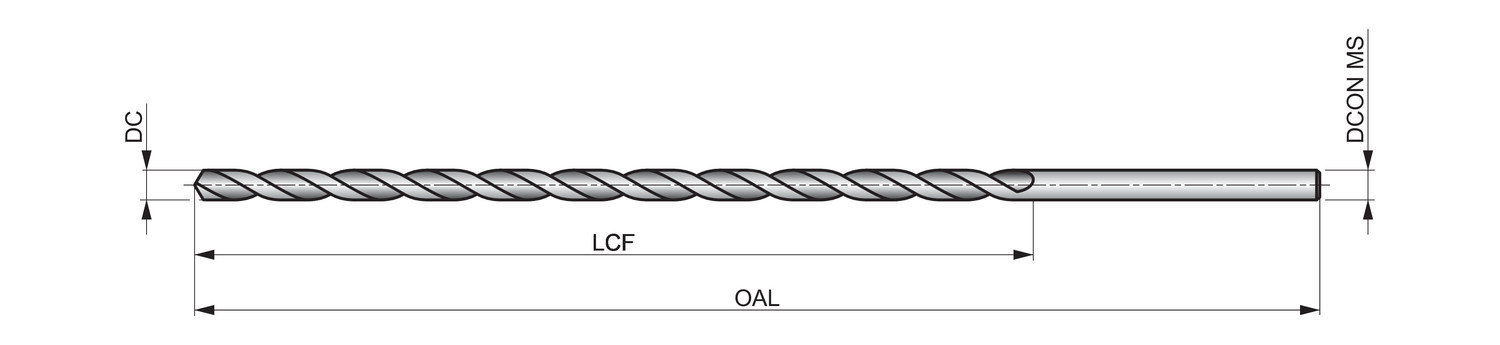

Cutting diameter - fractional inch (DC)
17/32"""
Cutting diameter - inch (DC)
0.5313
Cutting diameter - millimeter (DC)
13.5
Drill Length
XL
Hand (Cutting direction)
Right
Length chip flute - fractional inch (LCF)
13"
Material
HSS
Overall length - fractional inch (OAL)
18
Overall length - millimeter (OAL)
457.2
Point Angle (SIG)
118
Spiral form
Standard Spiral
Surface treatement
Original surface
Usable length (ULDR)
15
Part of the extra length series recommended for drilling deep holes and for applications where increased reach is needed, 1813 drill bits are available in a range of fractional sizes from 1/4" to 1 inch.
The premium High Speed Steel used in manufacture means the drills are suitable for drilling many materials, including stainless steel, steels and aluminum.
With a 118 degree conventional point providing strength and easy to regrinding.
1831 drill bits also come with a bright finish which prevents workpiece material from sticking to the cutting edges of the tool, so you get a clean and accurate result.
