M40CO21/32 5995940 Bronze 135° Stub Drill ANSI 21/32 inch
MODEL 5995940
$76.89 Each
Prices are subject to change
FREE SHIPPING ON ORDERS OVER $100
Select Quantity
Typically Ships in: 1 day
Returnable: Yes
California Prop 65 warningApplicationAngleIcon_DICT_SEL
Drill point 135°
Basic Standard
ANSI
Coating
Bronze

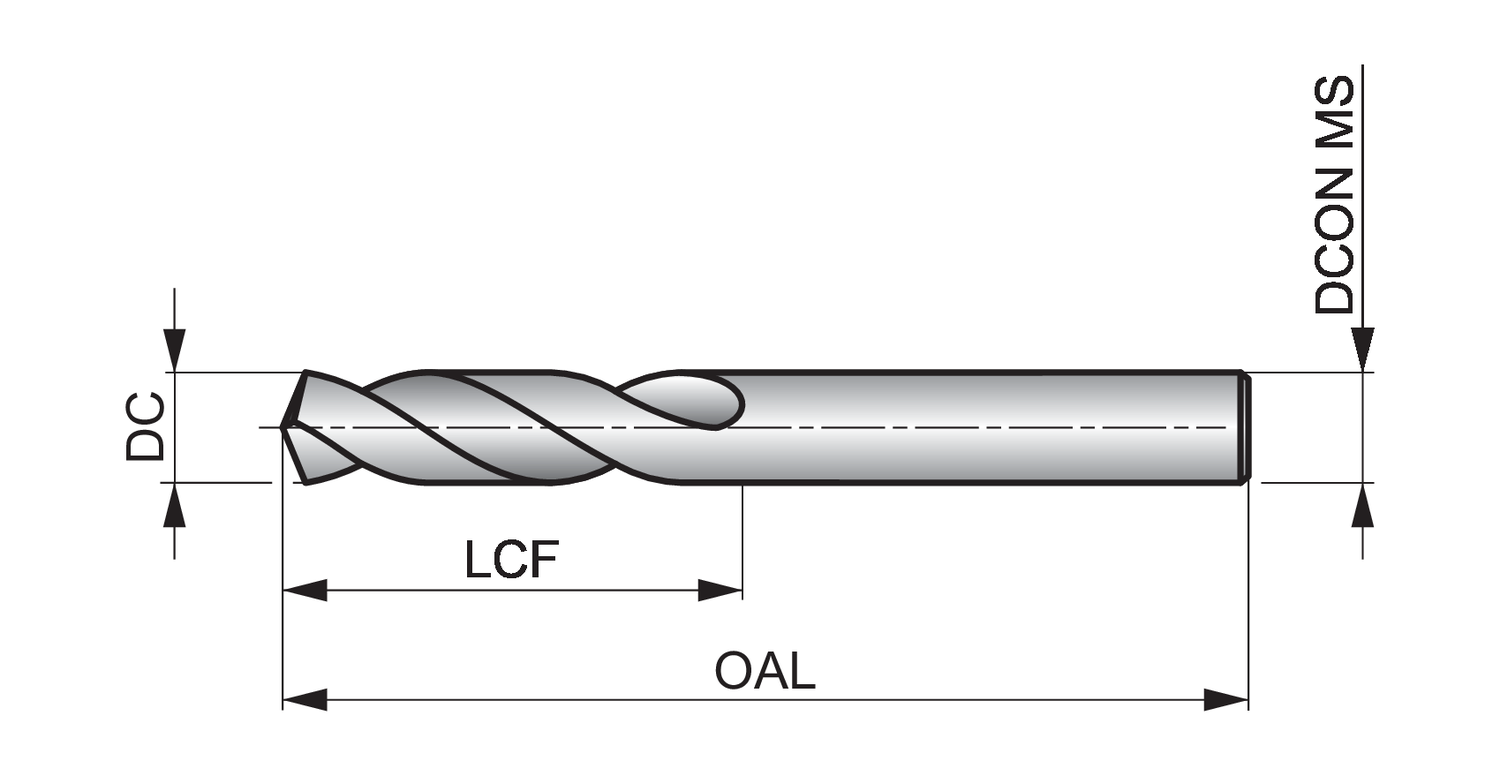

Cutting diameter - fractional inch (DC)
21/32
Cutting diameter - inch (DC)
0.6563
Cutting diameter - millimeter (DC)
16.67
Hand (Cutting direction)
Right
Length chip flute - fractional inch (LCF)
2.7/8
Length chip flute - inch (LCF)
2.875
Material
HSS-E
Overall length - fractional inch (OAL)
4.1/2
Overall length - millimeter (OAL)
114.3
Point Angle (SIG)
135
Shank
Cylindrical shank
Usable length (ULDR)
2.5
M40CO screw machine length drill bits are of a heavy duty design, recommended for use when drilling difficult materials and applications. They are manufactured from High Speed cobalt, suitable for drilling hard materials including tool steel, and have a bronze oxide finish to stop workpiece material from sticking to the cutting surfaces of the tool, so you get a more accurate hole.
The 135 degree split point is an aid to self-centering, so no drill wander over the workpiece surface, and reduces the force needed to drill down.
M40CO drill bits are available in fractional sizes from 1/16” to 3/4” in 1/64” increments.
