Precision Twist Drill M52CON19, part number 5996431, #19 (0.166") HSS-E cobalt heavy duty jobber drill with bronze finish and 135° point. ANSI standard, right-hand cut, cylindrical shank, 3-3/8" flute length, 5-3/4" overall length. Steam tempered surface treatment for improved wear resistance in steel, stainless steel, cast iron, and high-temperature alloys.
MODEL 5996431
This product has a minimum order quantity of (12 minimum) This is the minimum order quantity available when purchasing this product.
$20.95 Each
Prices are subject to change
FREE SHIPPING ON ORDERS OVER $100
Select Quantity(12 minimum)
Typically Ships in: 1 day
Returnable: Yes
California Prop 65 warningApplicationAngleIcon_DICT_SEL
Drill point 135°
Basic Standard
ANSI
Coating
Bronze
Connection (shank) description
Cylindrical shank

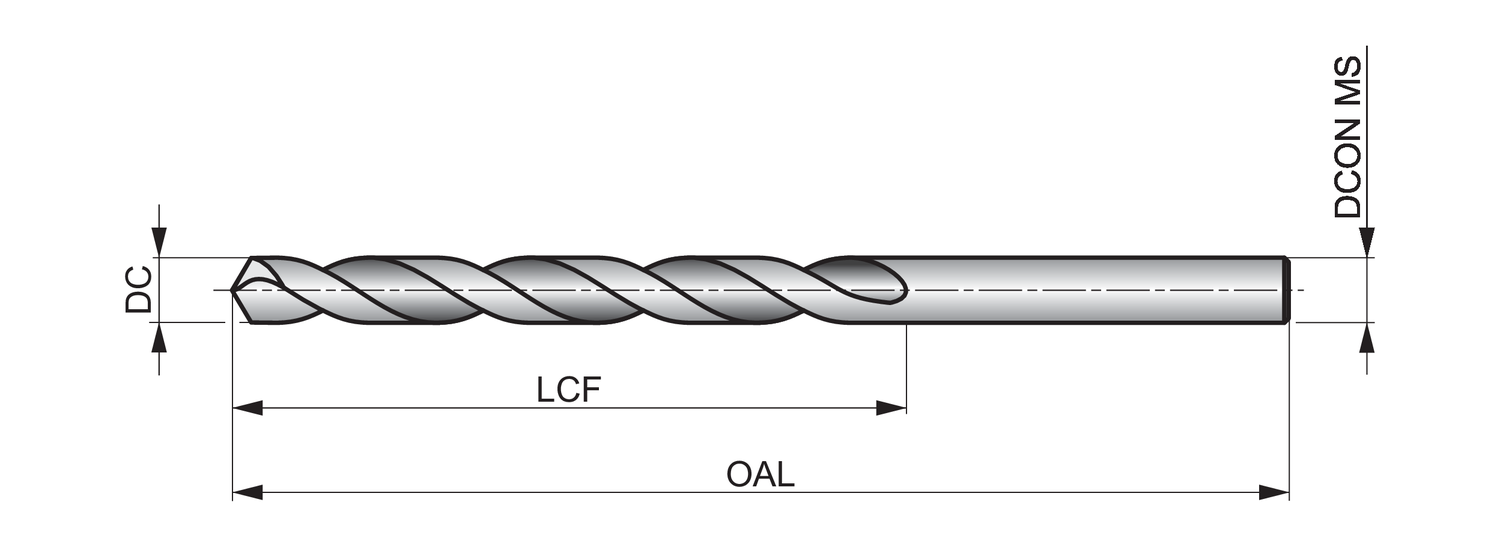

Cutting diameter (wire gauge size) (DC)
N19
Cutting diameter - inch (DC)
0.166
Cutting diameter - millimeter (DC)
4.22
Drill Length
Long
Hand (Cutting direction)
Right
Length chip flute - fractional inch (LCF)
3.3/8
Length chip flute - inch (LCF)
3.375
Material
HSS-E
Overall length - fractional inch (OAL)
5.3/4
Overall length - inch (OAL)
5.75
Overall length - millimeter (OAL)
146.05
Point Angle (SIG)
135
Spiral form
Standard Spiral
Surface treatement
Steam Tempered
Usable length (ULDR)
6
M52CO taper length wire gauge drill bits are manufactured from premium High Sped cobalt for drilling hard materials including tool steel.
