SPL-1201/2 6000002 120° Taper Length Spotting Drill Long 1/2 inch
MODEL 6000002
$113.94 Each
Prices are subject to change
FREE SHIPPING ON ORDERS OVER $100
Select Quantity
Typically Ships in: 1 day
Returnable: Yes
ApplicationAngleIcon_DICT_SEL
Spotting 120°
Basic Standard
Precision
Coating
Bright

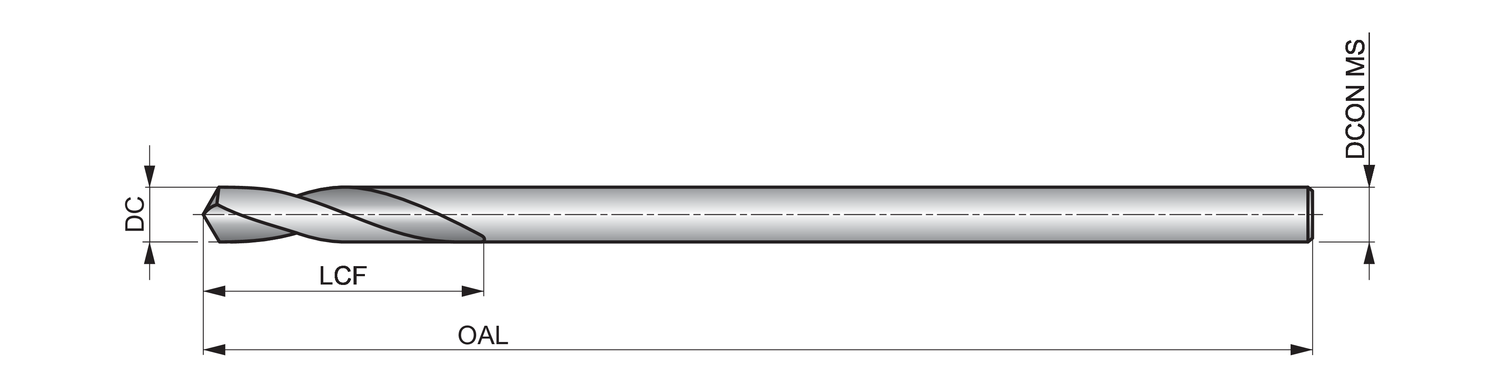

Cutting diameter - fractional inch (DC)
1/2
Cutting diameter - millimeter (DC)
12.7
Cutting Diameter Inch Decimal
0.5
Hand (Cutting direction)
Right
Length chip flute - fractional inch (LCF)
1.3/8
Length chip flute - inch (LCF)
1.375
Material
HSS
Overall length - fractional inch (OAL)
8"
Overall length - inch (OAL)
8
Overall length - millimeter (OAL)
203.2
Point Angle (SIG)
120
Shank
Cylindrical shank
Spiral form
Standard Spiral
Usable length (ULDR)
1
SPL-120 High Speed Steel spotting drills have a 120 degree conventional point designed for spotting holes including a 120 degree chamfer.
The long length improves centering and accuracy where you need increased reach and the point produces an accurate chamfer to accommodate standard screws.
With a bright finish for more accuracy by preventing workpiece material from sticking to the cutting surfaces of the tool, SPL-120 spotting drills are very versatile and can be used for drilling most common materials including steel, stainless steel, aluminum and cast iron.
