SPS-1201/4 6000072 120° Spotting Drill Short 1/4 inch
MODEL 6000072
$43.89 Each
Prices are subject to change
FREE SHIPPING ON ORDERS OVER $100
Select Quantity
Typically Ships in: 1 day
Returnable: Yes
ApplicationAngleIcon_DICT_SEL
Spotting 120°
Basic Standard
Precision
Coating
Bright

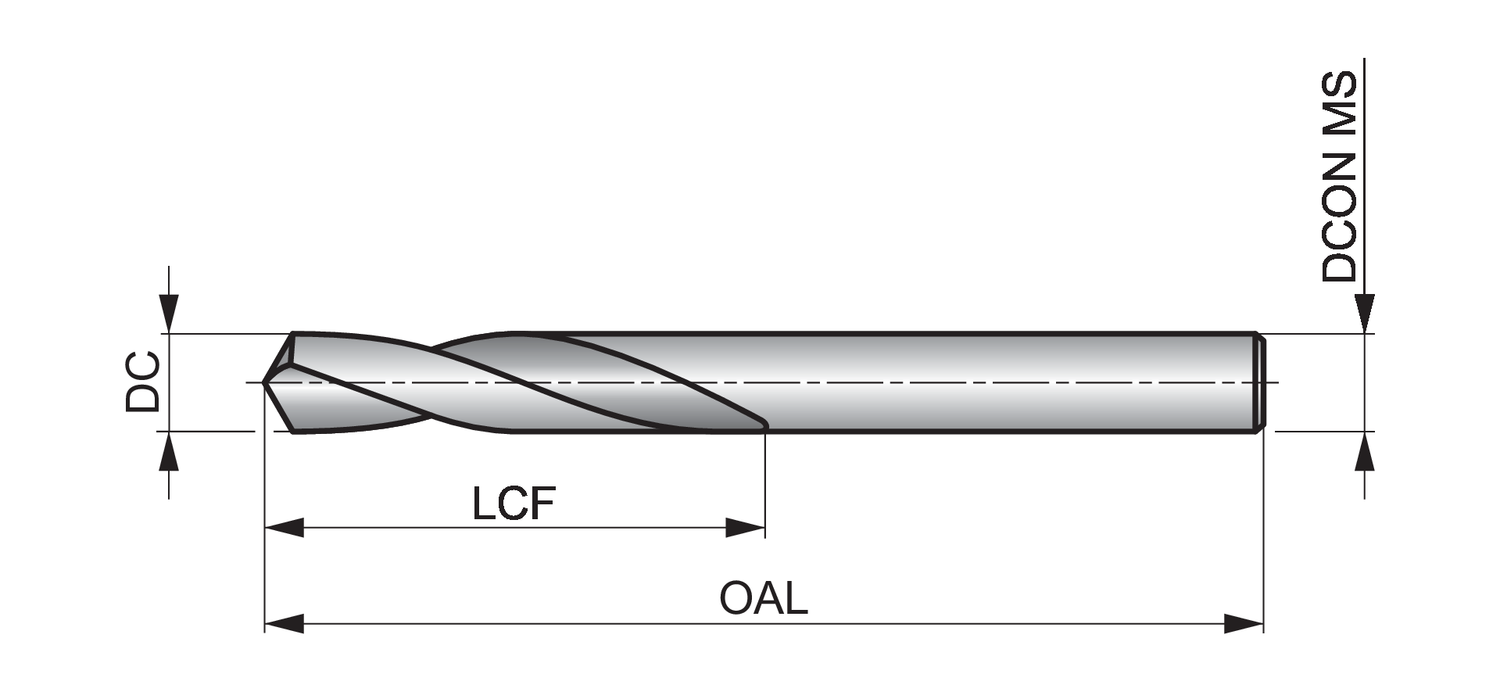

Cutting diameter - fractional inch (DC)
1/4
Cutting diameter - millimeter (DC)
6.35
Cutting Diameter Inch Decimal
0.25
Hand (Cutting direction)
Right
Length chip flute - fractional inch (LCF)
3/4
Length chip flute - inch (LCF)
0.75
Material
HSS
Overall length - fractional inch (OAL)
2.1/2
Overall length - inch (OAL)
2.5
Overall length - millimeter (OAL)
63.5
Point Angle (SIG)
120
Shank
Cylindrical shank
Spiral form
Standard Spiral
Usable length (ULDR)
1
The short, rigid design of the SPS-120 High Speed Steel spotting drill improves rigidity and accuracy.
The accurate 120 degree conventional point for spotting holes, including a 120 degree chamfer, produces accurate chamfers to take standard screws.
With a bright finish for further accuracy to prevent workpiece material from sticking to the cutting edges of the tool, SPS-120 spotting drills can be used for drilling most materials, including stainless steel, cast iron, aluminum and steel.
