SPS-1203/8 6000078 120° Spotting Drill Short 3/8 inch
MODEL 6000078
$47.19 Each
Prices are subject to change
FREE SHIPPING ON ORDERS OVER $100
Select Quantity
Typically Ships in: 1 day
Returnable: Yes
ApplicationAngleIcon_DICT_SEL
Spotting 120°
Basic Standard
Precision
Coating
Bright

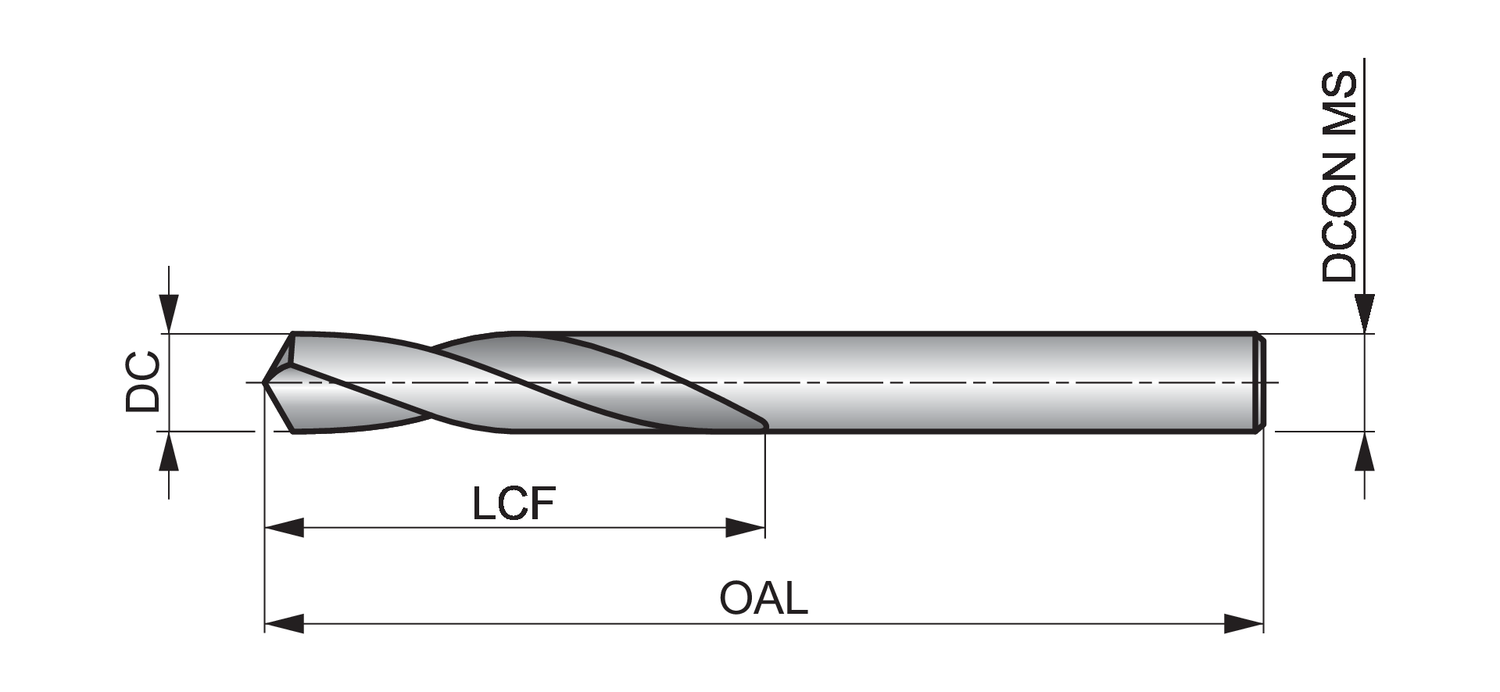

Cutting diameter - fractional inch (DC)
3/8
Cutting diameter - millimeter (DC)
9.53
Cutting Diameter Inch Decimal
0.375
Hand (Cutting direction)
Right
Length chip flute - fractional inch (LCF)
1.1/8
Length chip flute - inch (LCF)
1.125
Material
HSS
Overall length - fractional inch (OAL)
3.1/8
Overall length - inch (OAL)
3.125
Overall length - millimeter (OAL)
79.38
Point Angle (SIG)
120
Shank
Cylindrical shank
Spiral form
Standard Spiral
Usable length (ULDR)
1
The short, rigid design of the SPS-120 High Speed Steel spotting drill improves rigidity and accuracy.
The accurate 120 degree conventional point for spotting holes, including a 120 degree chamfer, produces accurate chamfers to take standard screws.
With a bright finish for further accuracy to prevent workpiece material from sticking to the cutting edges of the tool, SPS-120 spotting drills can be used for drilling most materials, including stainless steel, cast iron, aluminum and steel.
