SPSG-1203/8 6000127 120° Spotting Drill Short 3/8 inch
MODEL 6000127
$59.90 Each
Prices are subject to change
FREE SHIPPING ON ORDERS OVER $100
Select Quantity
Typically Ships in: 1 day
Returnable: Yes
ApplicationAngleIcon_DICT_SEL
Spotting 120°
Basic Standard
Precision
Coating
TiN
Coating property (CTP)
1

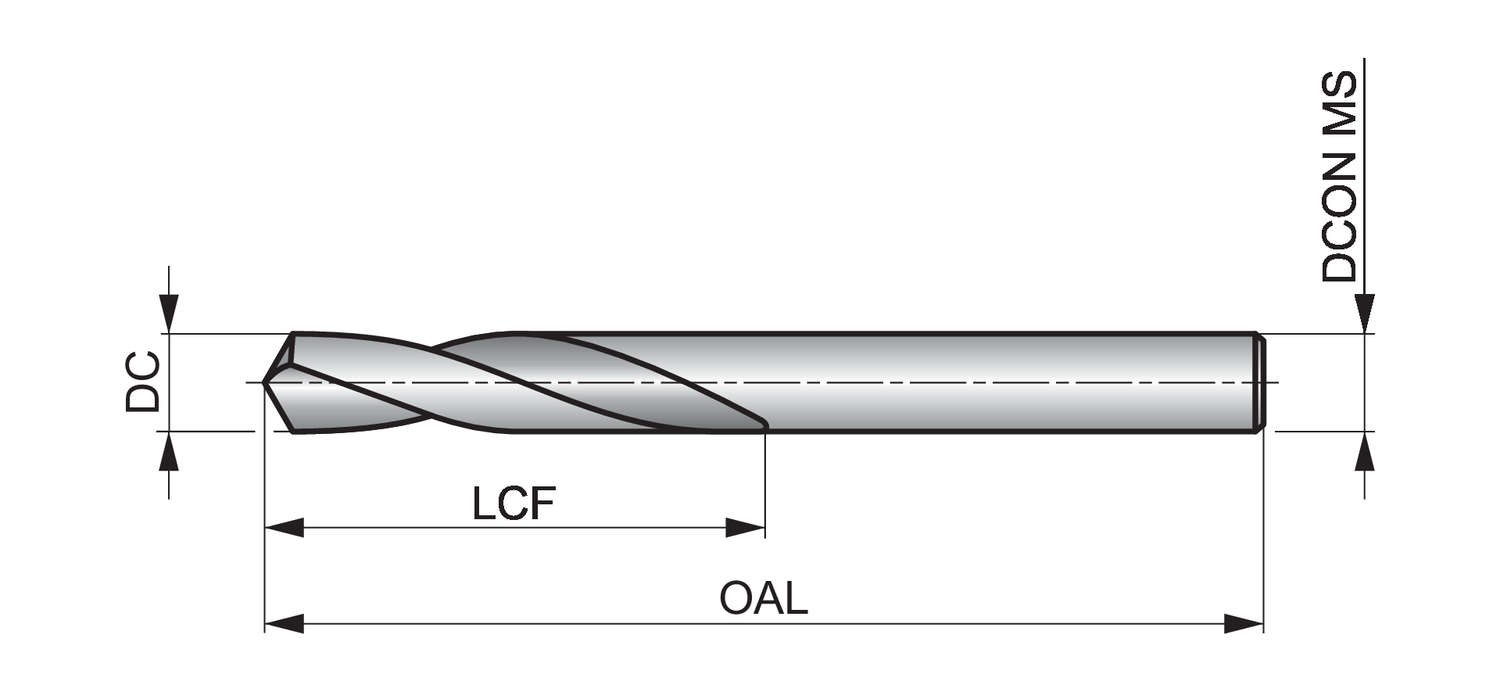

Cutting diameter - fractional inch (DC)
3/8
Cutting diameter - millimeter (DC)
9.53
Cutting Diameter Inch Decimal
0.375
Hand (Cutting direction)
Right
Length chip flute - fractional inch (LCF)
1.1/8
Length chip flute - inch (LCF)
1.125
Material
HSS
Overall length - fractional inch (OAL)
3.1/8
Overall length - inch (OAL)
3.125
Overall length - millimeter (OAL)
79.38
Point Angle (SIG)
120
Shank
Cylindrical shank
Spiral form
Standard Spiral
Usable length (ULDR)
1
SPSG-120 High Speed Steel spotting drills have a titanium nitride coating which extends the life of the drill and improves performance when drilling harder materials, whilst the short, rigid design improves accuracy and centering.
The 120 degree conventional point is designed for spotting holes with an accurate 120 degree chamfer, accommodating standard screws.
Suitable for drilling steel, cast iron, aluminum, stainless steel and most other common materials, SPSG-120 spotting drills are a great choice.
