SPSG-901/4 6000142 90° Spotting Drill Short 1/4 inch
MODEL 6000142
$47.74 Each
Prices are subject to change
FREE SHIPPING ON ORDERS OVER $100
Select Quantity
Typically Ships in: 1 day
Returnable: Yes
ApplicationAngleIcon_DICT_SEL
Spotting 90°
Basic Standard
Precision
Coating
TiN
Coating property (CTP)
1

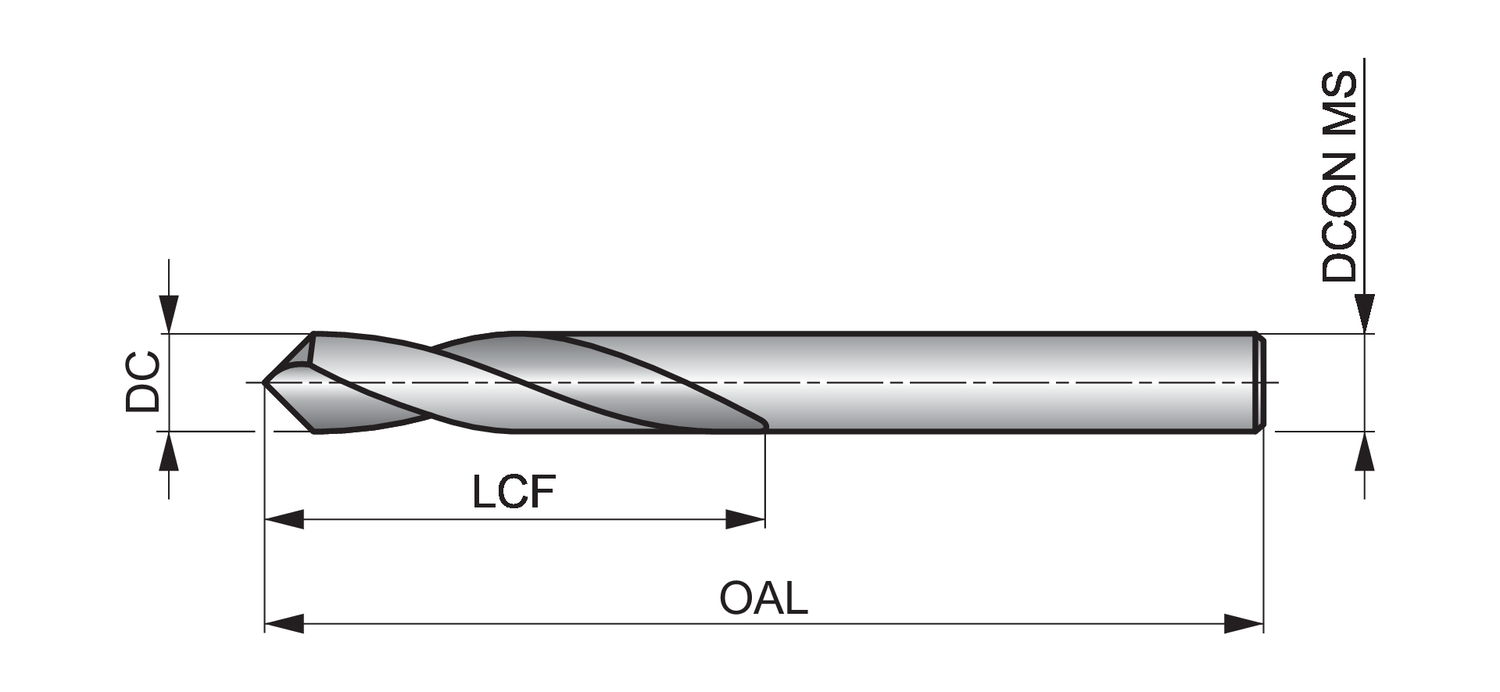

Cutting diameter - fractional inch (DC)
1/4
Cutting diameter - millimeter (DC)
6.35
Cutting Diameter Inch Decimal
0.25
Hand (Cutting direction)
Right
Length chip flute - fractional inch (LCF)
3/4
Length chip flute - inch (LCF)
0.75
Material
HSS
Overall length - fractional inch (OAL)
2.1/2
Overall length - inch (OAL)
2.5
Overall length - millimeter (OAL)
63.5
Point Angle (SIG)
90
Shank
Cylindrical shank
Spiral form
Standard Spiral
Usable length (ULDR)
1
SPSG-90 spotting drills have a 90 degree conventional point including a 90 degrees accurate chamfer to accommodate standard screws, whilst the short, rigid design improves centering and accuracy.
The drills are suitable for use in many common materials including steel, stainless steel, aluminum and cast iron and have a titanium nitride coating to increase the service life of the drill and improve performance when used to drill hard materials.
