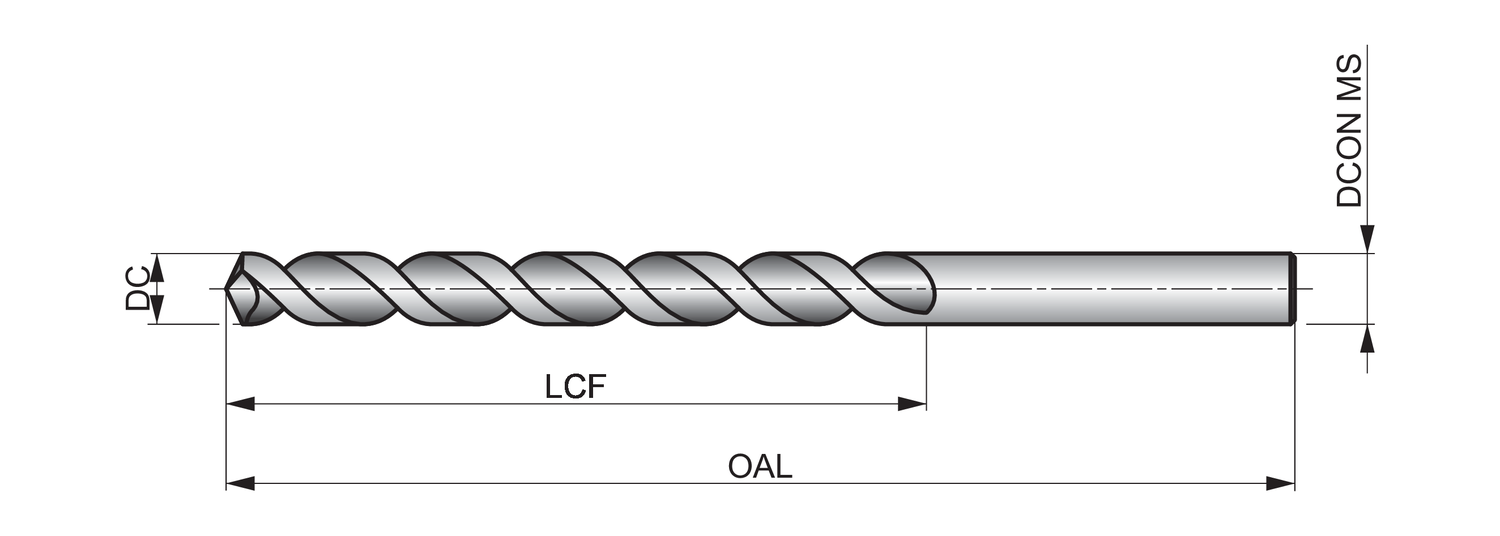

Image for Illustration purposes only. Actual product may vary
QC21PM6.8 5996914 Jobber Drill DIN 338 6.80 mm
MODEL 5996914
This product has a minimum order quantity of (12 minimum) This is the minimum order quantity available when purchasing this product.
$11.62 Each
Prices are subject to change
FREE SHIPPING ON ORDERS OVER $100
Select Quantity(12 minimum)
Typically Ships in: 1 day
Returnable: Yes
ApplicationAngleIcon_DICT_SEL
Drill point 135°
Basic Standard
DIN 338
Coating
Bright
Connection (shank) description
Cylindrical shank
Connection diameter - millimeter (DCON MS)
6.8
Cutting diameter - inch (DC)
0.2677
Cutting diameter - millimeter (DC)
6.8
Drill Length
Jobber
Hand (Cutting direction)
Right
Length chip flute - millimeter (LCF)
69
Length chip flute - inch (LCF)
2.7165
Material
HSS
Overall length - millimeter (OAL)
109
Overall length - inch (OAL)
4.2913
Point Angle (SIG)
135
Spiral form
Quick Spiral
Surface treatement
Original surface
Usable length (ULDR)
4
QC21PM jobber drills have a 135 degree split point which helps with self-centering and reduces the amount of force needed to drill into the workpiece.
The premium High Speed steel used in manufacture means the tools are suitable for drilling a range of materials, including steels, stainless steel and aluminum, whilst the bright finish ensures clean and accurate holes by preventing workpiece material from sticking to the cutting edges of the tool.
Available in an extensive range of metric sizes from 1.50 mm to 17.50 mm, QC21PM jobber drills have a specially designed parabolic flute, enabling drilling deeper holes in a single pass.
