QC41P3/8 5997556 135° Stub Drill ANSI 3/8 inch
MODEL 5997556
This product has a minimum order quantity of (6 minimum) This is the minimum order quantity available when purchasing this product.
$18.45 Each
Prices are subject to change
FREE SHIPPING ON ORDERS OVER $100
Select Quantity(6 minimum)
Typically Ships in: 1 day
Returnable: Yes
ApplicationAngleIcon_DICT_SEL
Drill point 135°
Basic Standard
ANSI
Coating
Bright

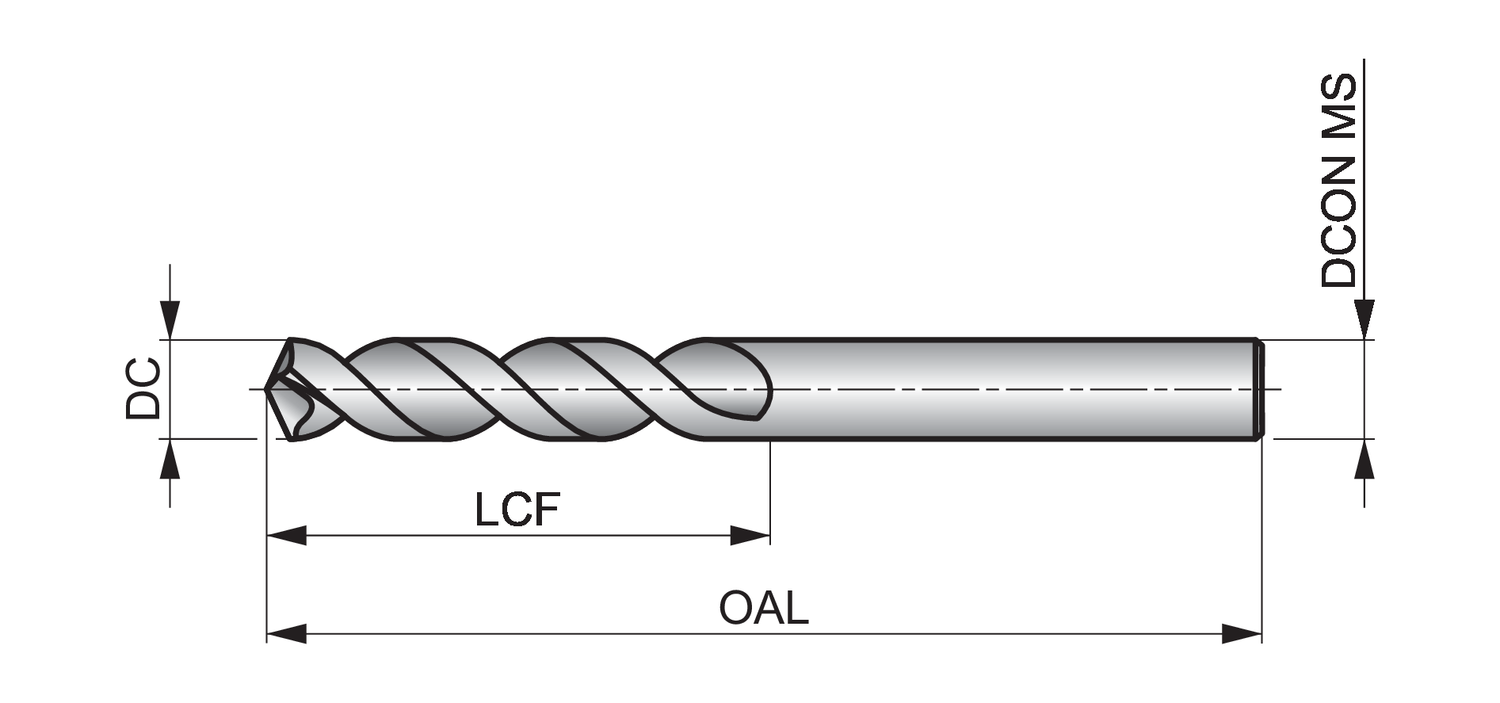

Cutting diameter - fractional inch (DC)
3/8
Cutting diameter - inch (DC)
0.375
Cutting diameter - millimeter (DC)
9.53
Hand (Cutting direction)
Right
Length chip flute - fractional inch (LCF)
1.13/16
Length chip flute - inch (LCF)
1.8125
Material
HSS
Overall length - fractional inch (OAL)
3.1/8
Overall length - millimeter (OAL)
79.38
Point Angle (SIG)
135
Shank
Cylindrical shank
Usable length (ULDR)
3
Manufactured from premium High Speed steel for drilling in a wide variety of materials including aluminum, steels and stainless steel, QC41P screw machine drills have a bright finish to prevent workpiece material from sticking to the cutting surfaces of the drill for a cleaner more accurate hole.
The special parabolic flute design enables drilling deeper holes in a single pass and the 135 degree split point helps with self-centering and reduces the push force required.
QC41P screw machine drills are available in both fractional and wire gauge diameters.
| Brand | Balax |
| Model | 11665-016 |
