QC41PN19 5997168 135° Stub Drill ANSI N19
MODEL 5997168
This product has a minimum order quantity of (12 minimum) This is the minimum order quantity available when purchasing this product.
$5.79 Each
Prices are subject to change
FREE SHIPPING ON ORDERS OVER $100
Select Quantity(12 minimum)
Typically Ships in: 1 day
Returnable: Yes
ApplicationAngleIcon_DICT_SEL
Drill point 135°
Basic Standard
ANSI
Coating
Bright

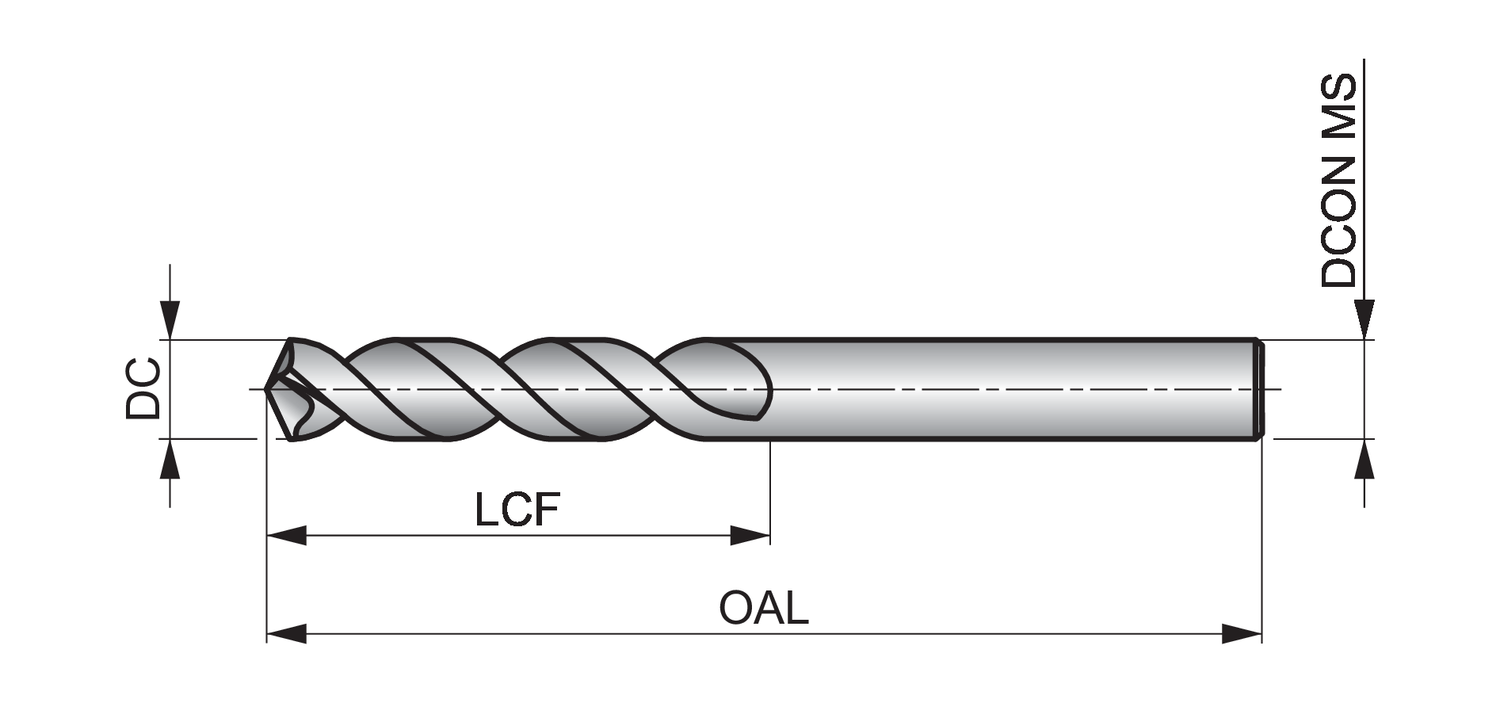

Cutting diameter (wire gauge size) (DC)
N19
Cutting diameter - inch (DC)
0.166
Cutting diameter - millimeter (DC)
4.22
Hand (Cutting direction)
Right
Length chip flute - fractional inch (LCF)
1.1/16
Length chip flute - inch (LCF)
1.0625
Material
HSS
Overall length - fractional inch (OAL)
2.1/8
Overall length - millimeter (OAL)
53.98
Point Angle (SIG)
135
Shank
Cylindrical shank
Usable length (ULDR)
3
Manufactured from premium High Speed steel for drilling in a wide variety of materials including aluminum, steels and stainless steel, QC41P screw machine drills have a bright finish to prevent workpiece material from sticking to the cutting surfaces of the drill for a cleaner more accurate hole.
The special parabolic flute design enables drilling deeper holes in a single pass and the 135 degree split point helps with self-centering and reduces the push force required.
QC41P screw machine drills are available in both fractional and wire gauge diameters.
| Brand | Drillco |
| Model | 450T29 |
