DS1421/8 7378069 142° Spotting Drill 1/8 inch
MODEL 7378069
$25.40 Each
Prices are subject to change
FREE SHIPPING ON ORDERS OVER $100
Select Quantity
Typically Ships in: 1 day
Returnable: Yes
California Prop 65 warningApplicationAngleIcon_DICT_SEL
Spotting 142°
Basic Standard
Precision
Coating
Bright

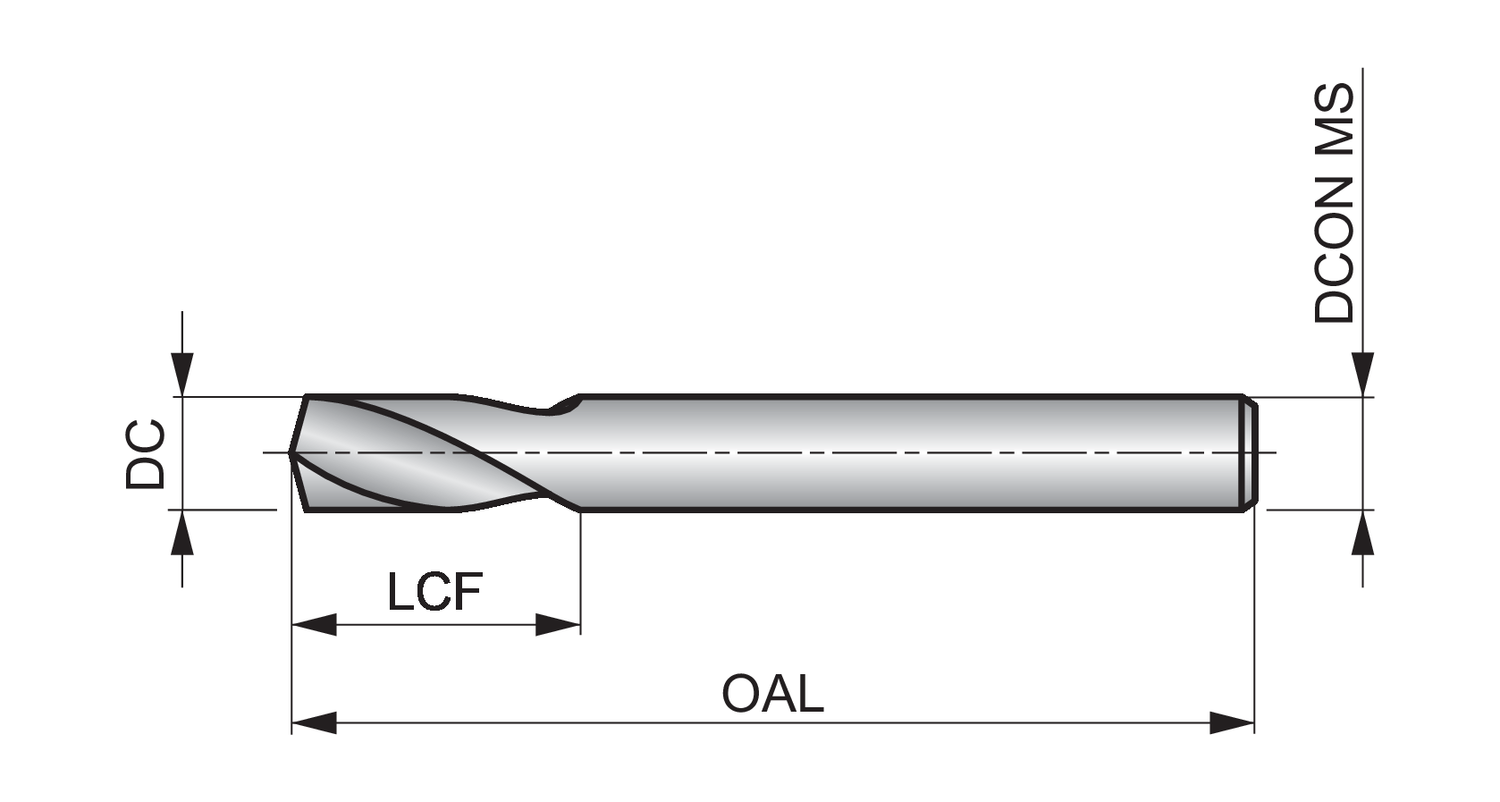

Cutting diameter - fractional inch (DC)
1/8
Cutting diameter - millimeter (DC)
3.18
Cutting Diameter Inch Decimal
0.125
Hand (Cutting direction)
Right
Length chip flute - fractional inch (LCF)
9/16
Length chip flute - inch (LCF)
0.5625
Material
Carbide
Overall length - fractional inch (OAL)
2"
Overall length - inch (OAL)
2
Overall length - millimeter (OAL)
38.1
Point Angle (SIG)
142
Shank
Cylindrical shank
Spiral form
Standard Spiral
Usable length (ULDR)
1
DS-142 spotting drills are manufactured from premium carbide and can be used in wide range of materials including stainless steel, steels and aluminum. They have a 142 degree point which helps with self-centering and reduces the push force needed to drill into the workpiece. They come in 6 different fractional sizes and have an accurate point angle to produce precision chamfers for standard screws, and a bright finish to give you clean, accurate holes by preventing workpiece material from sticking to the cutting edges of the drill.
